Discontinued

Garmin | SKU: GAR/010-01511-01

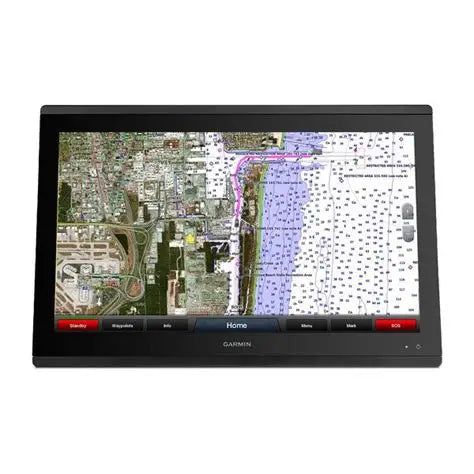

GPSmap 8622 (G3)

Name: GPSmap 8622 (G3)
Brand: Garmin
SKU: GAR/010-01511-01
Price: 10299.99 USD
Availability: OutOfStock

22" MFD w/ BlueChart G3

$10,299⁹⁹

Los gastos de envío se calcularán al momento de pagar.

DISCONTINUED

Limited To Stock Available

Discontinued:

Descripción

Especificaciones

Product Series

GPSmap 8000
MPN

010-01511-01
Physical

Dimensions: 20.8" x 13.8" x 2.8" (52.8 cm x 35.1 cm x 7.1 cm)
Weight: 15.63 lbs (7.09 kg)
Mounting

Type: Flush or Flat
Power

Input: 10-35v DC
Typical Draw: 3.9 A @ 12v
Max Draw: 4.9 A @ 12v
Screen

Touchscreen: Yes
Type: FHD, IPS
Size: 21.5"
Resolution: 1920 x 1080
Sonar

No (Requires Sonar Module or Networked XSV Unit)
Connectivity

Built-In GPS: No
SD Cards: No
Wireless: WiFi, Bluetooth, ANT+
Network: Marine Network Large (4)
NMEA 0183: Yes (Requires Accessory)
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Sonar: None
Built-In Chart

Garmin BlueChart G3
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

GPSmap 8622
Trim Piece Snap Covers
Gps 24Xd Nmea 2000 (With Pole Mount, Flush Mount And Under Deck Mount Adapters)
Protective Cover
Flush Mount Hardware
Power Cable
NMEA 2000 2 M BackboneDrop Cable
NMEA 2000 6 M Backbone Cable
NMEA 2000 Power Cable
NMEA 2

Package Dimensions:

Support/Warranty

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
