Garmin  |  SKU: GAR/010-02091-00  |  Código de barras: 753759213404

GPSmap 8410 Multi-Function Display

10" MFD

$2,79999
Options
GPSmap 8410 Multi-Function Display
GPSmap 8410 Multi-Function Display
10" MFD
GPSmap 8410xsv Multi-Function Display
GPSmap 8410xsv Multi-Function Display
10" MFD w/ Built-In Sonar
GPSmap 8610 Multi-Function Display
GPSmap 8610 Multi-Function Display
10" MFD w/ Navionics+
Pantalla multifunción GPSmap 8610 (cartografía Navionics+)
Pantalla multifunción GPSmap 8610 (cartografía Navionics+)
10" MFD w/ Built-In Sonar & Navionics+
GPSmap 8410 Multi-Function Display GPSmap 8410 Multi-Function Display 10" MFD GPSmap 8410xsv Multi-Function Display GPSmap 8410xsv Multi-Function Display 10" MFD w/ Built-In Sonar GPSmap 8610 Multi-Function Display GPSmap 8610 Multi-Function Display 10" MFD w/ Navionics+ Pantalla multifunción GPSmap 8610 (cartografía Navionics+) Pantalla multifunción GPSmap 8610 (cartografía Navionics+) 10" MFD w/ Built-In Sonar & Navionics+

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.

Easily build your marine system using the best of network connectivity.

See below and around your boat with built-in sonar capabilities (transducers sold separately).

From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.

With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

Especificaciones
  • Product Series
    GPSmap 8600
  • MPN
    010-02091-00
  • Physical
    Dimensions: 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)
    Weight: 5.2 lbs (2.4 kg)
  • Mounting
    Type: Bracket, Flush or Flat
    Cutout: 9 13/16" x 6 15/16" (250 mm x 176.7 mm)
  • Power
    Input: 10-32v DC
    Typical Draw: 1.5 A @ 12v
    Max Draw: 6.0 A @ 12v
  • Screen
    Touchscreen: Yes
    Type: WUXGA, IPS
    Size: 10.1"
    Resolution: 1920 x 1200
  • Sonar
    No (Requires Sonar Module or Networked XSV Unit)

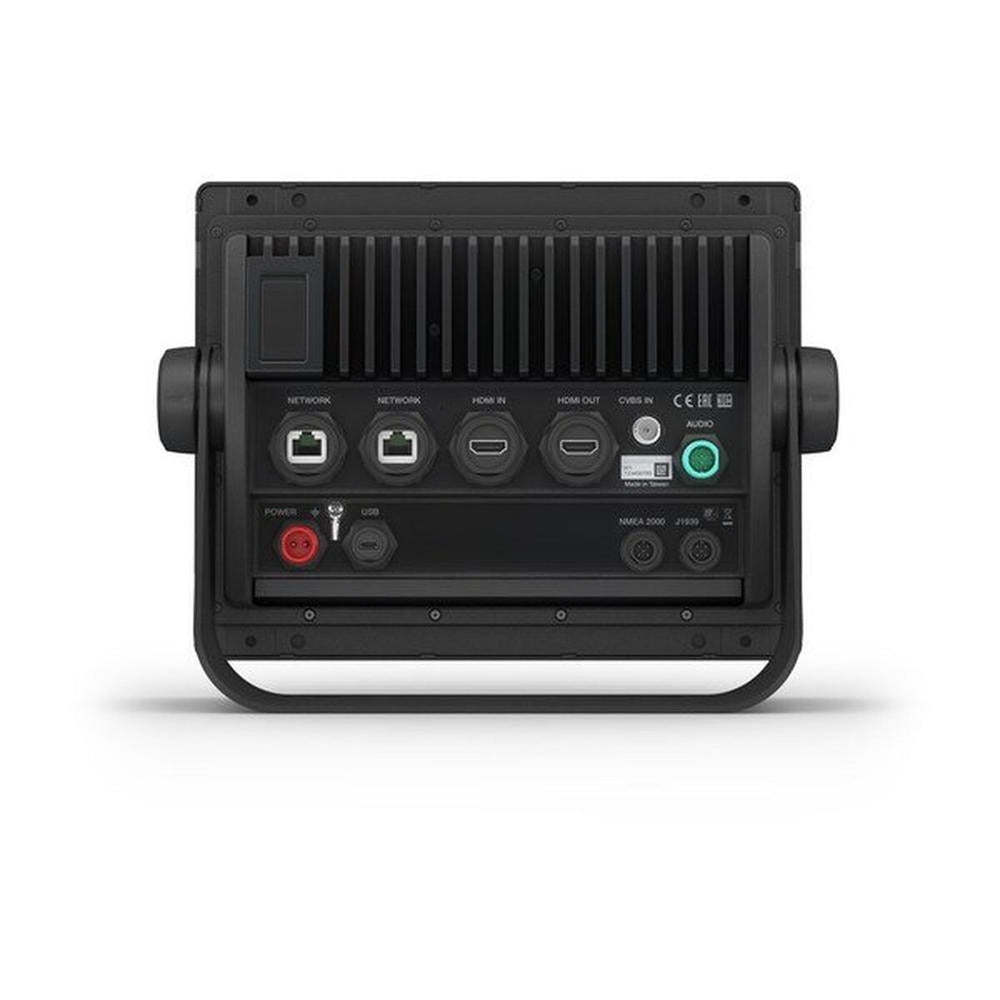

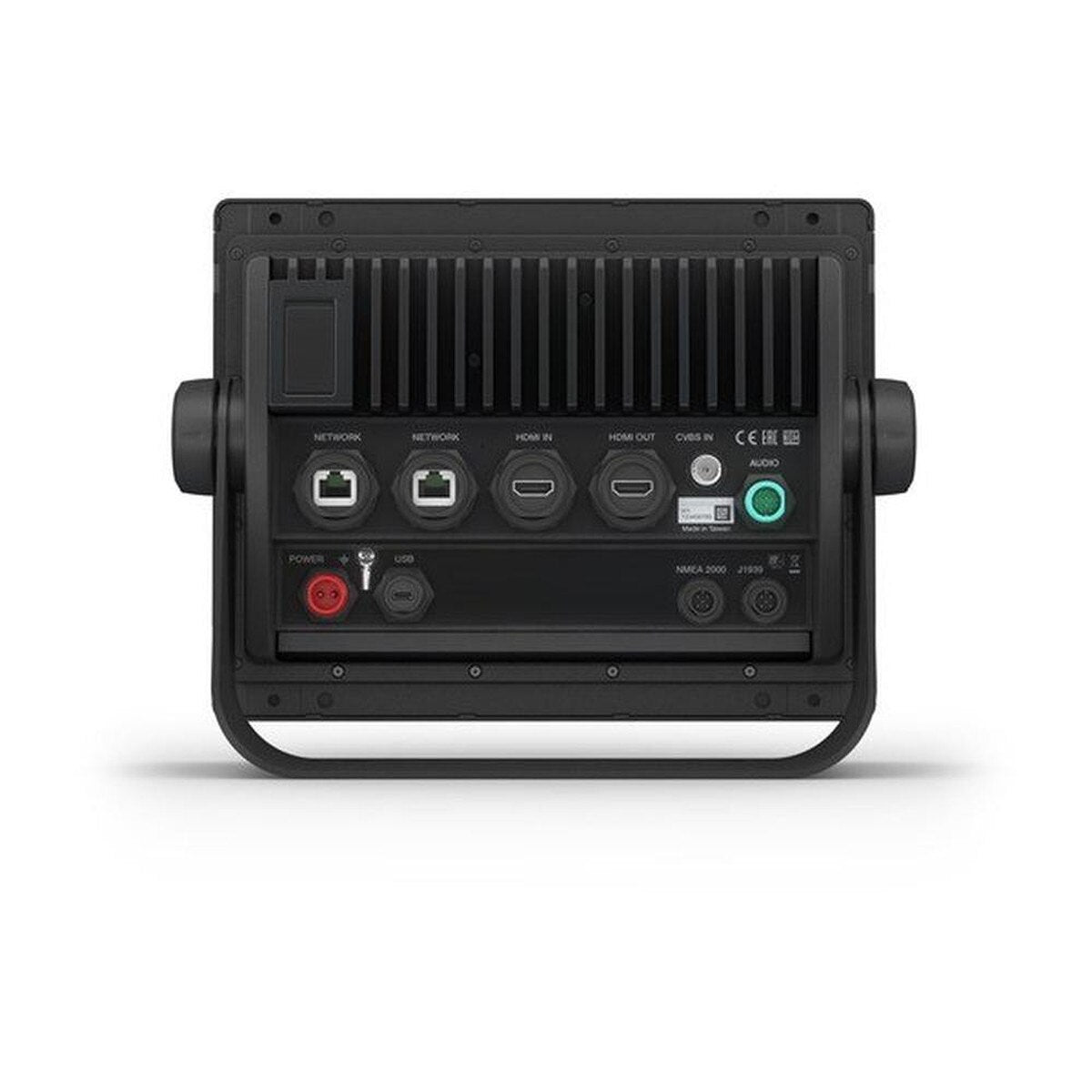

  • Connectivity
    Built-In GPS: Yes - 10 Hz
    SD Cards: Yes - microSD (2)
    Wireless: WiFi, Bluetooth, ANT+
    Network: Marine Network Large (2)
    NMEA 0183: Yes (Requires Accessory)
    NMEA 2000: Yes
    J1939: Yes
    Analog Video In: Yes
    HDMI In: Yes
    HDMI Out: Yes
    USB: Yes
    Sonar: No
  • Built-In Chart
    Basemap
  • IP Rating
    ipX7

Reseñas (0)

In The Box

In The Box:

GPSmap 8410
Power Cable
NMEA 2000 Drop Cable
NMEA 2000 T-Connector
Bail mount with knobs
Flush Mount Kit
Sun Cover
Trim Piece Snap Covers
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr
