Garmin | SKU: GAR/010-02093-51 | Código de barras: 753759285449

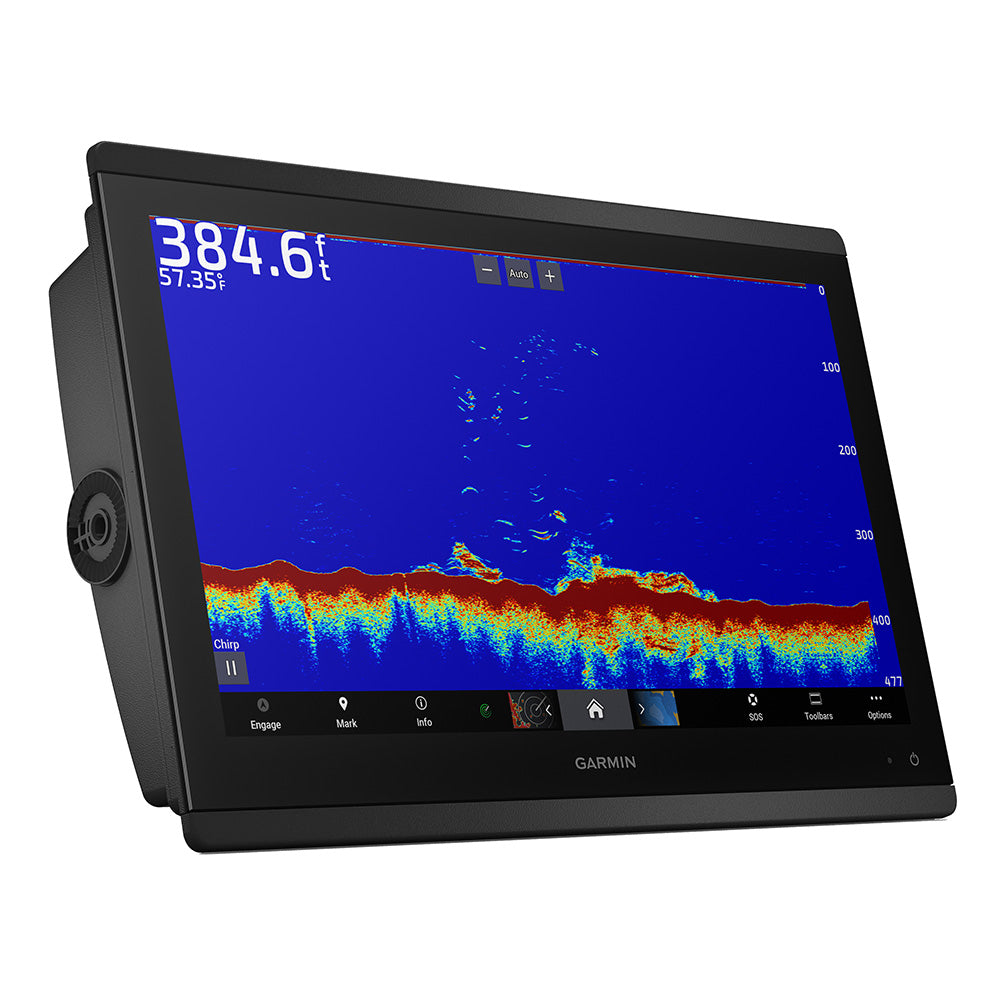

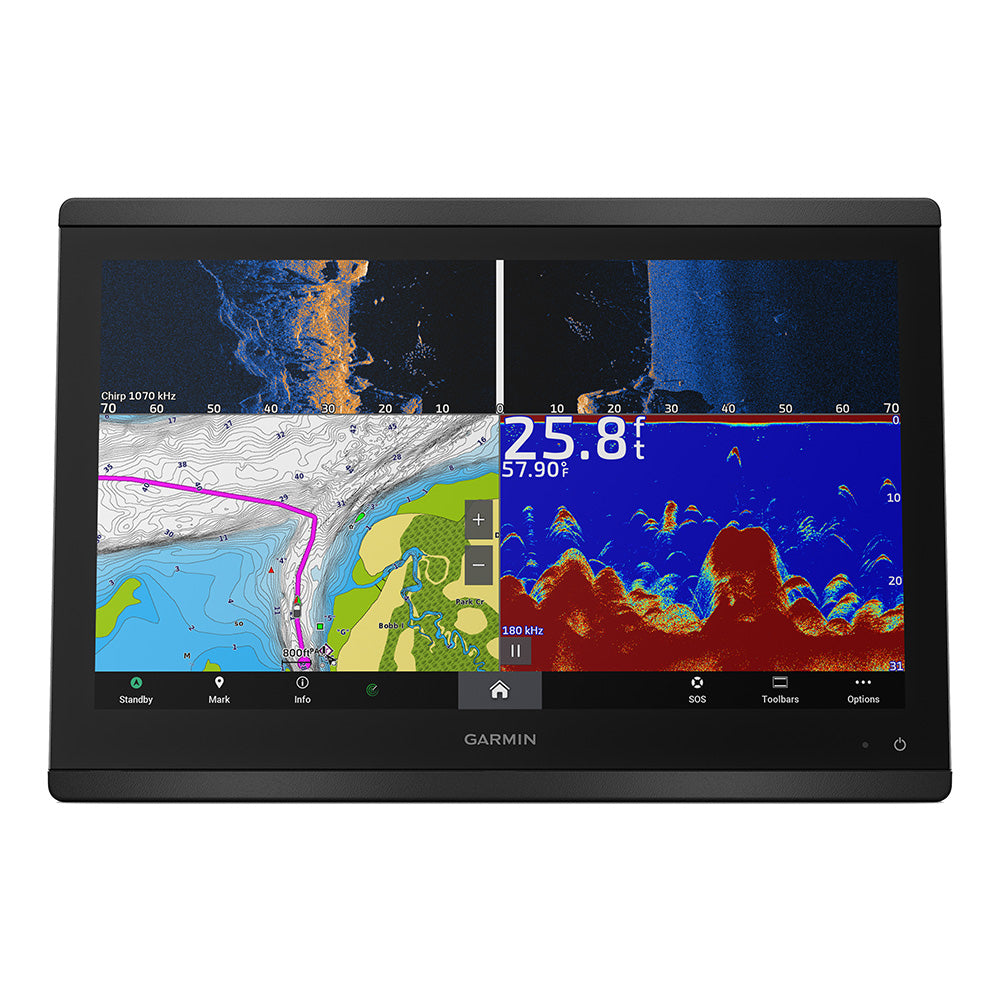

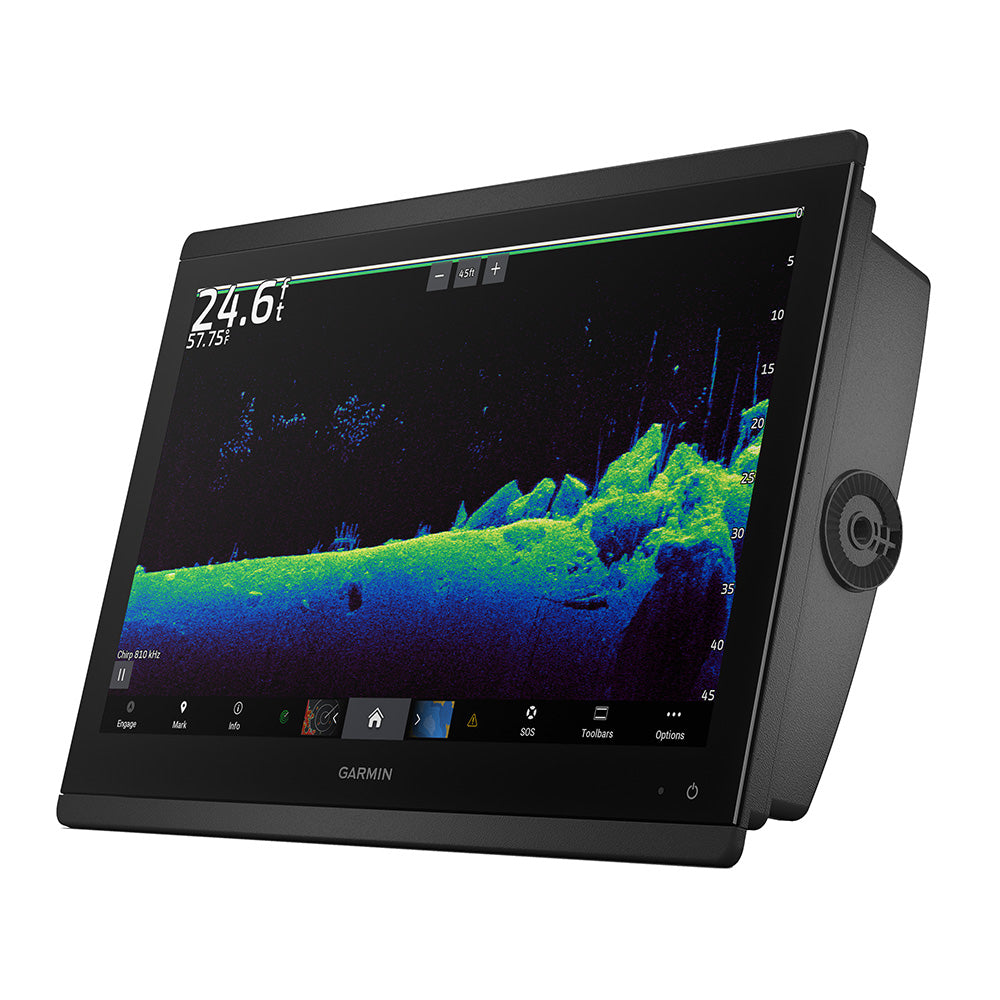

Pantalla multifunción GPSmap 8616 (cartografía Navionics+)

Name: Pantalla multifunción GPSmap 8616 (cartografía Navionics+)
Brand: Garmin
SKU: GAR/010-02093-51
Price: 6299.99 USD
Availability: InStock

16" MFD w/ Built-In Sonar & Navionics+

$6,299⁹⁹

Options

GPSmap 8416 Multi-Function Display

16" MFD

GPSmap 8416xsv Multi-Function Display

16" MFD w/ Built-In Sonar

GPSmap 8616 Multi-Function Display

16" MFD w/ Navionics+

Pantalla multifunción GPSmap 8616 (cartografía Navionics+)

16" MFD w/ Built-In Sonar & Navionics+

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

LOS PESCADORES, CRUCEROS, MARINEROS Y REGATARES SERIOS EXIGEN UN EQUIPO SERIO

Especificaciones

Product Series

GPSmap 8000
MPN

010-02093-51
Physical

Dimensions: 15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)
Weight: 9.6 lbs (4.4 kg)
Mounting

Type: Bracket (Sold Separately), Flush or Flat
Cutout: 14 3/4" x 9 3/16" (374.8 mm x 234.1 mm)
Power

Input: 10-32v DC
Typical Draw: 1.3 A @ 12v
Max Draw: 6.0 A @ 12v
Screen

Touchscreen: Yes
Type: FHD, IPS
Size: 15.6"
Resolution: 1920 x 1080
Sonar

Built-In Sonar: Yes
Port: 8pin / 12pin
Power: 1kW
Frequencies:
Traditional: Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz

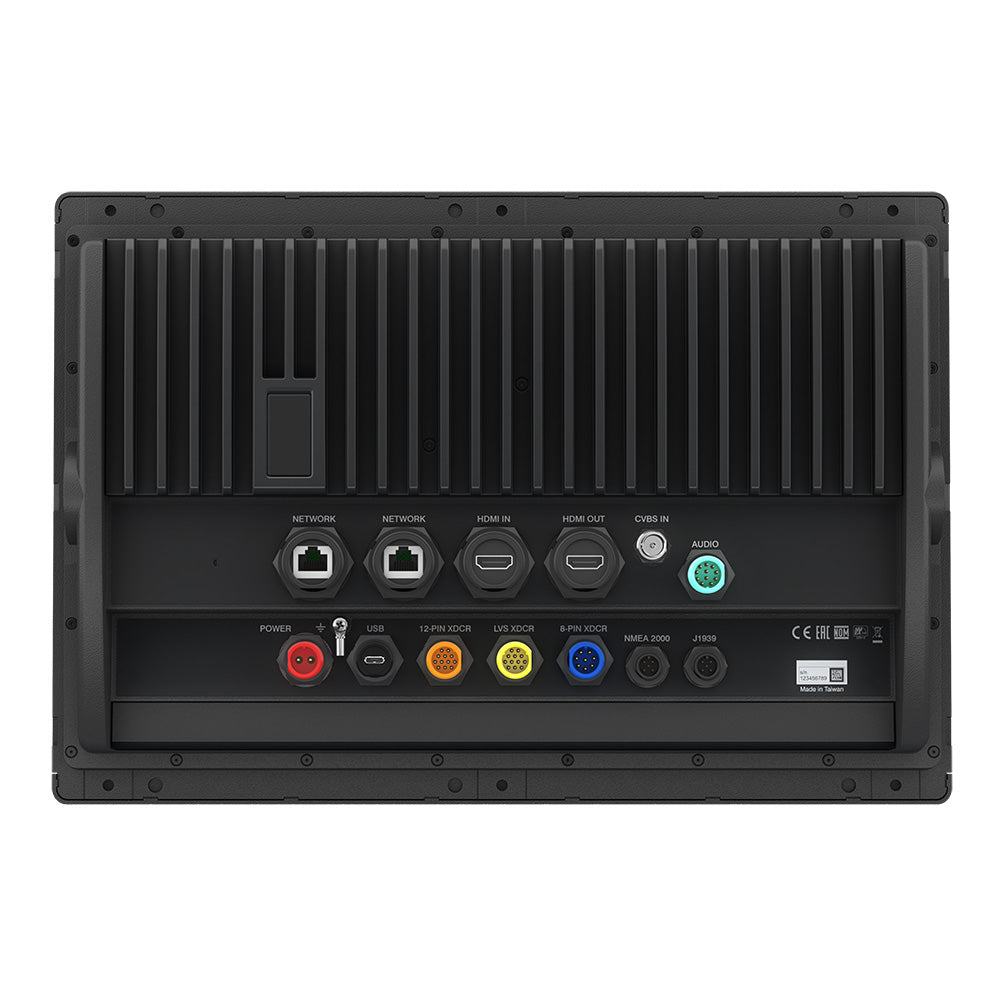

Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT+
Network: Marine Network Large (2)
NMEA 0183: Yes (Requires Accessory)
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Sonar: Yes - 8pin / 12pin

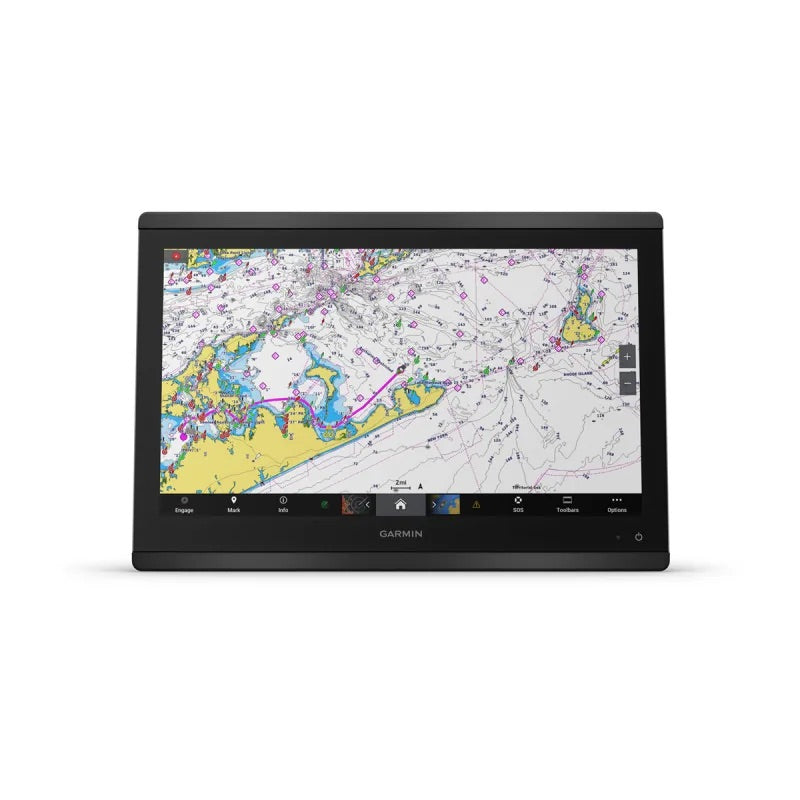

Built-In Chart

Garmin Navionics+
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

GPSmap 8616xsv
Power Cable
NMEA 2000 Drop Cable
NMEA 2000 T-Connector
Flush Mount Kit
Sun Cover
Trim Piece Snap Covers
Documentation

Package Dimensions:

Support/Warranty

Product Support: Garmin 8616xsv Support

Subscription Information:

Release Date:

Warranty: 2

Garmin Warranty Policy

* ALL WARRANTY IS THROUGH MANUFACTURE *
