Garmin | SKU: GAR/010-02679-00 | Código de barras: 753759307783

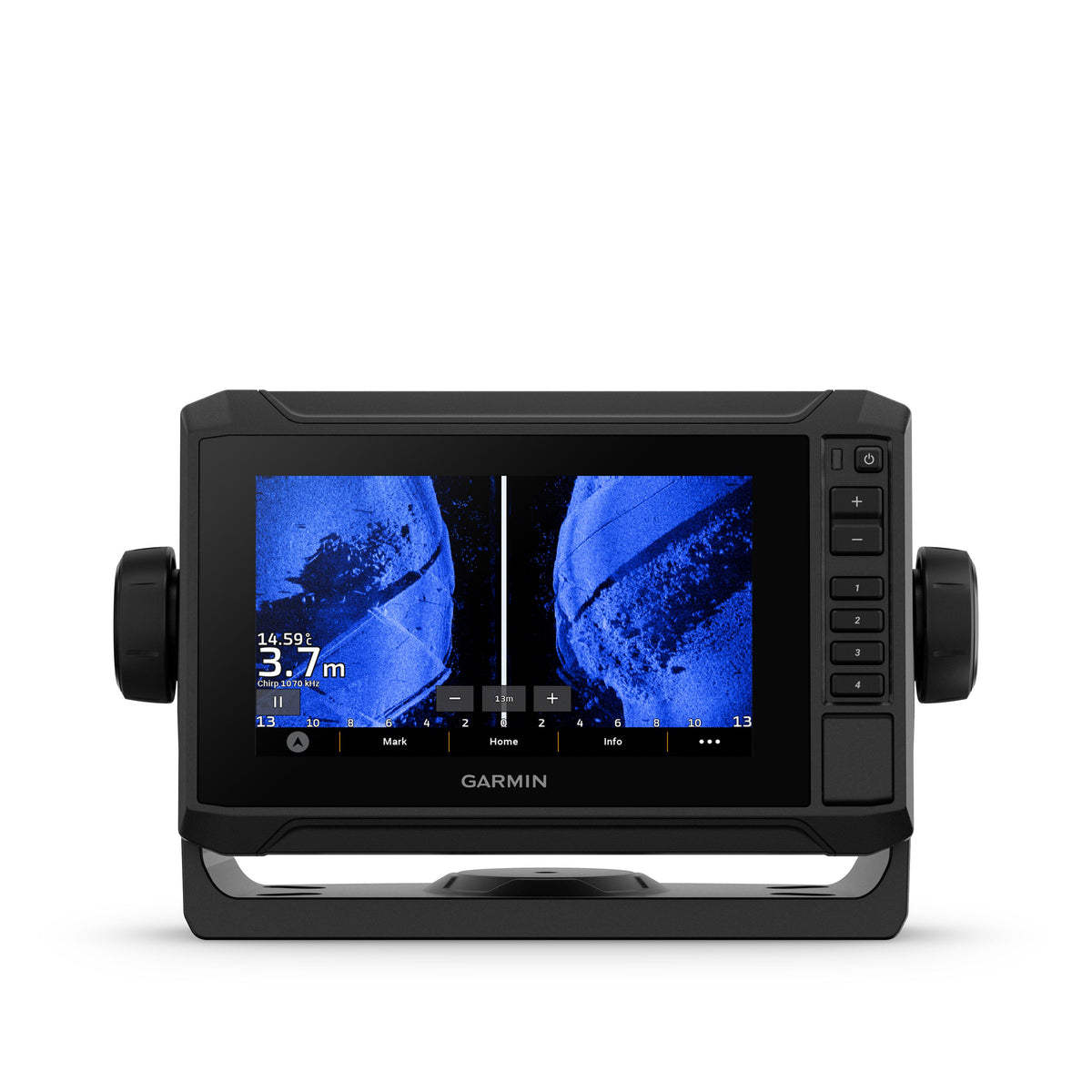

ECHOmap UHD2 62sv

Name: ECHOmap UHD2 62sv
Brand: Garmin
SKU: GAR/010-02679-00
Price: 799.99 USD
Availability: OutOfStock

6" Chartplotter

$799⁹⁹

Options

ECHOmap UHD2 62sv

6" Chartplotter

ECHOmap UHD2 62sv + GT54UHD Transducer

6" Chartplotter w/ Transducer

ECHOmap UHD2 63sv + GT54UHD Transducer

6" Chartploter w/ US Inland Charting & Transducer

ECHOmap UHD2 64sv

6" Chartplotter w/ Navionics+ Charting

ECHOmap UHD2 65sv + GT54UHD Transducer

6" Chartplotter w/ Canada Inland/Coastal Charting & Transducer

Plotter/sonda de pesca ECHOmap 64sv UHD2

6" Chartplotter w/ Navionics+ Charting & Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

The 6" ECHOMAP™ UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. See clear, sharp fish arches with Garmin traditional sonar. ClearVü™ and SideVü™ scanning sonars(transducer sold separately) feature vivid color palettes for clear, high-contrast views all around your boat (transducer sold separately). ECHOMAP UHD2 also supports LiveScope™ sonar systems. Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more. The chartplotter supports NMEA 2000® networks to connect your compatible autopilots, digital switching, music, and more to view all on one screen.

Easy-to-use 6" chartplotter with a bright, sunlight-readable touchscreen display
Built-in worldwide basemap with support for Garmin Navionics+™ and Garmin Navionics Vision+™ cartography, BlueChart® g3 coastal charts and LakeVü™ g3 inland maps
Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter

Especificaciones

Product Series

ECHOmap UHD 2
MPN

010-02679-00
Physical

Dimensions: 8.1" x 5.2" x 2.6" (20.6 x 13.1 x 6.7 cm)
Weight: 1.8 lbs (0.8 kg)
Mounting

Type: Bracket or Flush
Cutout: 7 9/16" x 4 1/4" (192.5 mm x 108 mm)
Power

Input: 9 - 18v DC
Typical Draw: 1.52 A @ 12v
Max Draw: 3.2 A @ 12v
Screen

Touchscreen: Yes (Keyed Assist)
Type: WVGA, TN
Size: 6.2"
Resolution: 800 x 480
Sonar

Built-In Sonar: Yes
Power: 500w
Frequencies:
Traditional: 50/77/200 kHz / CHIRP (mid and high)
ClearVü: 260/455/800 kHz
SideVü: 260/455/800 kHz

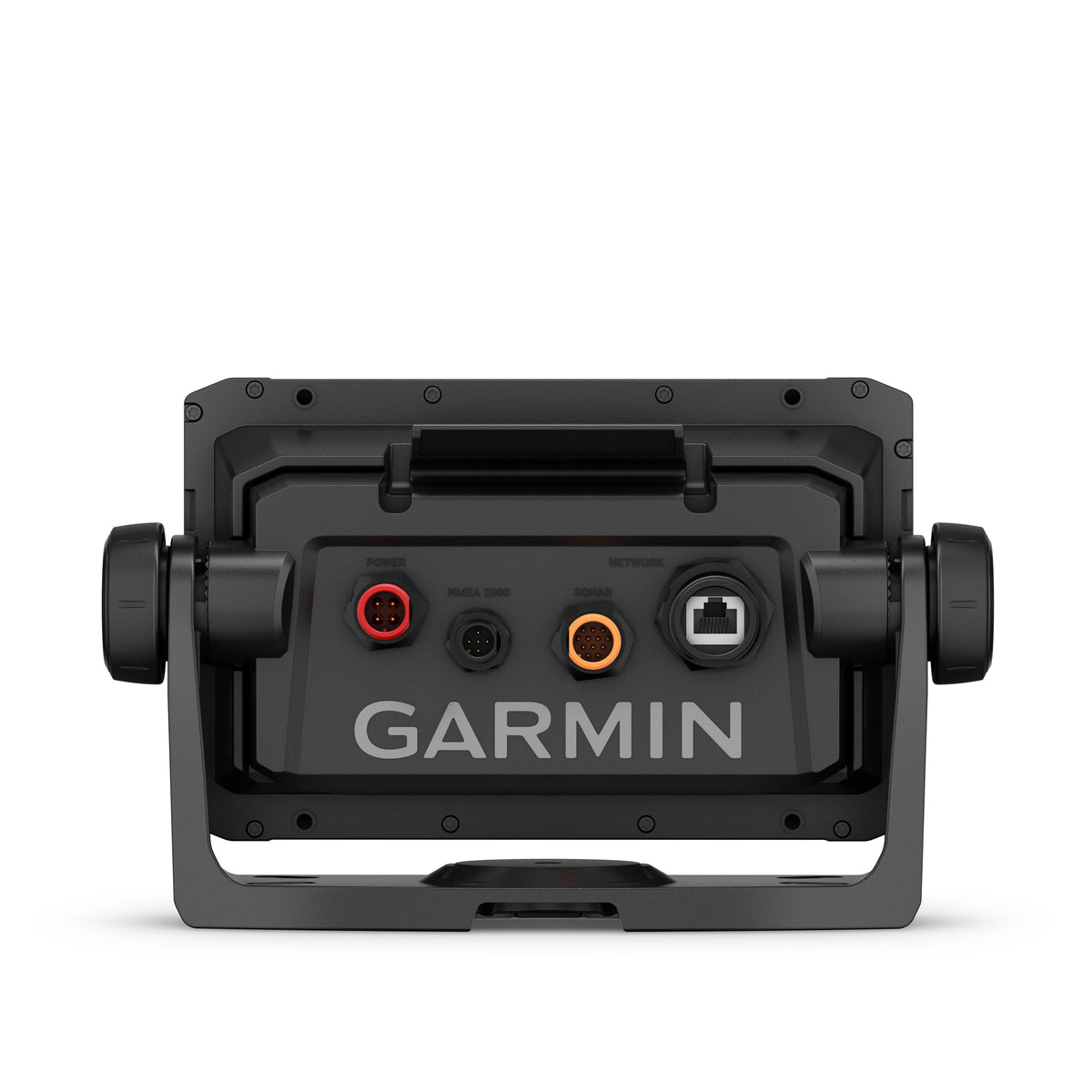

Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (1)
Wireless: WiFi
Network: Marine Network
NMEA 0183: No
NMEA 2000: Yes
J1939: No
Analog Video In: No
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 12pin
Built-In Chart

Basemap
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

ECHOMAP 62sv UHD2
12-pin sounder to 8-pin transducer cable
Power cable
Tilt/swivel mount with quick release cradle
Protective cover
Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
