Garmin | SKU: GAR/010-02686-00 | Código de barras: 753759307929

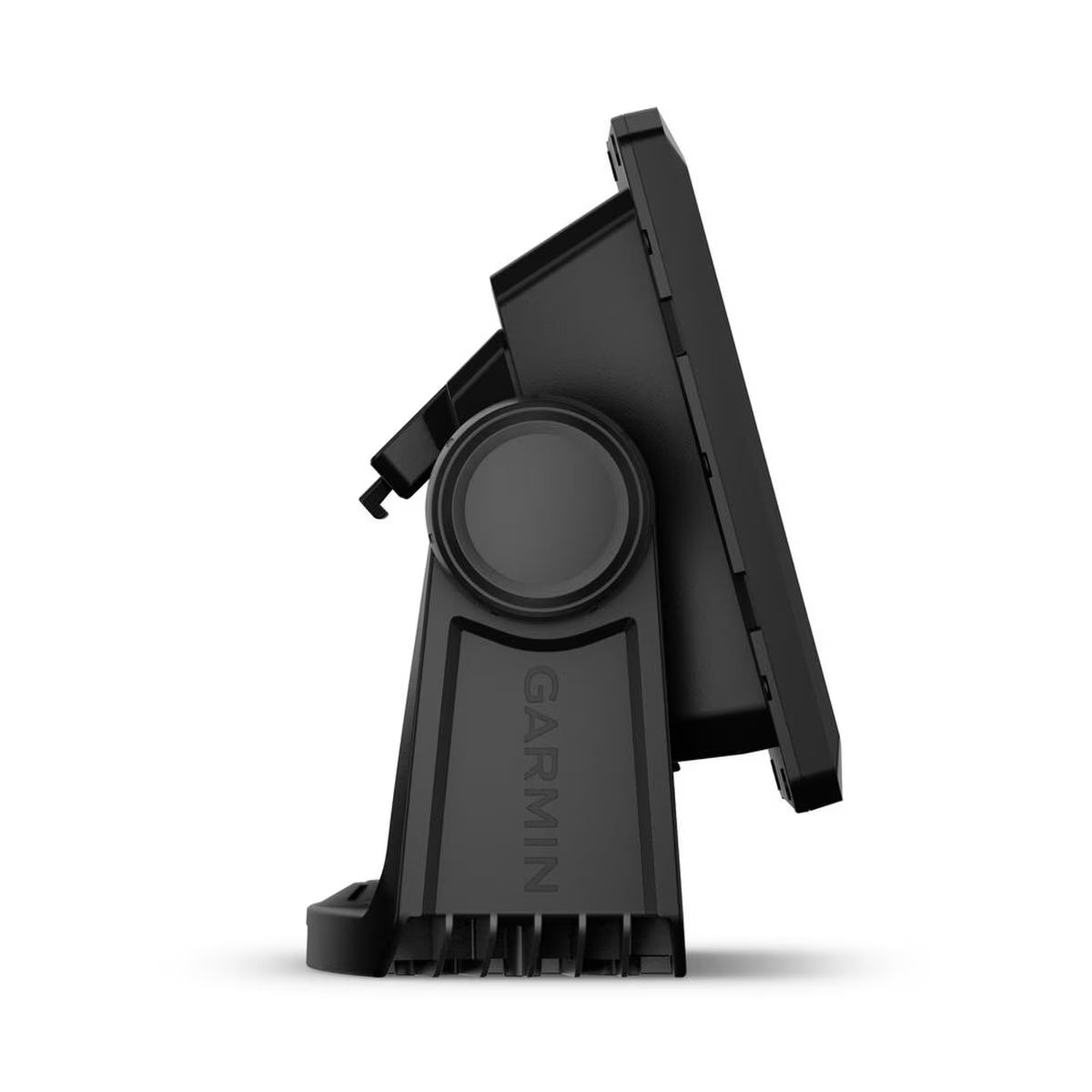

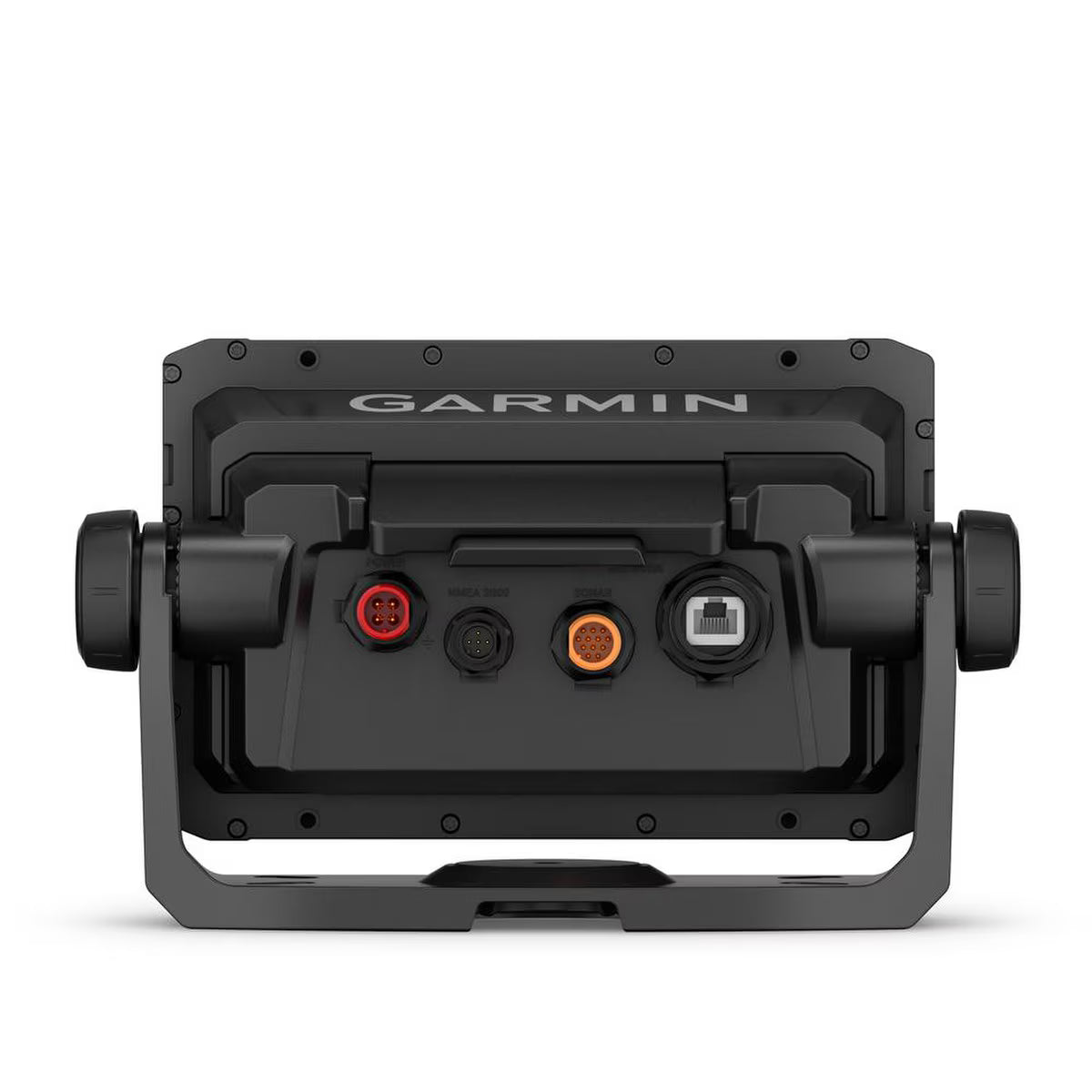

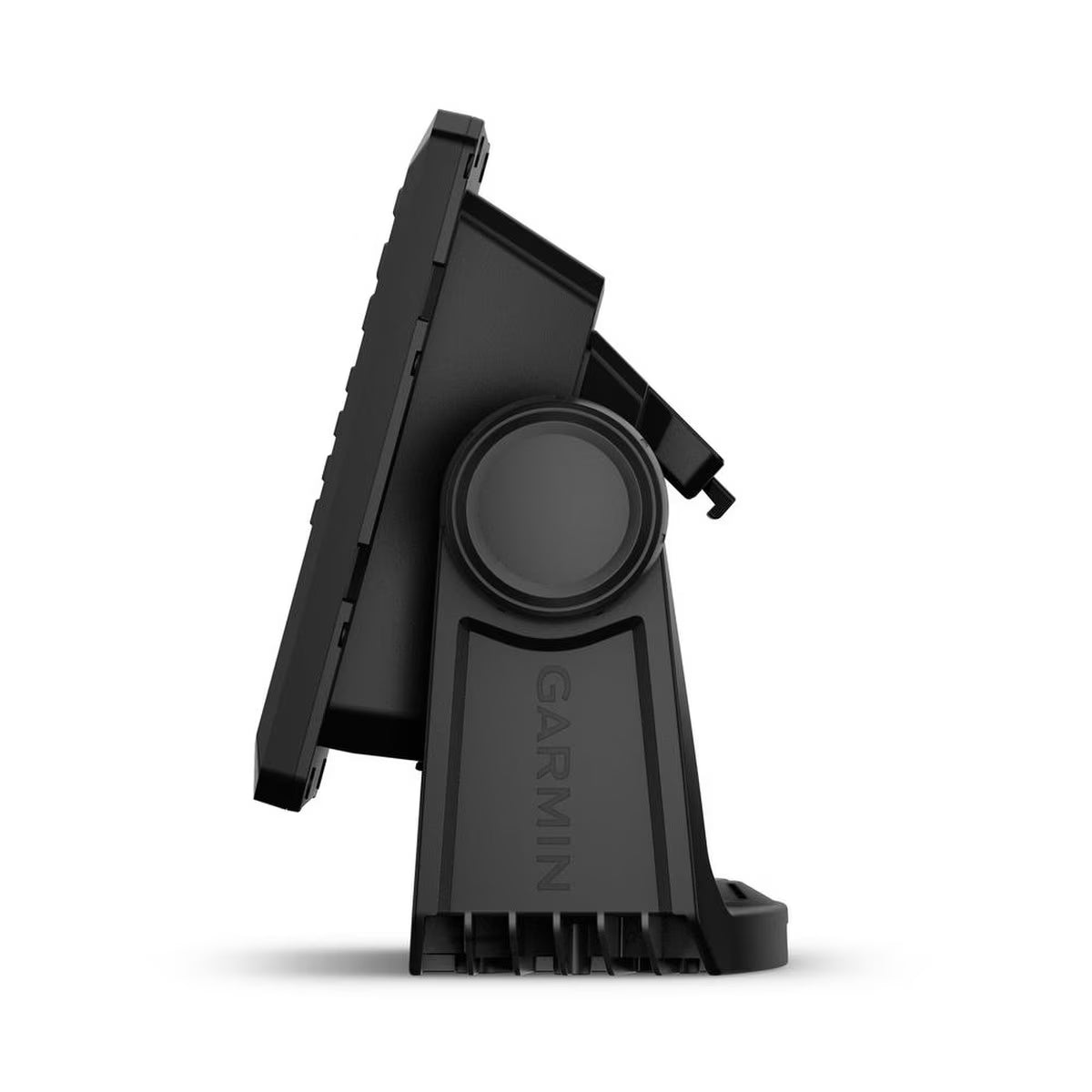

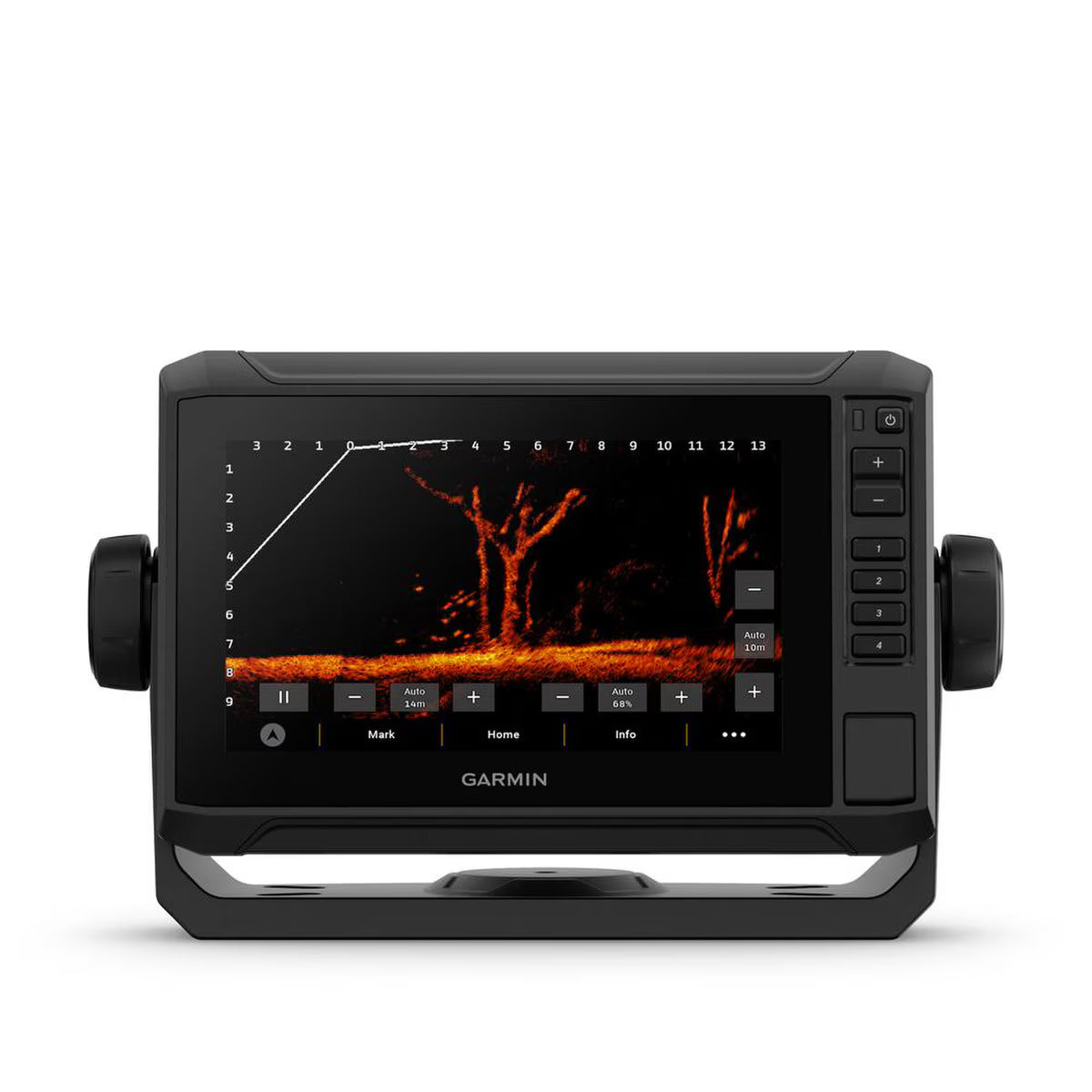

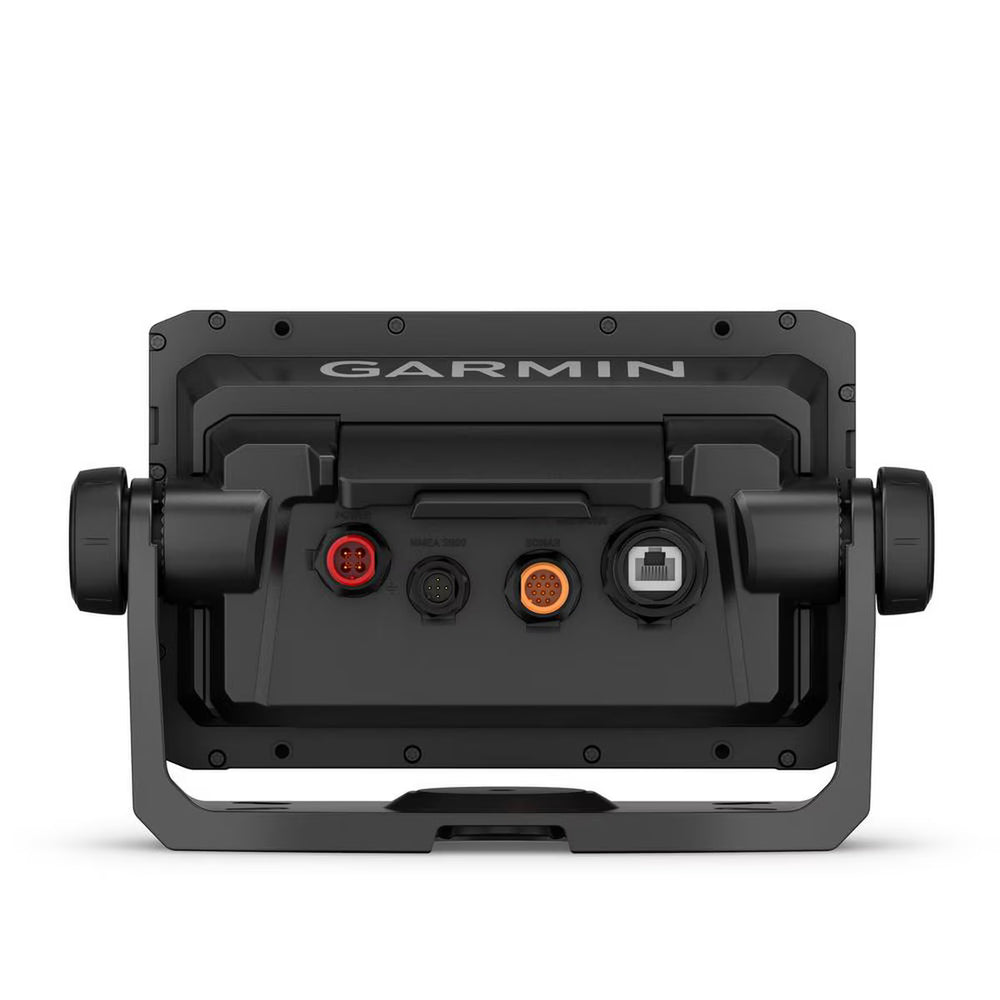

ECHOmap UHD2 75sv + GT54UHD Transducer

Name: ECHOmap UHD2 75sv + GT54UHD Transducer
Brand: Garmin
SKU: GAR/010-02686-00
Price: 1049.99 USD
Availability: InStock

7" Chartplotter w/ Canada Inland/Coastal Charting & Transducer

$1,049⁹⁹

Options

ECHOmap UHD2 72sv

7" Chartplotter

ECHOmap UHD2 72sv + GT54UHD Transducer

7" Chartplotter w/ Transducer

ECHOmap UHD2 73sv

7" Chartplotter w/ US Inland Charting

ECHOmap UHD2 73sv + GT54UHD Transducer

7" Chartplotter w/ US Inland Charting & Transducer

ECHOmap UHD2 74sv

7" Chartplotter w/ Navionics+ Charting

ECHOmap UHD2 75sv

7" Chartplotter w/ Canada Charting

ECHOmap UHD2 75sv + GT54UHD Transducer

7" Chartplotter w/ Canada Inland/Coastal Charting & Transducer

Plotter/sonda de pesca ECHOmap 74sv UHD2

7" Chartplotter w/ Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü^™ and SideVü^™ sonars.

Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.

If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.

Especificaciones

Product Series

ECHOmap UHD 2
MPN

010-02686-00
Physical

Dimensions: 8.6" x 5.6" x 3.2" (21.8 x 14.2 x 8.1 cm)
Weight: 2.2 lbs (1.0 kg)
Mounting

Type: Bracket or Flush
Cutout: 8 1/16" x 4 11/16" (204.5 mm x 118.7 mm)
Power

Input: 9 - 18v DC
Typical Draw: 1.52 A @ 12v
Max Draw: 3.2 A @ 12v
Screen

Touchscreen: Yes (Keyed Assist)
Type: WVGA, TN
Size: 7.0"
Resolution: 800 x 480
Sonar

Built-In Sonar: Yes
Power: 500 W
Frequencies:
Traditional: single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü: 260/455/800/1000/1200 kHz
SideVü: 260/455/800/1000/1200 kHz
Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (1)
Wireless: WiFi
Network: Marine Network
NMEA 0183: No
NMEA 2000: Yes
J1939: No
Analog Video In: No
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 12pin
Built-In Chart

Garmin Navionics+ Canada
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

ECHOMAP UHD2 75sv
GT54-TM transducer
Power cable
Tilt/swivel mount with quick release cradle
Protective cover
Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

Garmin Marine Warranty

* ALL WARRANTY IS THROUGH MANUFACTURE *
