Garmin | SKU: GAR/010-03855-01 | Código de barras: 753759345747

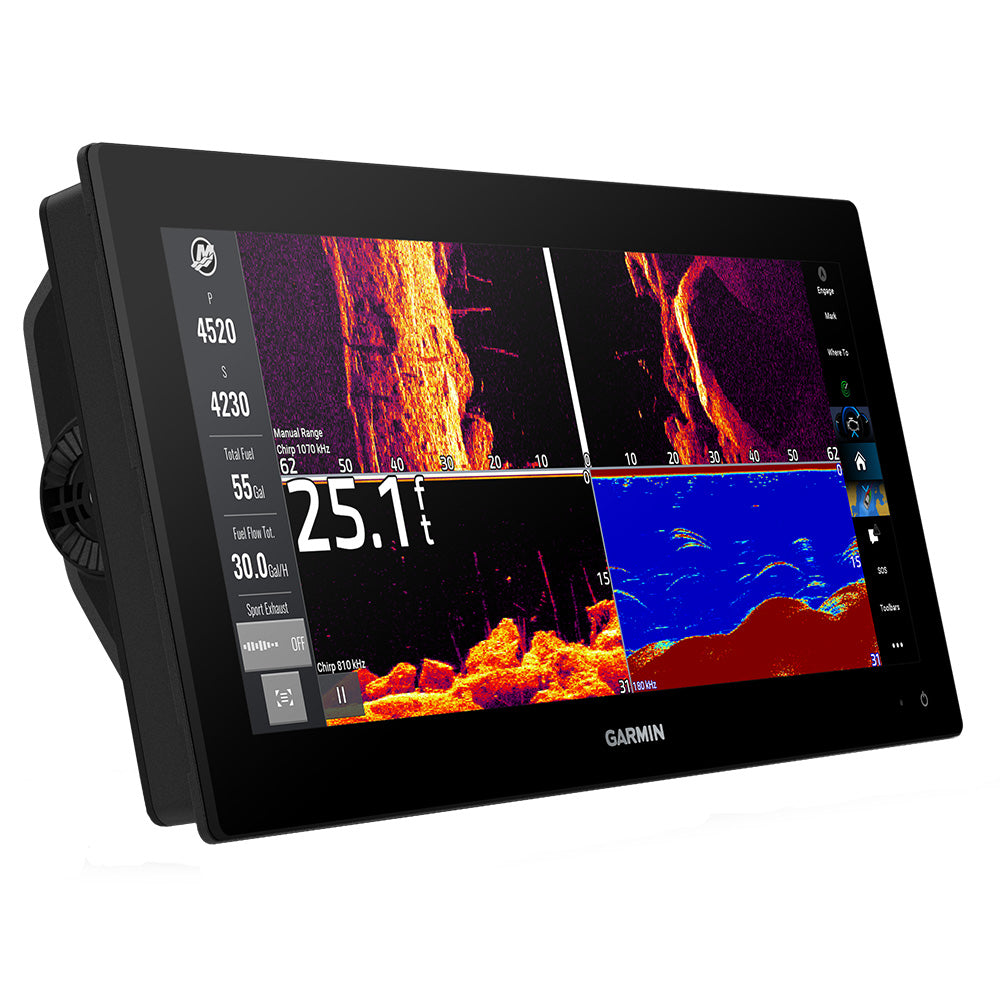

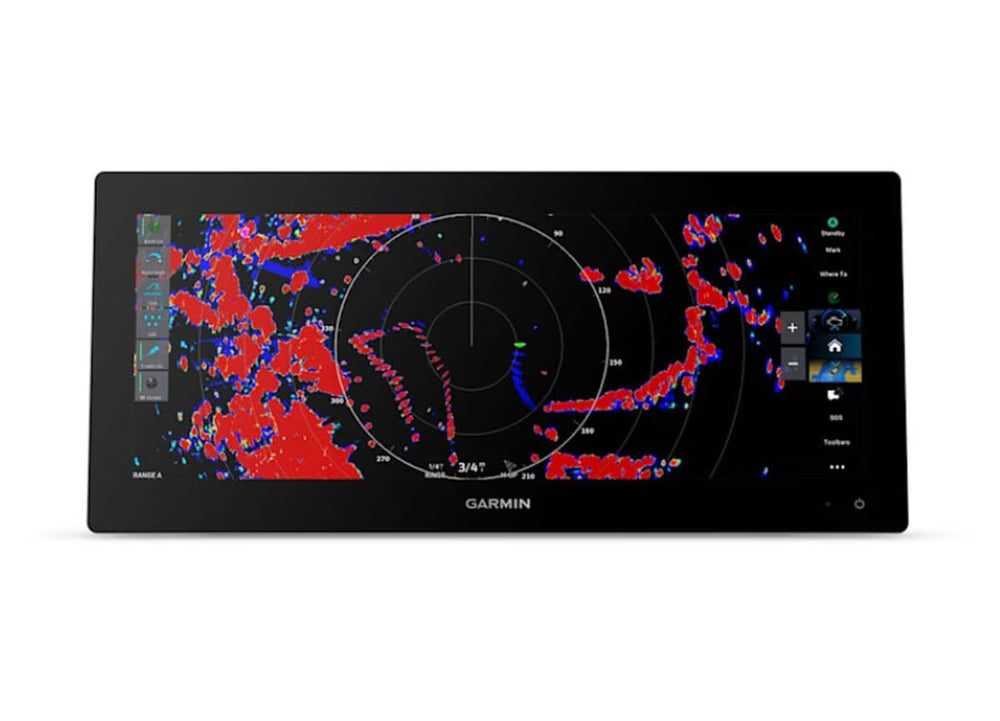

GPSmap 1543xsv Multi-Function Display

Name: GPSmap 1543xsv Multi-Function Display
Brand: Garmin
SKU: GAR/010-03855-01
Price: 4299.99 USD
Availability: InStock

15" Ultra-Wide MFD w/ Built-In Sonar & Navionics+

$4,299⁹⁹ $4,499⁹⁹

Options

GPSmap 1523xsv Multi-Function Display

15" Ultra-Wide MFD w/ Built-In Sonar

GPSmap 1543xsv Multi-Function Display

15" Ultra-Wide MFD w/ Built-In Sonar & Navionics+

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

WIDEN YOUR HORIZONS

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

SLEEK MODERN DESIGN

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

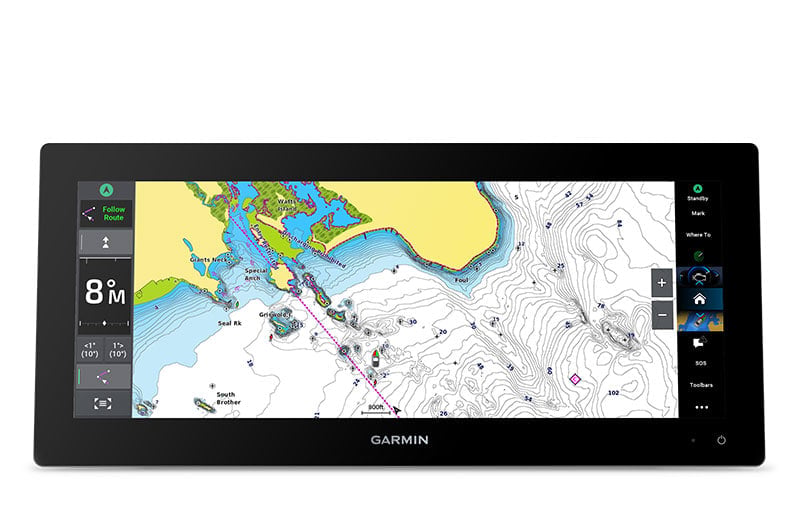

PRELOADED MAPPING

Navigate waters confidently with preloaded Garmin Navionics+™ charts.

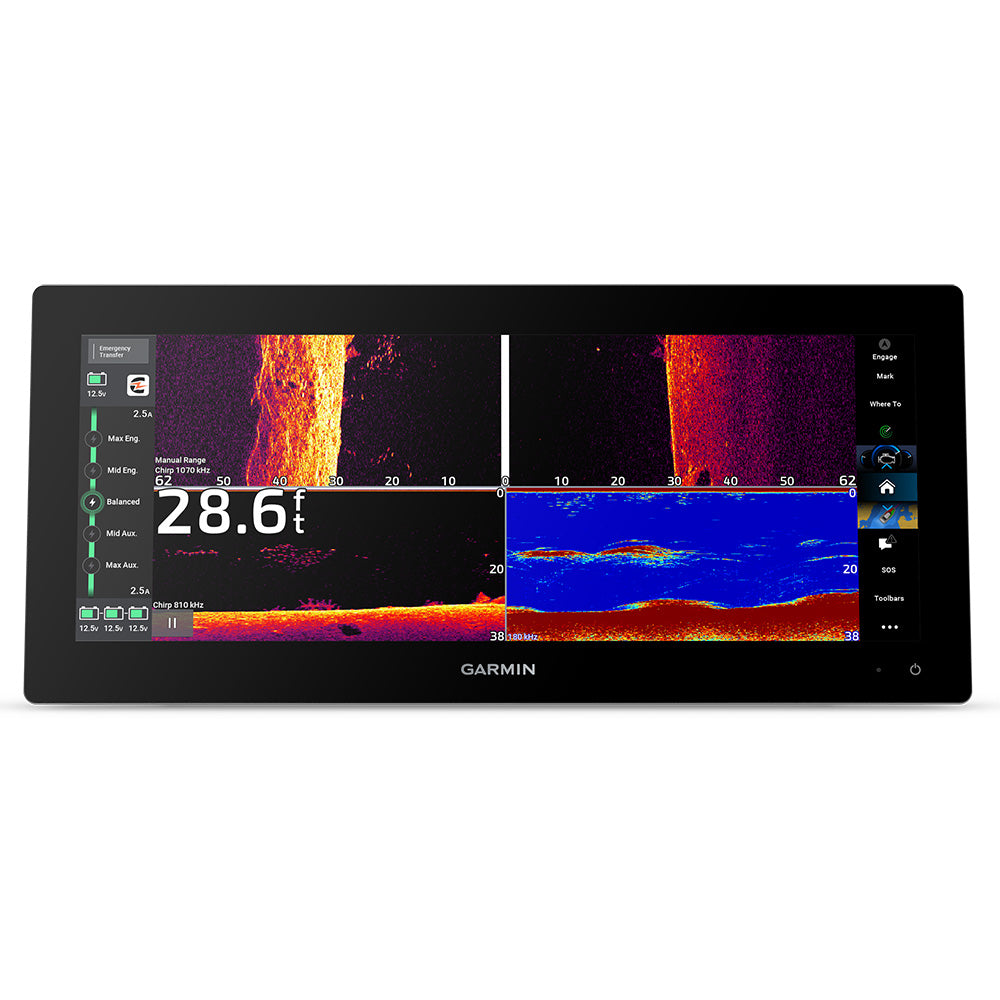

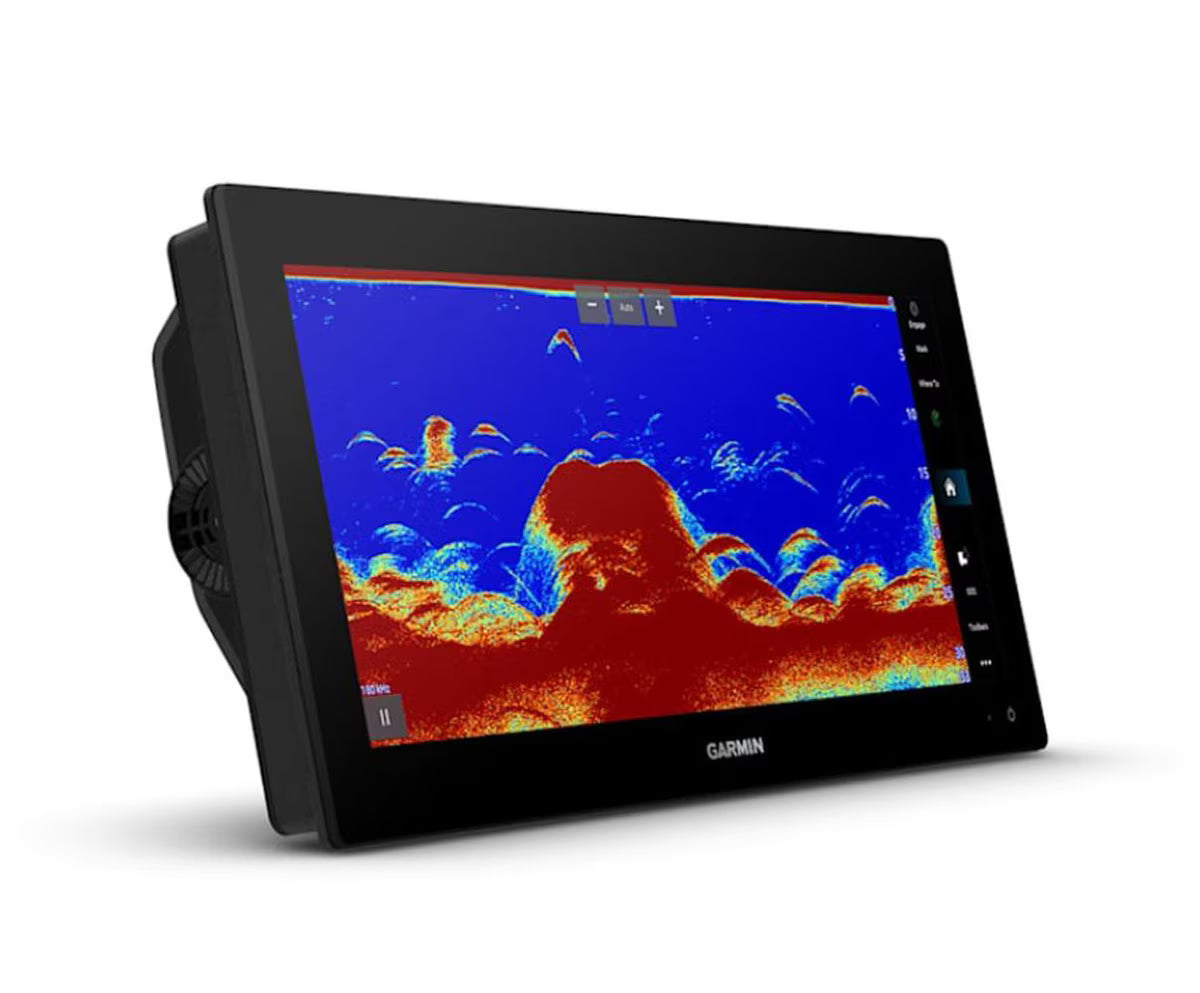

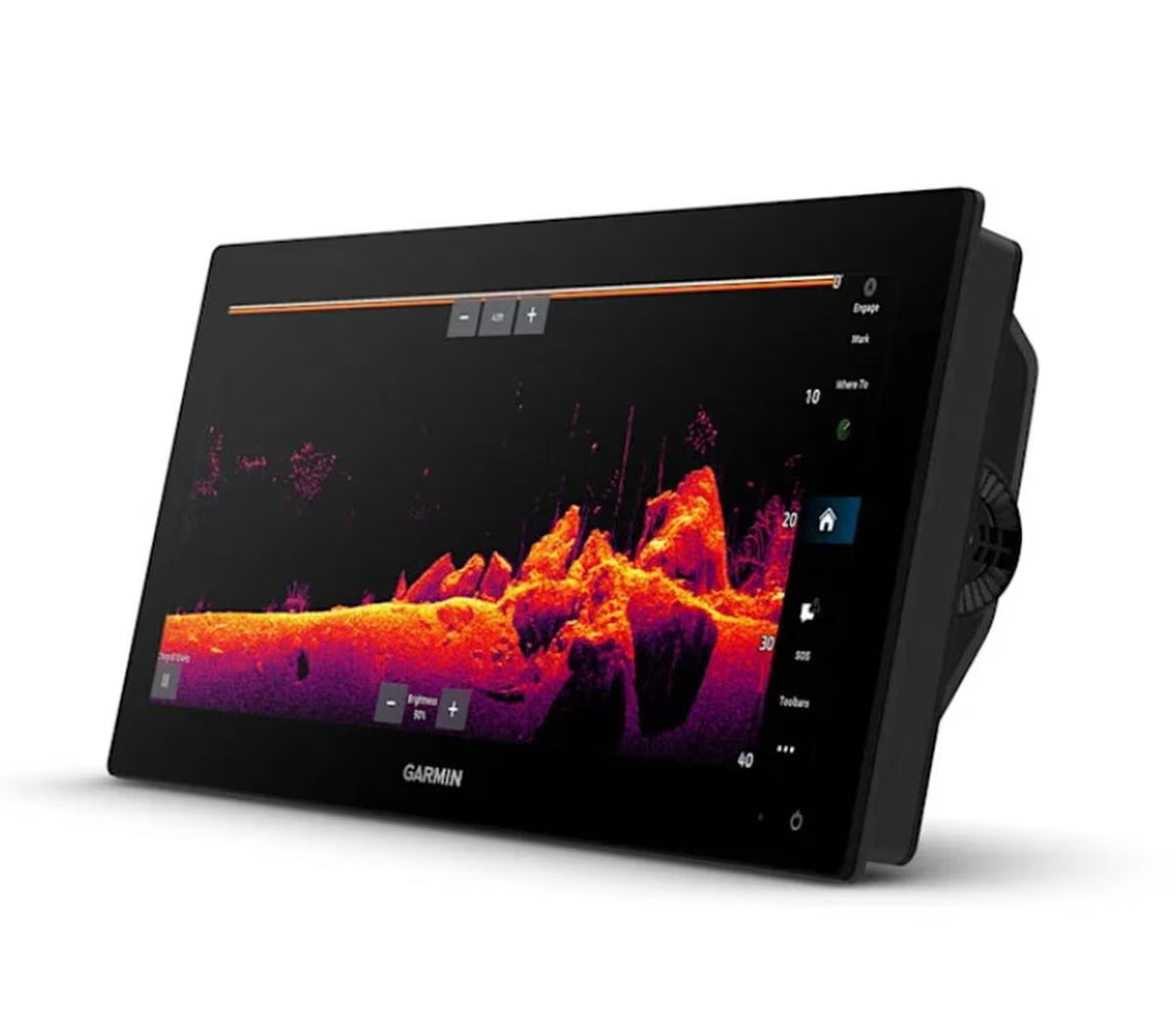

ULTRA HIGH-DEFINITION SCANNING SONAR

See below your boat with built-in sonar capabilities

Especificaciones

Product Series

GPSmap x3
MPN

010-03855-01
Physical

Dimensions: 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm)
Weight: 7.2 lbs (3.26kg)

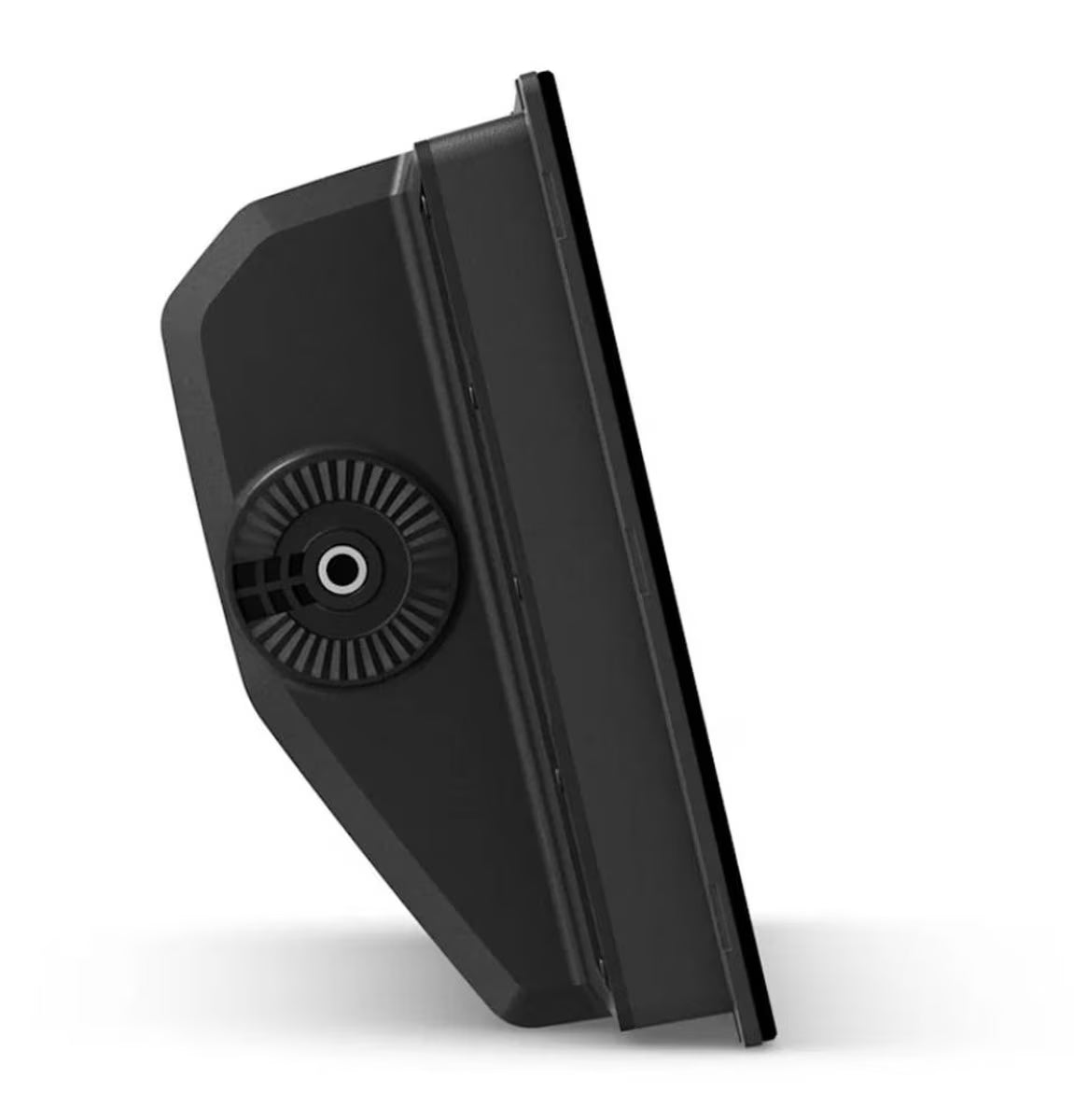

Mounting

Type: Bracket (Sold Separately), Flat or Flush
Cutout: 14 7/8" x 6 9/16" (378 mm x 167 mm)
Power

Input: 10-32v DC
Typical Draw: 2.44 A @ 12v
Max Draw: 4.21 A @ 12v
Screen

Touchscreen: Yes
Type: Ultrawide display, IPS
Size: 14.5"
Resolution: 1920 x 720
Sonar

Built-In Sonar: Yes
Port: 12pin
Power: 1kW
Frequencies:
Traditional: Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz

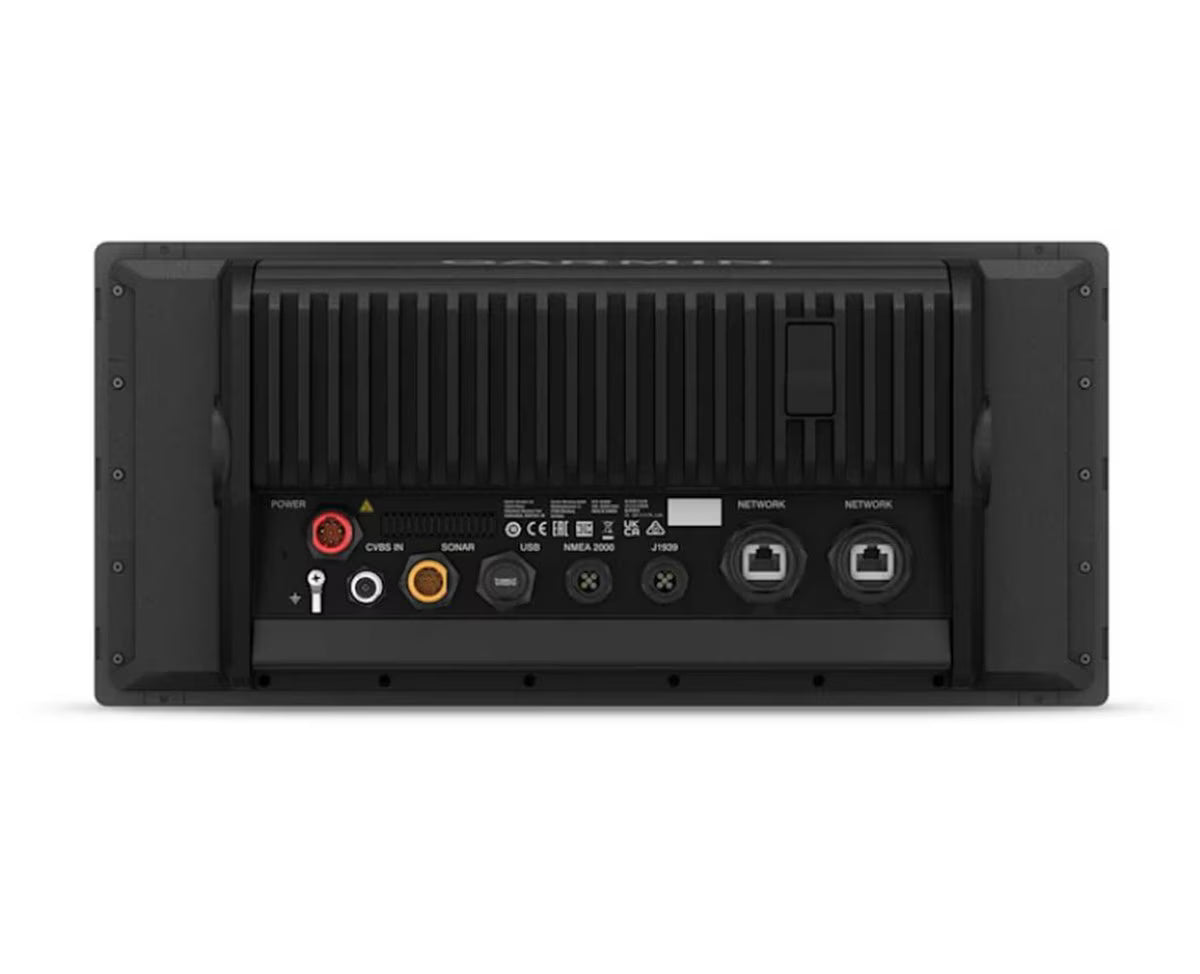

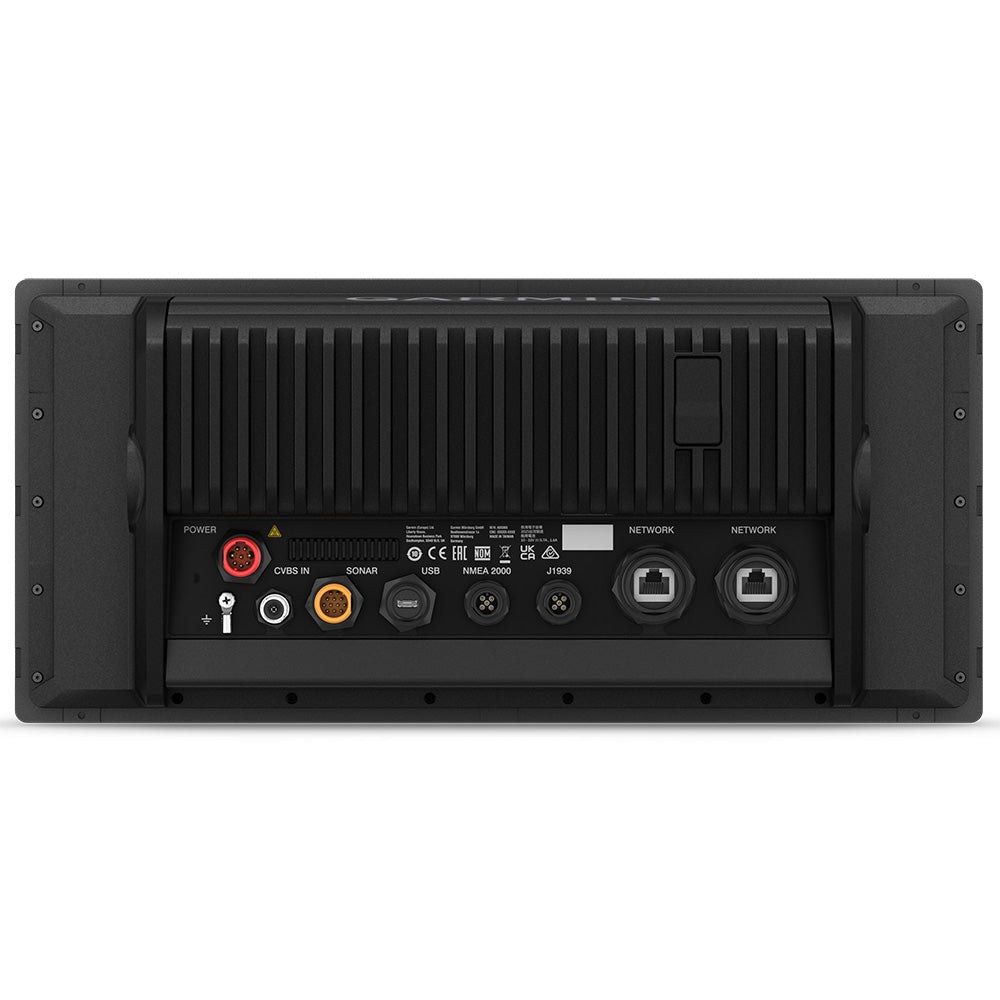

Connectivity

Built-In GPS: Yes - 10Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT
Network: Marine Network (2)
NMEA 0183: Yes
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: No
HDMI Out: No
USB: Yes
Sonar: Yes - 12pin
Built-In Chart

Garmin Navionics+
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

GPSmap 1523xsv
microSD™ card preinstalled
Power cable
Thin flush mount kit with gasket
Protective cover
8-pin transducer to 12-pin sounder adapter cable
2 m backbone/drop cable and T-connector for NMEA 2000® Network
Documentation

Package Dimensions:

Support/Warranty

Product Support: Garmin 1543xsv Support

Subscription Information:

Release Date:

Warranty: 2yr

Garmin Warranty Policy

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Garmin

8pin Extension Cable (10')

8pin Transducer Extention Cable

010-11617-50

Disponibles (3)

$49⁹⁹

Garmin

8pin Extension Cable (30')

8pin Transducer Extention Cable

010-11617-52

Disponibles (15)

$69⁹⁹

Garmin

8pin HD Extension Cable (10')

8pin Transducer Heavy Duty Extention Cable

010-11617-53

Disponibles (18)

$69⁹⁹

Garmin

8pin HD Extension Cable (30')

8pin Transducer Heavy Duty Extention Cable

010-11617-54

Disponibles (4)

$99⁹⁹

Discontinued

Garmin

8pin Right Angle Adaptor

8pin Right Angle Transducer Adaptor

010-12262-00

Out of stock

$19⁹⁸

Garmin

8pin to 6pin Adaptor Cable

8pin Transducer to 6pin Sounder Adaptor Cable

010-11612-00

Disponibles (21)

$29⁹⁹

Garmin

APK10 Autopilot Controller - Horizontal

Horizontal Autopilot Keypad

010-03197-00

Poca disponibilidad (2)

$399⁹⁹

Garmin

APK10 Autopilot Controller - Vertical

Vertical Autopilot Keypad

010-03197-01

Muy poca disponibilidad (1)

$399⁹⁹

Garmin

Antena GPS 24xd

White High Accuracy GPS Antenna w/ Heading - NMEA 2000 Connection

010-02316-10

Disponibles (31)

$314⁹⁹

Garmin

Bloque adaptador de sonda de 12 pines

Barewire Transducer to 12pin Sounder Adaptor Block

010-11613-10

Disponibles (31)

$84⁹⁹

Garmin

Bloque adaptador de sonda de 8 pines

Barewire Transducer to 8pin Sounder Adaptor Block

010-11613-00

Disponibles (13)

$79⁹⁹

Garmin

Bracket Mount - GPSmap 15x3xsv

010-12992-03

Poca disponibilidad (2)

$69⁹⁹

Garmin

Cable adaptador de transductor de 8 pines a sonda de 12 pines

8pin Transducer to 12pin Sounder Adaptor Cable

010-12122-10

Disponibles (85)

$29⁹⁹

Garmin

GPS 24xd GPS/Heading Sensor - NMEA 2000

Black High Accuracy GPS Antenna w/ Heading - NMEA 2000 Connection

010-02316-20

Disponibles (10)

$364⁹⁹

Garmin

Lector de tarjetas USB dual

USB Card Reader w/ USB-C Adaptor

010-02251-10

(1)

Disponibles (9)

$129⁹⁹

Garmin

Placa adaptadora GPSmap 943 (923)

Adptor Plate For GPSmap 9x2 to 9x3

010-12993-01

Muy poca disponibilidad (1)

$34⁹⁹

Garmin

Puerta de enlace BlueNet 30

BlueNet to Garmin Legacy Network Gateway

010-02613-00

Disponibles (26)

$349⁹⁹

Garmin

Transducer Extension Cable - 12pin (10')

10' 12pin Transducer Extention Cable

010-11617-32

Disponibles (52)

$54⁹⁹

Garmin

Transducer Extension Cable - 12pin (30')

30' 12pin Transducer Extention Cable

010-11617-42

Disponibles (12)

$64⁹⁹

Garmin

Transducer Extension Cable - 12pin (4')

4' 12pin Transducer Extention Cable

010-11617-44

Out of stock

$39⁹⁹

Discontinued

Garmin

Transducer Right Angle Adaptor - 12pin

12pin Right Angle Transducer Adaptor

010-12262-10

Out of stock

$19⁹⁸

Garmin

Transducer Right Angle Cable - 12pin

12pin Right Angle Transducer Extension Cable

010-12098-00

Out of stock

$29⁹⁹

Garmin

Transducer Y-Cable - 12pin (32')

12pin Transducer Y-Cable

010-12225-00

Disponibles (4)

$59⁹⁹

Garmin

Transducer Y-Cable - 12pin (6')

12pin Transducer Y-Cable

010-12225-10

Poca disponibilidad (2)

$44⁹⁹

A black Y-cable with one end featuring an 8-pin connector and the other end a 12-pin connector, commonly used for connecting marine transducers.

Garmin

Transducer Y-Cable - 12pin/8pin

8pin/12pin Transducer To 12pin Sounder Adaptor Cable

010-12445-33

Disponibles (7)

$34⁹⁹

Garmin

B117 (0°)

Bronze 600w 50/200kHz Thru-Hull Transducer

010-10182-21

Disponibles (4)

$374⁹⁹

Garmin

B150M (0º)

300w Medium CHIRP Tilted Element Thru-Hull Transducer

010-11927-20

Disponibles (3)

$569⁹⁹

Garmin

B150M (12°)

300w Medium CHIRP Tilted Element Thru-Hull Transducer

010-11927-21

Poca disponibilidad (2)

$569⁹⁹

Garmin

B150M (20°)

300w Medium CHIRP Tilted Element Thru-Hull Transducer

010-11927-22

Disponibles (3)

$569⁹⁹

Garmin

B175H (12°)

1kW High CHIRP Tilted Element Thru-Hull Transducer

010-11937-21

Muy poca disponibilidad (1)

$1,349⁹⁹

Garmin

B175H (20°)

1kW High CHIRP Tilted Element Thru-Hull Transducer

010-11937-22

(1)

Disponibles (5)

$1,349⁹⁹

Garmin

B175HW (0°)

1kW High-Wide CHIRP Tilted Element Thru-Hull Transducer

010-12181-20

Pedido pendiente

$1,699⁹⁹

Garmin

B175HW (20°)

010-12181-22

Disponibles (3)

$1,699⁹⁹

Garmin

B175L (12°)

1kW Low CHIRP Tilted Element Thru-Hull Transducer

010-11938-21

Poca disponibilidad (2)

$1,799⁹⁹

Garmin

B175L (20°)

1kW Low CHIRP Tilted Element Thru-Hull Transducer

010-11938-22

Out of stock

$1,799⁹⁹

Garmin

B175M (0°)

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

010-11939-20

Out of stock

$1,399⁹⁹

Garmin

B175M (12°)

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

010-11939-21

Disponibles (3)

$1,399⁹⁹

Garmin

B175M (20°)

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

010-11939-22

Poca disponibilidad (2)

$1,399⁹⁹

Garmin

B258

Bronze 1kW 50/200kHz Thru-Hull Transducer w/ Fairing Block

010-10703-20

Muy poca disponibilidad (1)

$1,199⁹⁹

Garmin

B260

Bronze 1kW 50/200kHz Thru-Hull Transducer w/ Fairing Block

010-10640-20

Poca disponibilidad (2)

$1,649⁹⁹

Garmin

Dual Beam (8pin)

500w 77/200kHz Transom Mount Transducer

010-10249-40

Disponibles (4)

$99⁹⁹

Garmin

GT12M-THF (0°)

Bronze 600w Medium CHIRP Tilted Element Thru-Hull Transducer

010-02867-00

Disponibles (3)

$399⁹⁹

Ver información

Garmin

GT12M-THF (12°)

Bronze 600w Medium CHIRP Tilted Element Thru-Hull Transducer

010-02867-01

Disponibles (3)

$399⁹⁹

Garmin

GT12M-THF (20°)

Bronze 600w Medium CHIRP Tilted Element Thru-Hull Transducer

010-02867-02

Disponibles (3)

$399⁹⁹

Garmin

GT15M-IH

600w Medium CHIRP In-Hull Transducer

010-12402-00

Disponibles (21)

$249⁹⁹

Garmin

GT15M-THF (0°)

Stainless 600w Mediium CHIRP Tilted Element Thru-Hull Transducer

010-02868-00

Poca disponibilidad (2)

$799⁹⁹

Garmin

GT15M-THF (12°)

Stainless 600w Mediium CHIRP Tilted Element Thru-Hull Transducer

010-02868-01

Disponibles (3)

$799⁹⁹

Garmin

GT15M-THF (20°)

Stainless 600w Mediium CHIRP Tilted Element Thru-Hull Transducer

010-02868-02

Out of stock

$799⁹⁹

Garmin

GT17M-THF (0°)

Stainless 1kW Medium CHIRP Tilted Element Thru-Hull Transducer

010-02930-00

Disponibles (4)

$1,199⁹⁹

Ver información

Garmin

GT17M-THF (12°)

Stainless 1kW Medium CHIRP Tilted Element Thru-Hull Transducer

010-02930-01

Disponibles (3)

$1,199⁹⁹

Garmin

GT17M-THF (20°)

Stainless 1kW Medium CHIRP Tilted Element Thru-Hull Transducer

010-02930-02

Muy poca disponibilidad (1)

$1,199⁹⁹

Garmin

GT30-TH

Thru-Hull ClearVu/SideVu Thru-Hull Transducer

010-01961-10

Disponibles (3)

$734⁹⁹

Garmin

GT30-THP

Thru-Hull Pair ClearVu/SideVu Thru-Hull Pair Transducer

010-01961-11

Muy poca disponibilidad (1)

$1,399⁹⁹

Garmin

GT30-TM

Transom Mount ClearVu/SideVu Transom Mount Transducer

010-01961-00

Out of stock

$209⁹⁹

Garmin

GT34UHD-TH

500w Ultra High Definition ClearVu/SideVu Transducer

010-12776-10

Poca disponibilidad (2)

$949⁹⁹

Garmin

GT34UHD-THP

500w Ultra High Definition ClearVu/SideVu Transducer

010-12776-11

Disponibles (4)

$1,449⁹⁹

Garmin

GT34UHD-TM

500w Ultra High Definition ClearVu/SideVu Transducer

010-12776-00

Disponibles (8)

$299⁹⁹

Garmin

GT36-TM + GT15M-IH

In-Hull Transducer w/ Transom Mount Package

010-02536-10

Out of stock

$629⁹⁹

Garmin

GT36-TM + GT8HW-IH

In-Hull Transducer w/ Transom Mount Package

010-02536-00

Disponibles (4)

$549⁹⁹

Garmin

GT51M-TH

500w Medium CHIRP/ClearVu/SideVu Thru-Hull Transducer

010-01966-10

Muy poca disponibilidad (1)

$949⁹⁹

Garmin

GT51M-THP

500w Medium CHIRP/ClearVu/SideVu Thru-Hull Pair Transducer

010-01966-11

Disponibles (3)

$1,699⁹⁹

Garmin

GT51M-TM

500w Medium CHIRP/ClearVu/SideVu Transom Transducer

010-01966-00

Disponibles (17)

$629⁹⁹

Garmin

GT52HW-TM

250w High-Wide CHIRP/ClearVu/SideVu Transom Mount Transducer

010-12405-00

Out of stock

$349⁹⁹

Garmin

GT54UHD-TM

350 W Ultra High Definition Traditional/ClearVu/SideVu Transducer

010-12909-00

Disponibles (25)

$499⁹⁹

Garmin

GT56UHD-TH

Thru-Hull Traditional/ClearVu/SideVu Transducer

010-02732-10

Disponibles (3)

$899⁹⁹

Garmin

GT56UHD-THP

Thru-Hull Pair Traditional/ClearVu/SideVu Transducer

010-02732-11

Disponibles (3)

$1,649⁹⁹

Garmin

GT8HW-TM

250w High-Wide CHIRP Transom Mount Transducer

010-12401-00

Disponibles (4)

$179⁹⁹

Garmin

Transductor GT15M-TM

600w Medium CHIRP Transom Mount Transducer

010-12402-10

Disponibles (4)

$229⁹⁹

Garmin

Transductor GT36UHD-TM

500w Ultra High Definition ClearVu/SideVu Transducer

010-13072-00

(1)

Disponibles (15)

$499⁹⁹

Garmin

Transductor GT56UHD-TM

500w Ultra High Definition High CHIRP/ClearVu/SideVu Transducer

010-13073-00

Disponibles (118)

$599⁹⁹

Garmin

Transductor GT8HW-IH

250w High-Wide CHIRP In-Hull Transducer

010-12401-10

Disponibles (6)

$149⁹⁹

Garmin

Transductor de elemento inclinado a través del casco B164

Bronze 1kW 50/200kHz Tilted Element Thru-Hull Transducer

010-11010-20

Muy poca disponibilidad (1)

$1,349⁹⁹

Garmin

Transductor de montaje en espejo de popa de doble haz

500w 50/200kHz Transom Mount Transducer

010-10272-10

Disponibles (3)

$99⁹⁹

Garmin

Transductor de paso de casco con elemento inclinado y CHIRP alto B175

1kW High CHIRP Tilted Element Thru-Hull Transducer

010-11937-20

Poca disponibilidad (2)

$1,349⁹⁹

Garmin

Transductor de paso de casco con elemento inclinado y CHIRP bajo B175

1kW Low CHIRP Tilted Element Thru-Hull Transducer

010-11938-20

Out of stock

$1,799⁹⁹

Garmin

Cable de alimentación de 8 pines

Power Cable For GPSmap x2/x3 Series

010-12550-00

Disponibles (27)

$29⁹⁹

Garmin

Cover - GPSmap 1523/1543

Protective Cover For GPSmap 15x3

010-12989-04

Out of stock

$39⁹⁹

Garmin

Acoplador de aislamiento PoE

010-10580-10

Disponibles (45)

$69⁹⁹

Garmin

Acoplador de cable de red

010-10580-00

Disponibles (26)

$59⁹⁹

Garmin

Cables NMEA 2000

010-11076-03

Disponibles (40)

$29⁹⁹

Garmin

Cables de red

6' Marine Network Cable

010-10550-00

(1)

Disponibles (79)

$39⁹⁹

Garmin

Conector de instalación en campo NMEA 2000

010-11094-00

Disponibles (3)

$54⁹⁹

Garmin

Conector en T NMEA 2000

010-11078-00

Disponibles (147)

$29⁹⁹

Garmin

Conector en T de 4 puertos NMEA 2000

010-11078-01

Disponibles (55)

$74⁹⁹

Garmin

Field Install Network Connector

010-10603-00

Disponibles (201)

$19⁹⁹

Garmin

NMEA 2000 Cable (13')

010-11076-04

Disponibles (22)

$34⁹⁹

Garmin

NMEA 2000 Cable (19')

010-11076-01

Disponibles (44)

$39⁹⁹

Garmin

NMEA 2000 Cable (32')

010-11076-02

Disponibles (42)

$44⁹⁹

Garmin

NMEA 2000 Cable (6')

010-11076-00

Disponibles (122)

$34⁹⁹

Garmin

NMEA 2000 Female Terminator

010-11081-00

Disponibles (14)

$19⁹⁹

Garmin

NMEA 2000 Field Install Connector (Female)

010-11095-00

Disponibles (8)

$59⁹⁹

Garmin

NMEA 2000 Inline Terminator

010-11096-00

Disponibles (8)

$24⁹⁹

Garmin

NMEA 2000 Male Terminator

010-11080-00

Disponibles (16)

$19⁹⁹

Ver información

Garmin

NMEA 2000 Power Cable

010-11079-00

Disponibles (53)

$29⁹⁹

Garmin

NMEA 2000 Power Isolator

NMEA 2000 Inline Power Isolator

010-11580-00

Disponibles (7)

$24⁹⁹

Garmin

NMEA 2000 Right Angle Cable (1')

010-11089-01

Disponibles (4)

$29⁹⁹

Garmin

NMEA 2000 Right Angle Cable (6')

010-11089-00

Disponibles (73)

$34⁹⁹

Garmin

NMEA 2000 Starter Kit

010-11442-00

Disponibles (26)

$119⁹⁹

Garmin

Network Cable (20')

20' Marine Network Cable

010-10551-00

Disponibles (54)

$54⁹⁹

Garmin

Network Cable (40')

40' Marine Network Cable

010-10552-00

Disponibles (9)

$69⁹⁹

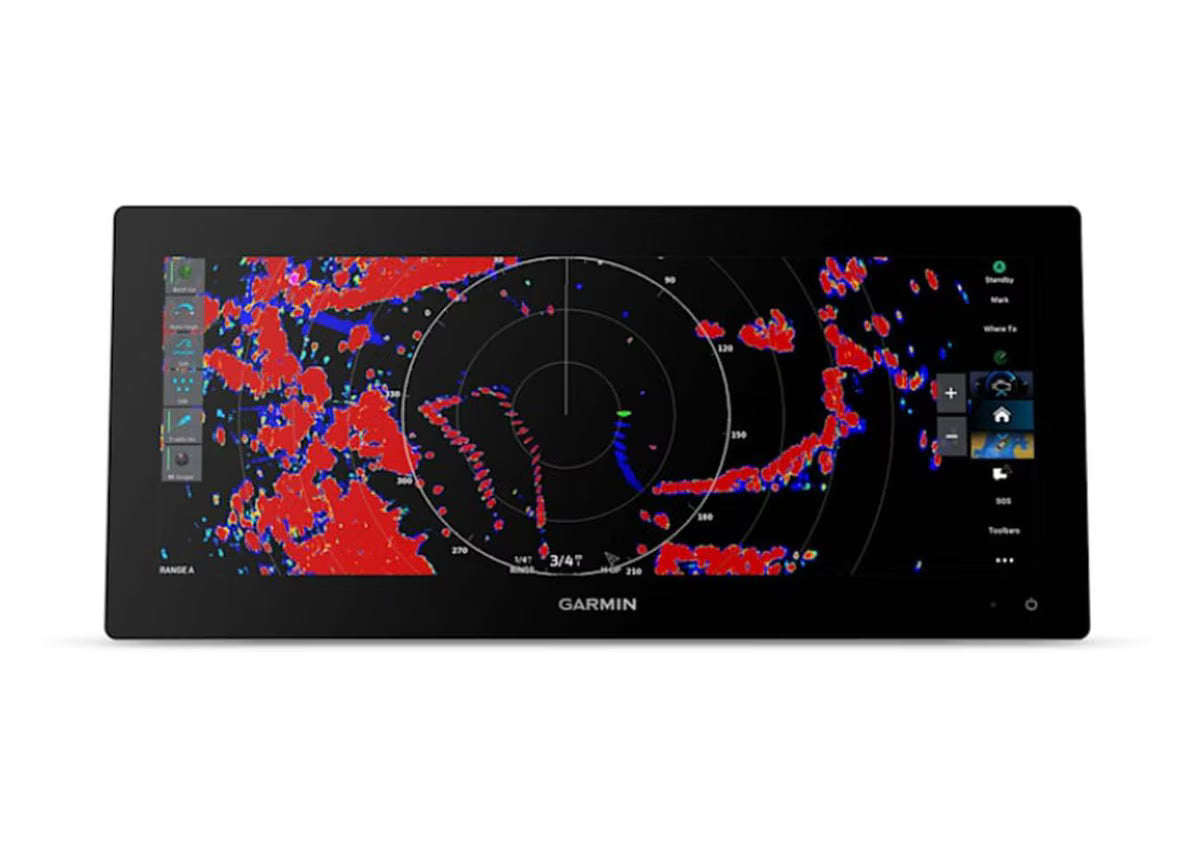

GPSmap 1543xsv Multi-Function Display

Need This Product Installed?

Descripción

WIDEN YOUR HORIZONS

SLEEK MODERN DESIGN

PRELOADED MAPPING

ULTRA HIGH-DEFINITION SCANNING SONAR

Especificaciones

Reseñas (0)

Customer Reviews

In The Box

Support/Warranty

Customers are saying

Su carrito

GPSmap 1543xsv Multi-Function Display

Customer Account

Policies & Returns

Quick Links

Elegir opciones
