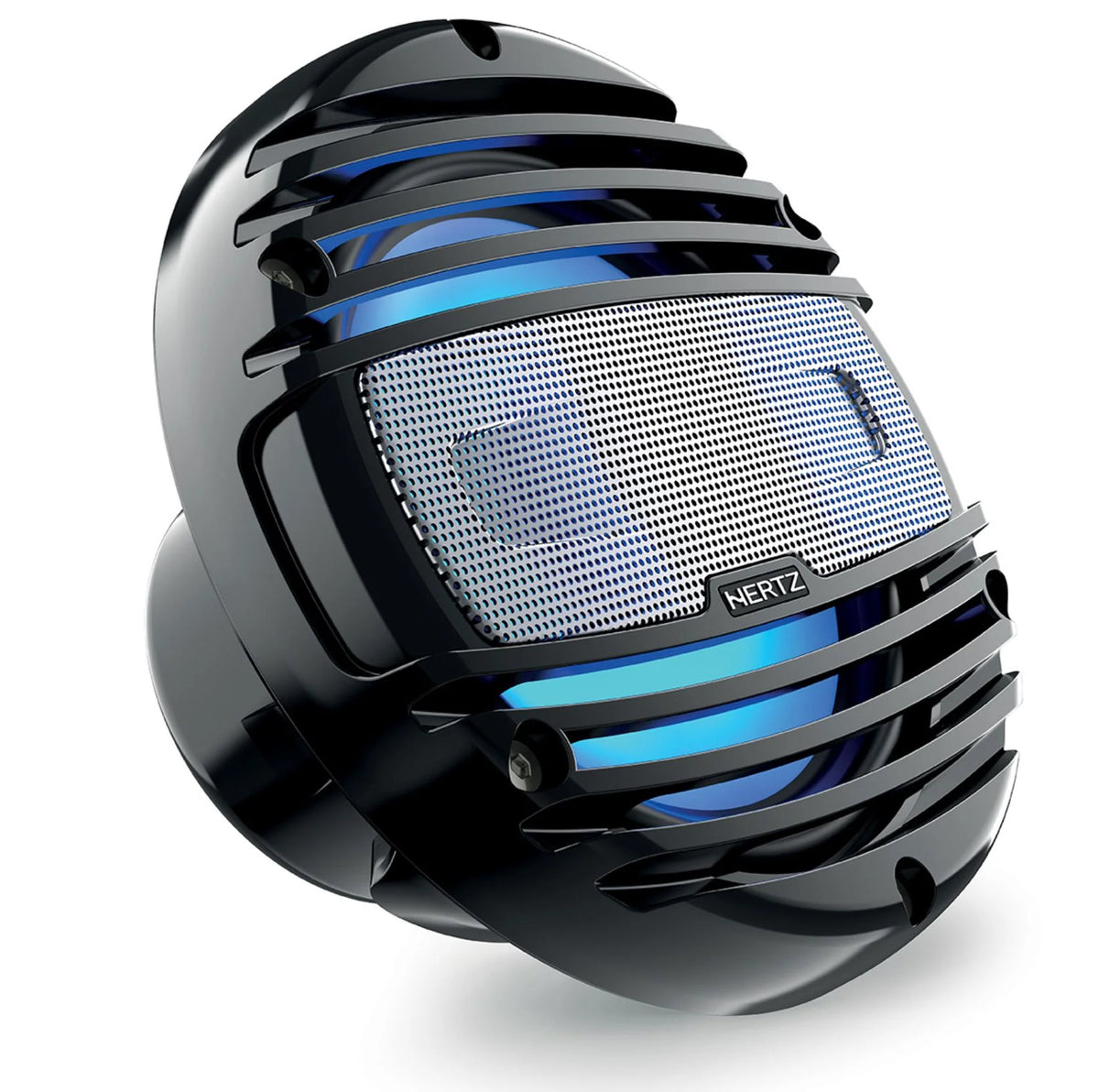

Hertz Audio HMX 6.5" Coaxial Speakers w/ RGB Lighting - HMX-6....
Descripción
Descripción
HMX 6.5 LD-T hi-performance marine coaxial speakers with RGB LEDs lighting option, feature a tone-on-tone front mesh matching the grille color. The tweeter acoustic lens optimizes off-axis dispersion and maximized SPL.
The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Specifications
Specifications
Identification
| MPN | 78040341 |
|---|---|
| Barcode | 8018823137416 |
Dimensions
| Size | 6.5" |
|---|---|
| Diameter | 6.78 in. |
| Depth | 3.76 in. |
| Weight | 2.2 lb |
Mounting Dimensions
| Mounting Hole | 5.04 in. |
|---|---|
| Mounting Depth | 2.72 in. |
| Frontal Grille Protrusion | 1.05 in. |
Audio
| Power Handling (Continuous) | 75 W |
|---|---|
| Power Handling (Peak) | 150 W |
| Sensitivity (SPL) | 89 dB |
| Nominal Impedance | 4 Ω |
| Frequency Response | 50 Hz – 25 kHz |
| Tweeter Diaphragm | 1.4" |
| Woofer Voice Coil Diameter | 1" |
| Tweeter Voice Coil Diameter | 0.8" |
| LED Lighting | Yes - Integrated RGB |
Parameters
| Free Air Resonance (Fs) | 65 Hz |
|---|---|
| Electrical Q (Qes) | 0.75 |
| Mechanical Q (Qms) | 11.5 |
| Total Q (Qts) | 0.7 |
| Equivalent Compliance (Vas) | 0.31 cu ft |
| Mechanical Excursion Limit (Xmech) | ±0.26" |
| Effective Diaphragm Diameter (D) | 4.92 in. |
| DC Resistance (Re) | 3.5 Ω |
| Voice Coil Inductance (Le) | 0.53 mH |
| Mechanical Compliance (Cms) | 0.4 mm/N |
| Moving Mass (Mms) | 14 g |
| Force Factor (BL) | 5.2 T·m |
Materials
| Woofer Magnet | High Density Flux Ferrite |
|---|---|
| Woofer Magnet Size | 3.09 x 1.26 x 0.67" |
| Tweeter Magnet | Neodymium |
| Tweeter Magnet Size | 0.78 x 0.12" |
| Cone Material | Polypropylene with UV Inhibitors |
| Dome Material | PEI |
