Jabsco Electric Toilet Conversion Kit - 12V

Conversion Kit

Convert Jabsco manual toilet compact and regular bowl models to full electric operation without the need to alter existing inlet or discharge seacocks.

• Also converts most toilets with 4 bolt screw pattern on a 3-3/4" diameter bolt circle such as Graco, Raritan, Wilcox Crittenden, Mansfield and Sealand

• Push button flushing for ease and simplicity of operation

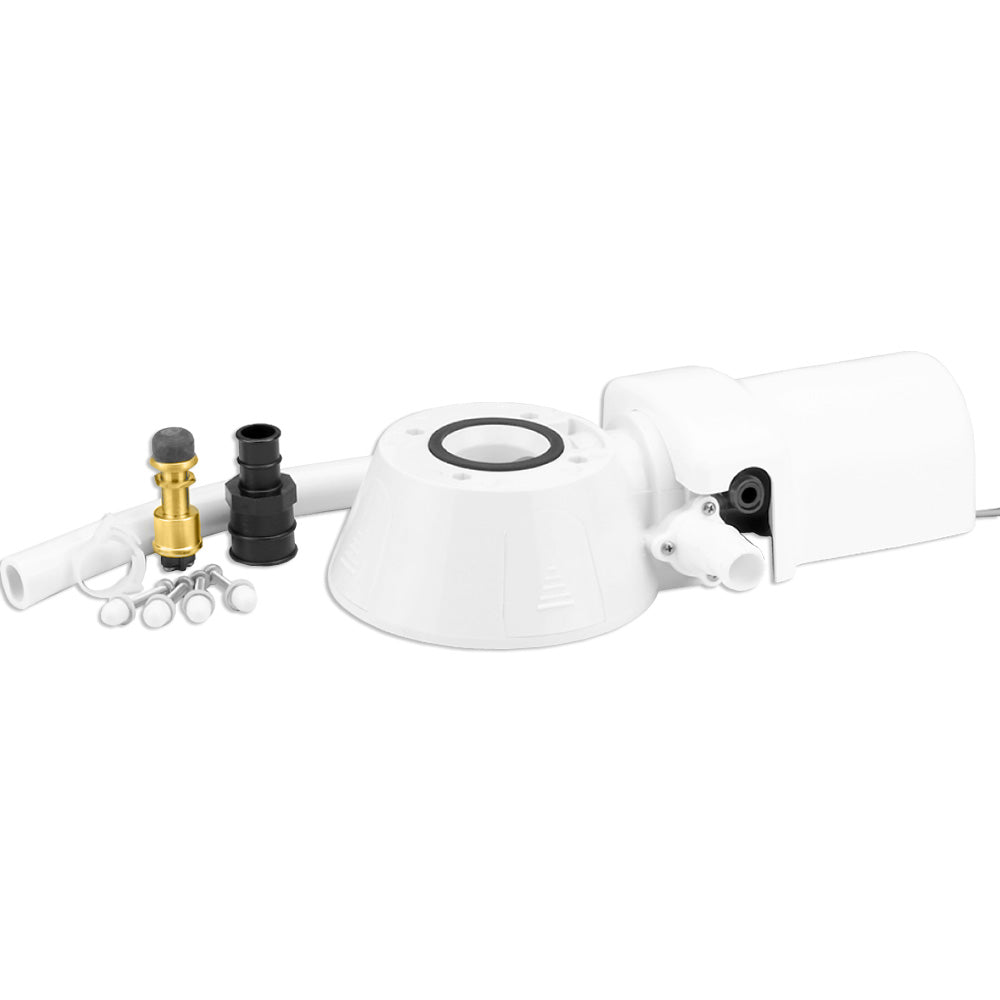

• Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps hose and fastening

• Flushing pump self-priming up to 4ft vertical lift

• May be installed 3ft below the waterline

• For installations fitted with vented loops use a solenoid valve on inlet hose

• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)

Fitting:Connections for 5/8" - 3/4" ID inlet hose, 1" - 1-1/2" ID outlet Hose
Size: 13-1/4" long x 8-1/4" wide x 3-1/4" high

In The Box:

Package Dimensions:

15" x 9" x 4"

Available Method: Ground

• Owner's Manual

* ALL WARRANTY IS THROUGH MANUFACTURE *
