JL Audio | SKU: JLA/010-03324-00 | Código de barras: 699440984065

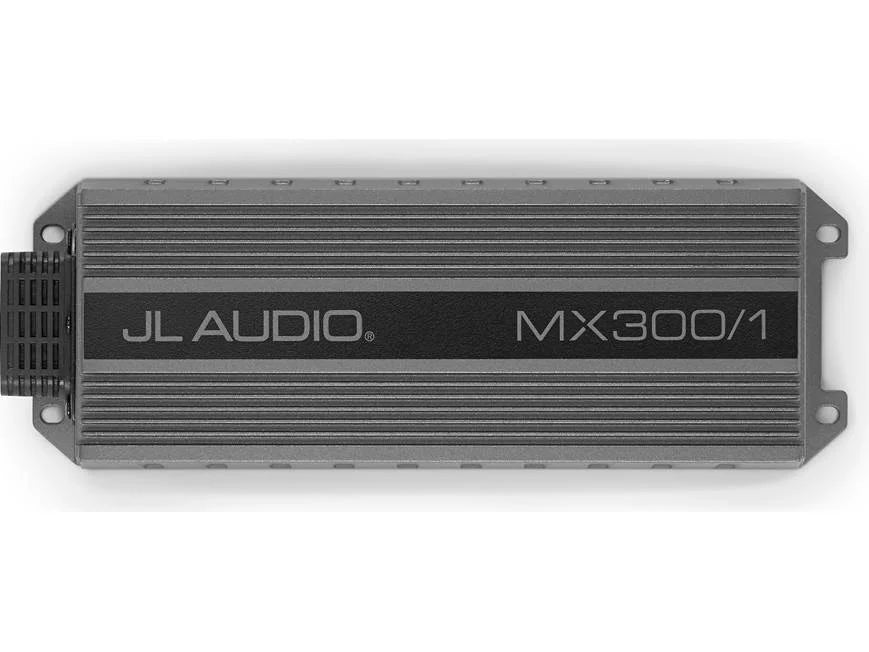

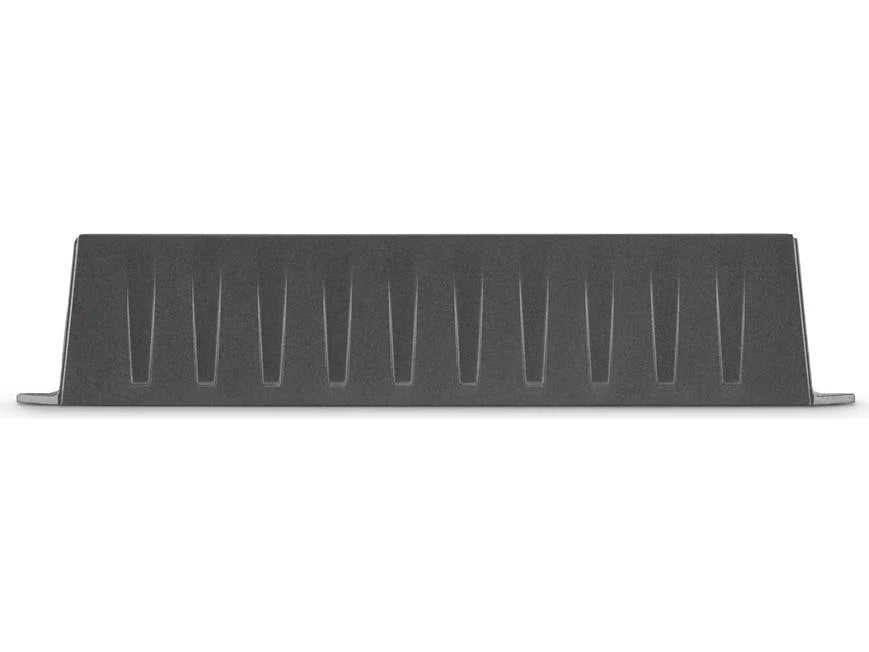

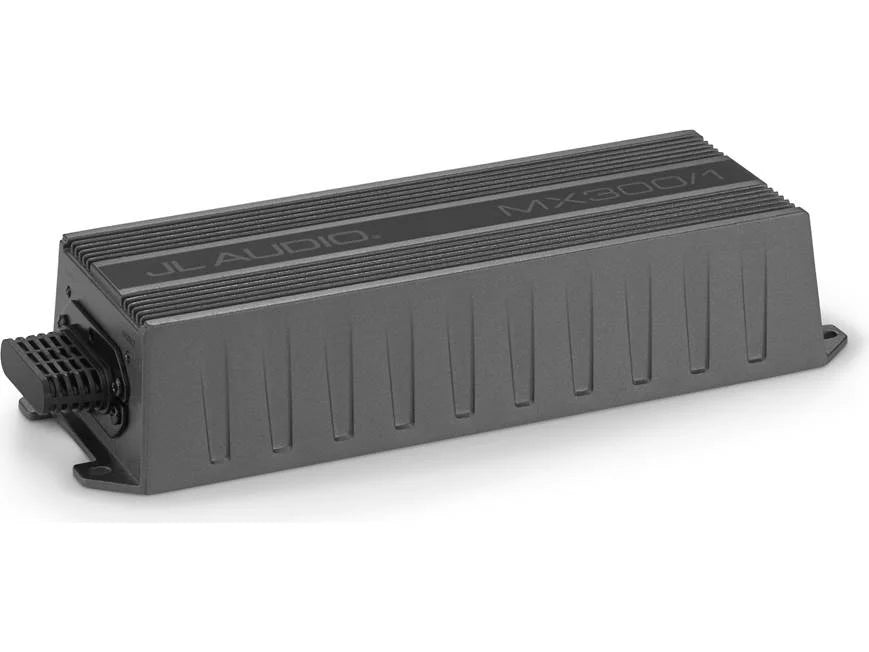

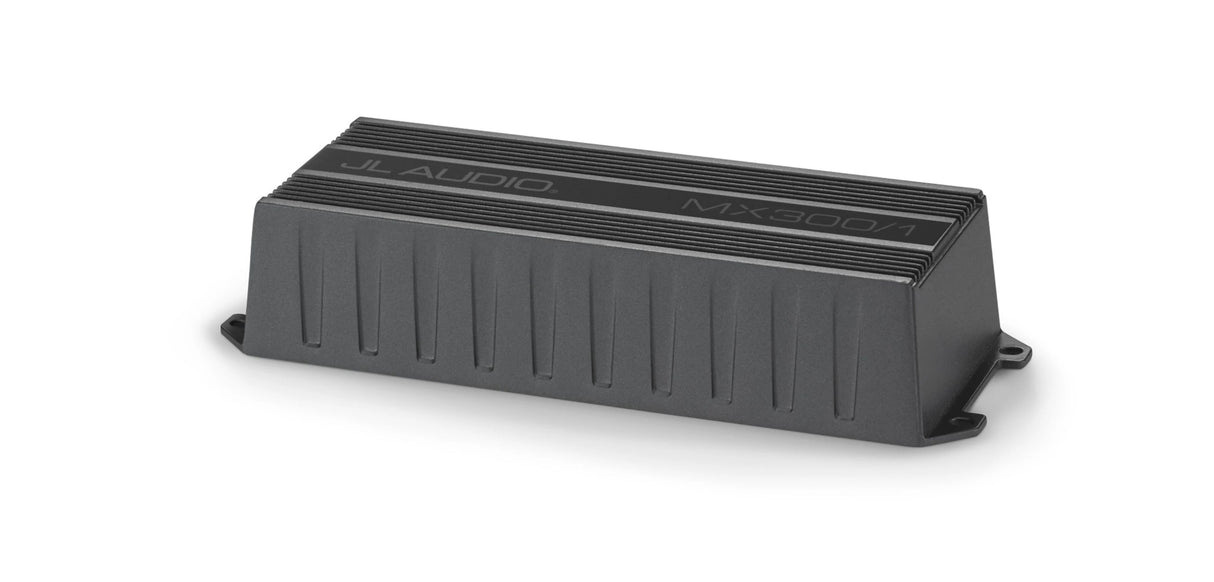

MX300/1

Name: MX300/1
Brand: JL Audio
SKU: JLA/010-03324-00
Price: 379.99 USD
Availability: InStock

Compact 300w Monoblock Amplifier

$379⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

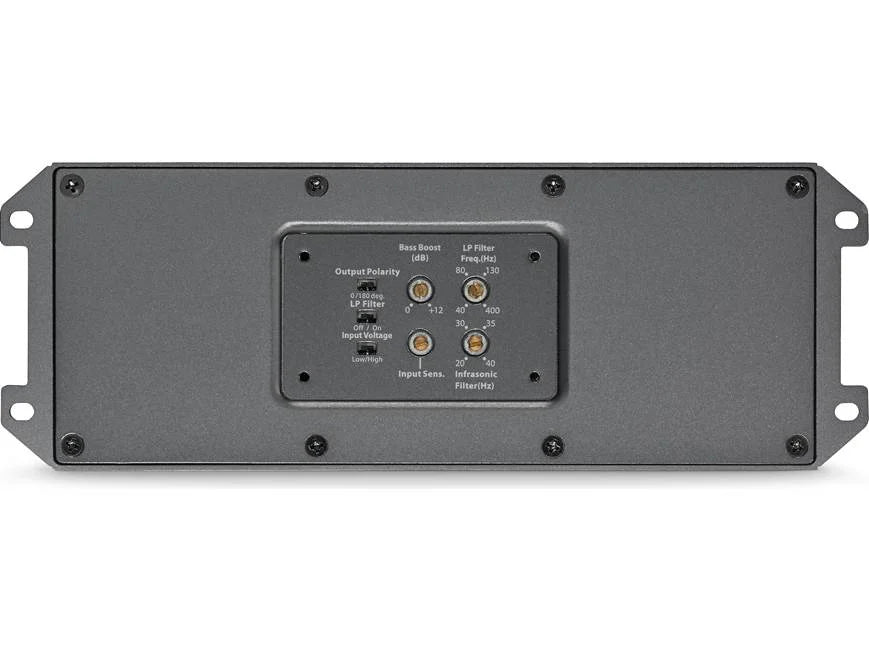

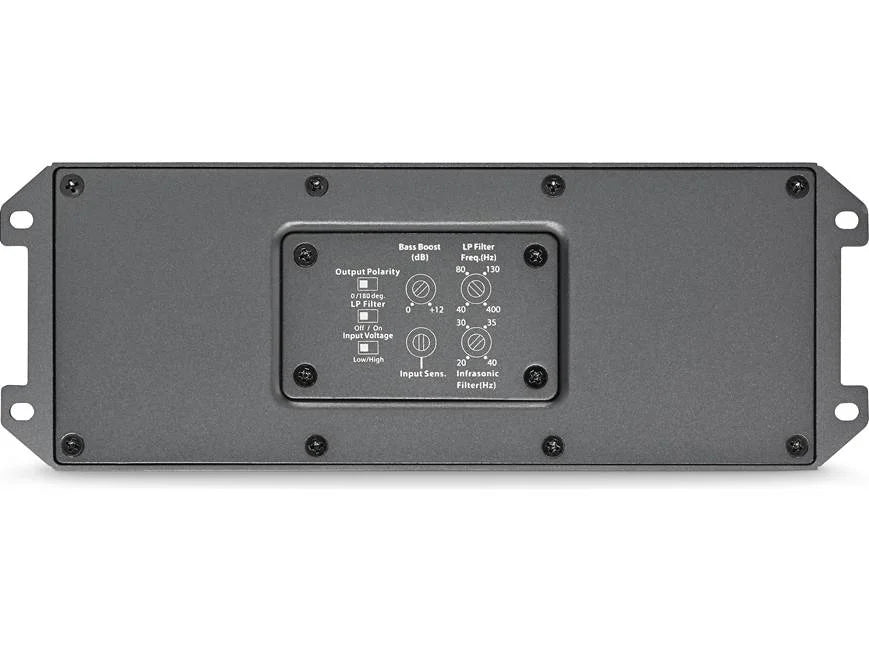

With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.

Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Especificaciones

Product Series

MX
MPN

010-03324-00
Physical

H: 1.77" (45 mm)
W: 8.66" (220 mm)
D: 3.09" (78.5 mm)
Amplifier Power

Amplifier Type: Class D
Continuous RMS Power:
4Ω @ 14.4v = 160 W x 1
2Ω @ 14.4v = 300 W x 1
4Ω @ 12.5v = 160 W x 1
2Ω @ 12.5v = 250 W x 1
Amplifier Processing

Frequency Response: 20 Hz - 20 kHz
Signal to Noise Ratio (Highest Rated Power): 85 dB
Signal to Noise Ratio (1 W): 64 dB
THD+N: 1% @ 2Ω
Damping Factor (4Ω): 120/50 Hz
Damping Factor (2Ω): 75/50 Hz
Amplifier Filters

Input Channel Modes: No
Filter Modes: Off / LPF
Filter Frequency: 40 Hz - 400 Hz
Filter Slope: 12 dB/octave
Infrasonic Filter: No
Bass Boost: Yes (0 - +12dB @ 43Hz)
Pass-Through Pre Out: No
Remote Level Control: Yes
Output Polarity Switch: Yes
Power

Input: 11-15v DC
Connectivity

Harness:
Power Input
CH 1 Input (RCA)
Remote Input
CH 1 Output
Material

Powerder Coated Aluminum
IP Rating

IPx7
