JL Audio | SKU: JLA/010-03326-00 | Código de barras: 699440984096

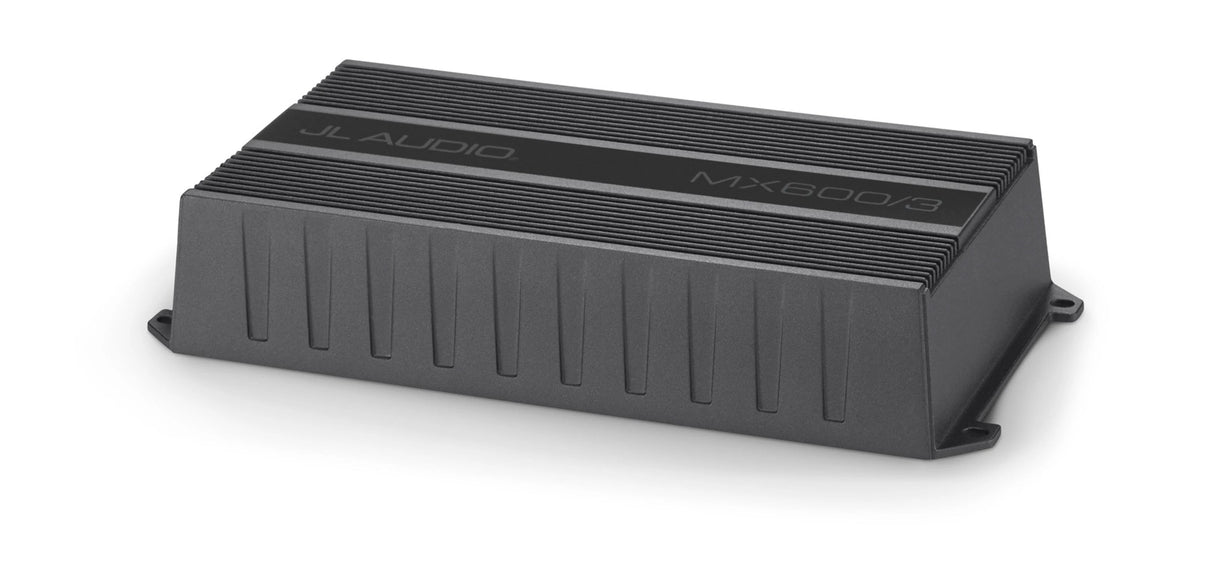

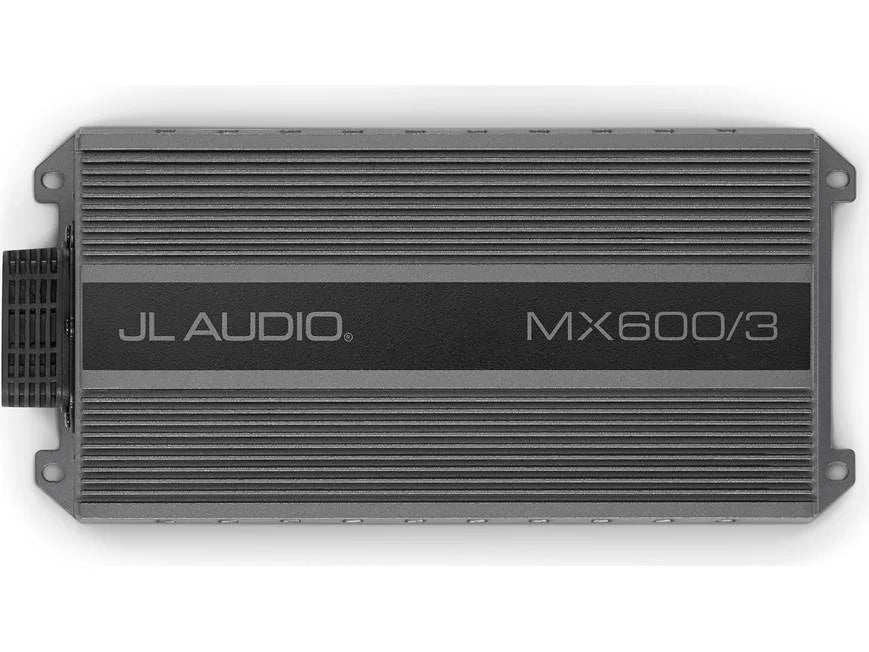

MX600/3

Name: MX600/3
Brand: JL Audio
SKU: JLA/010-03326-00
Price: 579.99 USD
Availability: InStock

Compact 600w 3ch Amplifier

$579⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.

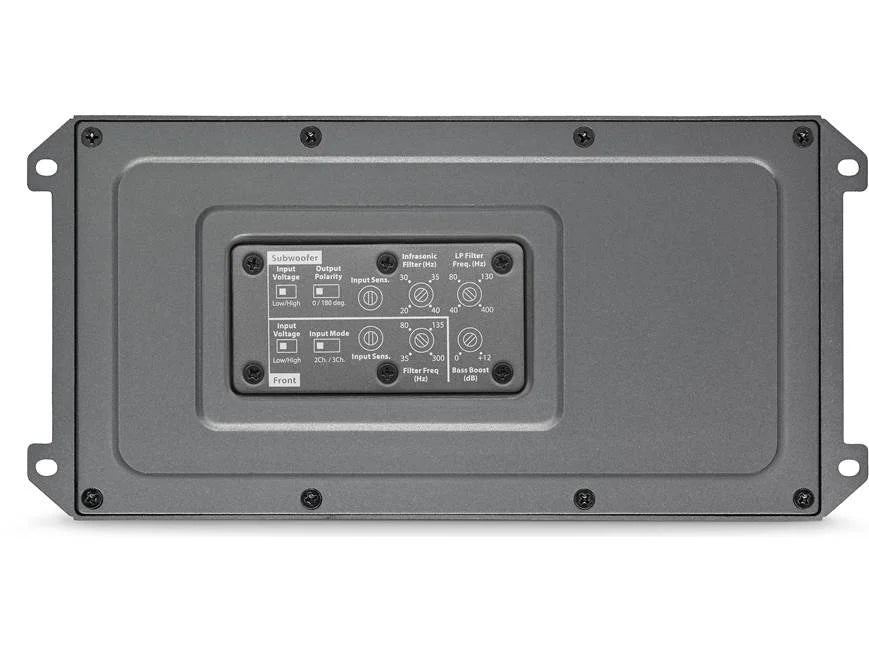

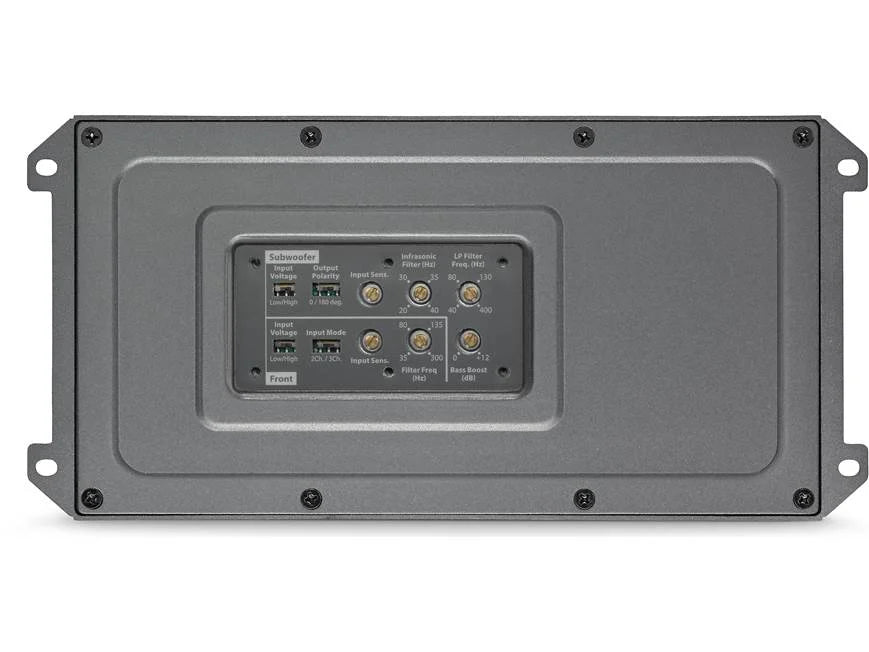

Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Especificaciones

Product Series

MX
MPN

010-03326-00
Physical

H: 1.77" (45 mm)
W: 9.33" (237 mm)
D: 4.50" (115 mm)
Amplifier Power

Amplifier Type: Class D
Continuous RMS Power:
Main Ch:
4Ω @ 14.4v = 75 W x 2
2Ω @ 14.4v = 100 W x 2
Subwoofer Ch:
4Ω @ 14.4v = 250 W x 1
2Ω @ 14.4v = 400 W x 1
Main Ch:
4Ω @ 12.5v = 50 W x 2
2Ω @ 12.5v = 80 W x 2
Subwoofer Ch:
4Ω @ 12.5v = 200 W x 1
2Ω @ 12.5v = 300 W x 1
Amplifier Processing

Frequency Response: 20 Hz - 20 kHz
Signal to Noise Ratio (Highest Rated Power): 88 dB
Signal to Noise Ratio (1 W): 68 dB
THD+N: 1% @ 2Ω
Damping Factor (4Ω): Not Rated
Damping Factor (2Ω): Not Rated
Amplifier Filters

Input Channel Modes: 2ch / 4ch
Filter Modes:
Main Channels: Off / LPF / HPF
Sub Channel: Off / LPF
Filter Frequency:
Main Channels: 40 Hz - 400 Hz
Sub Channel: 40 Hz - 400 Hz
Filter Slope:
Main Channels: 12 dB/octave
Sub Channel: 12 dB/octave
Infrasonic
Power

Input: 11-15v DC
Connectivity

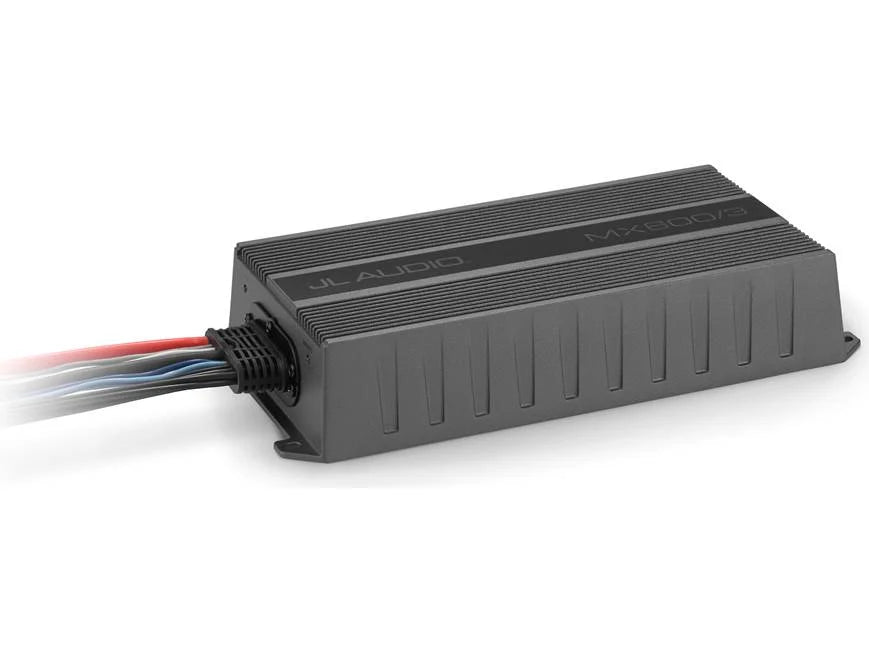

Harness:
Power Input
CH 1/2 Input (RCA)
CH 3/4 Input (RCA)
Sub Input (RCA)
Remote Input
CH 1/2 Output
CH 3/4 Output
Sub Output
Material

Powerder Coated Aluminum
IP Rating

IPx7
