JL Audio | SKU: JLA/010-03338-00 | Código de barras: 699440986489

MV600/6i

Name: MV600/6i
Brand: JL Audio
SKU: JLA/010-03338-00
Price: 1449.99 USD
Availability: InStock

600w 6ch Amplifier w/ Integrated DSP

$1,449⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Outfitted with our second-generation NexD2™ technology, the MV400/4i produces up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, generating up to 200 W x 3.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV600/6i is outfitted with corrosion-resistant hardware and connectors..

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Especificaciones

Product Series

MV/MVi
MPN

010-03338-00
Physical

H: 2.05" (52 mm)
W: 13.96" (355 mm)
D: 6.93" (176 mm)
Amplifier Power

Amplifier Type: Class D
Continuous RMS Power:
4Ω @ 14.4v = 75 W x 6
2Ω @ 14.4v = 100 W x 6
4Ω Bridged @ 14.4v = 200 W x 3
4Ω @ 12.5v = 60 W x 6
2Ω @ 12.5v = 90 W x 6
4Ω Bridged @ 12.5v = 180 W x 3
Amplifier Processing

Frequency Response: 12 Hz - 24 kHz
Signal to Noise Ratio (Highest Rated Power): 99 dB
Signal to Noise Ratio (1 W): 76 dB
THD+N: 1% @ 2Ω
Damping Factor (4Ω): 100/50 Hz
Damping Factor (2Ω): 50/50 Hz
Amplifier Filters

Input Channel Modes: Yes (Software Controlled)
Input Voltage: Software Controlled
Filter Modes: Software Controlled
Filter Frequency: Software Controlled
Filter Slope: Software Controlled
Infrasonic Filter: Software Controlled
Bass Boost: Software Control
Power

Input: 11-14.5v DC
Minimum Wiring: 4awg

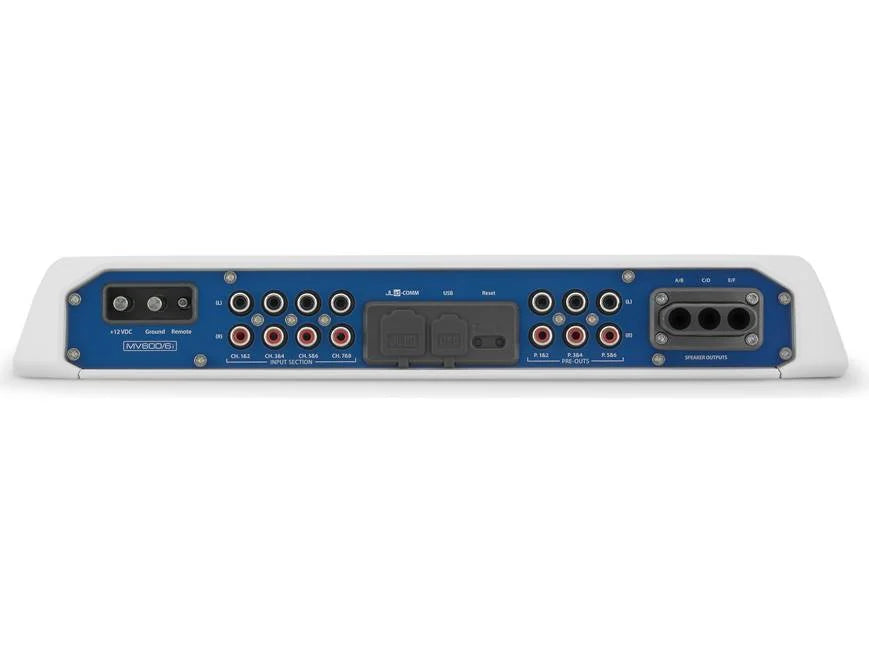

Connectivity

Power Input
CH 1/2 Input (RCA)
CH 3/4 Input (RCA)
CH 5/6 Input (RCA)
JLid Comm Port
USB
CH 1/2 Output
CH 3/4 Output
CH 5/6 Output
Pre-Out (2)
Other

Requires TUN Setup
Material

Powerder Coated Aluminum
IP Rating

IPx2 (Connections Down)
