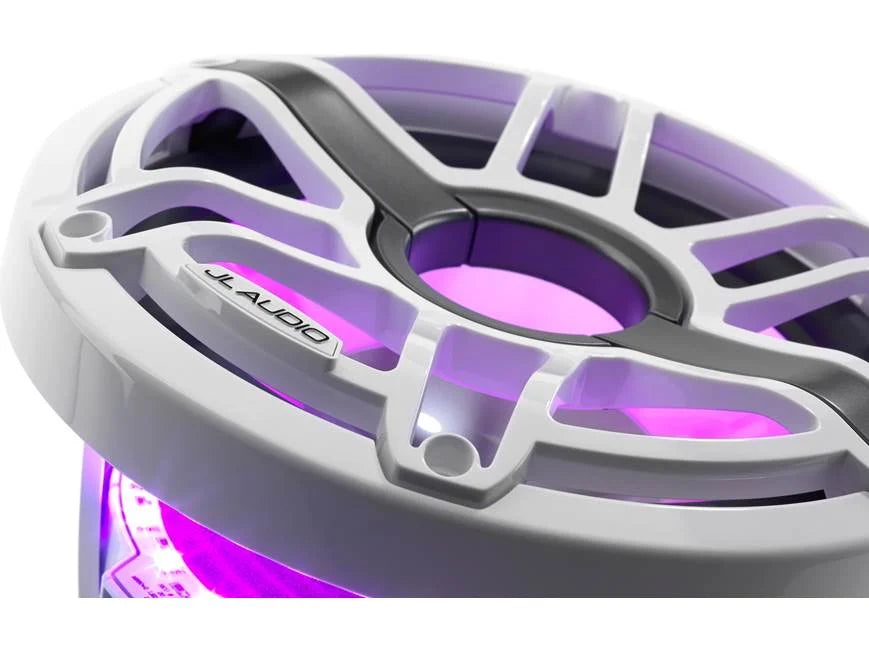

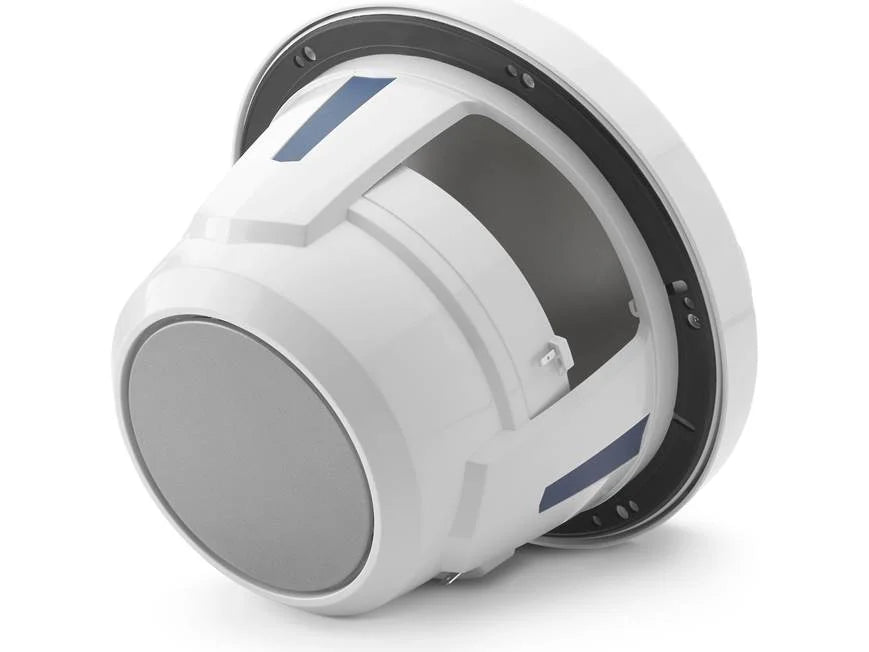

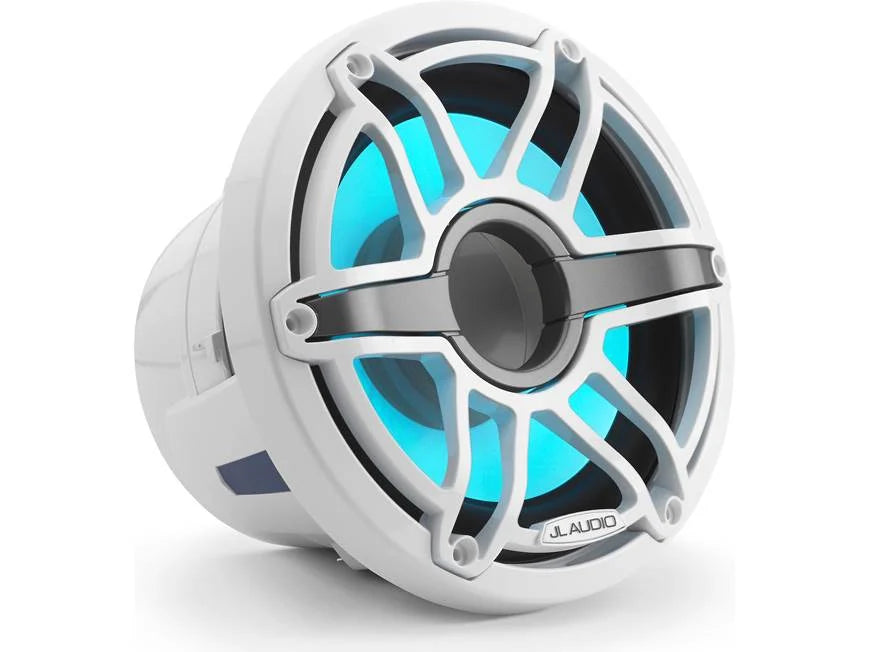

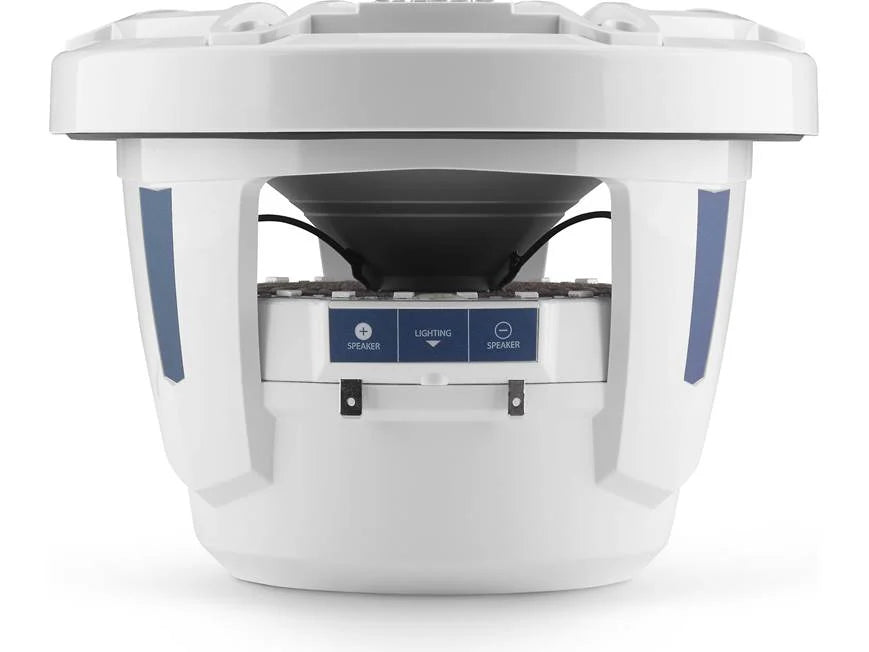

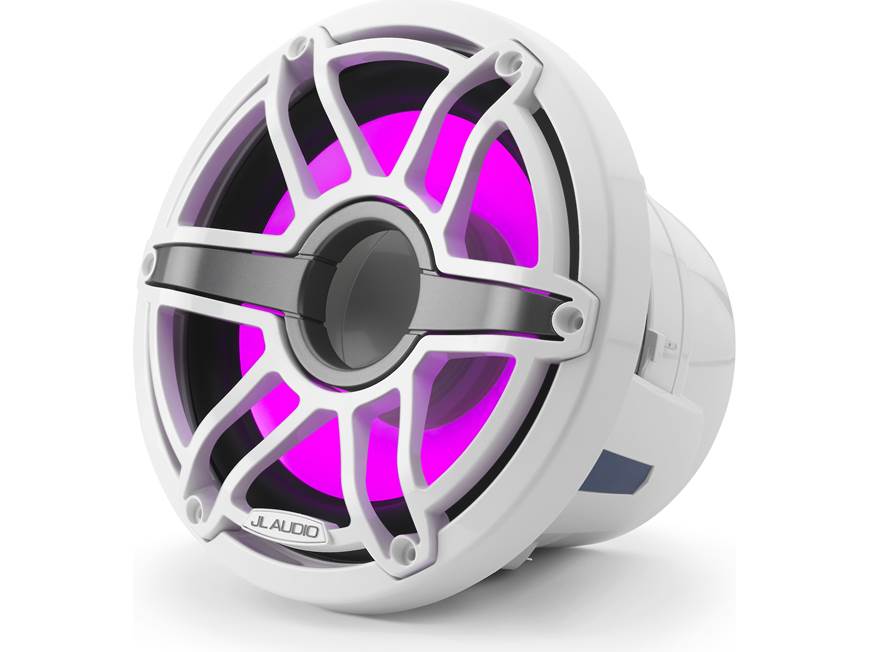

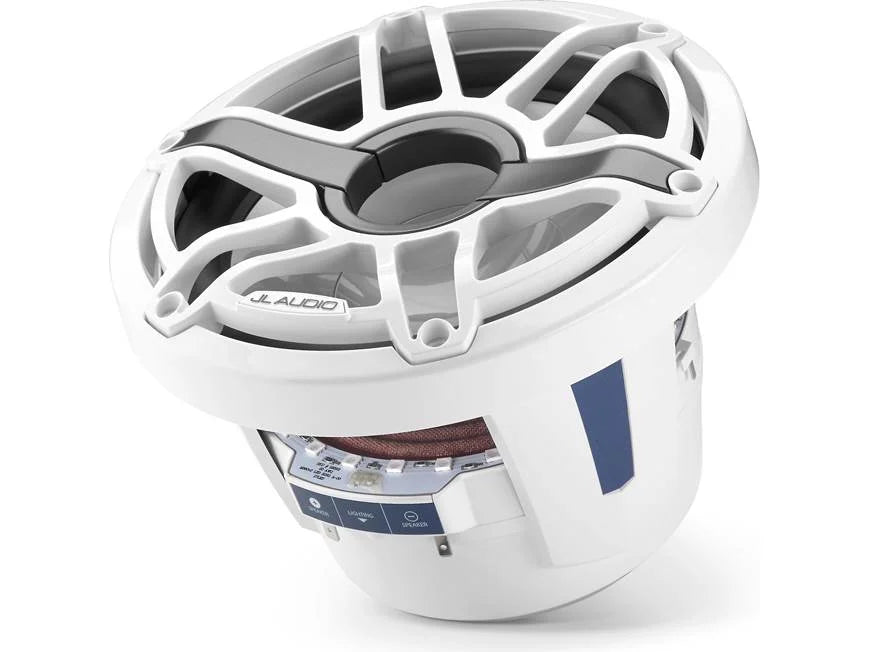

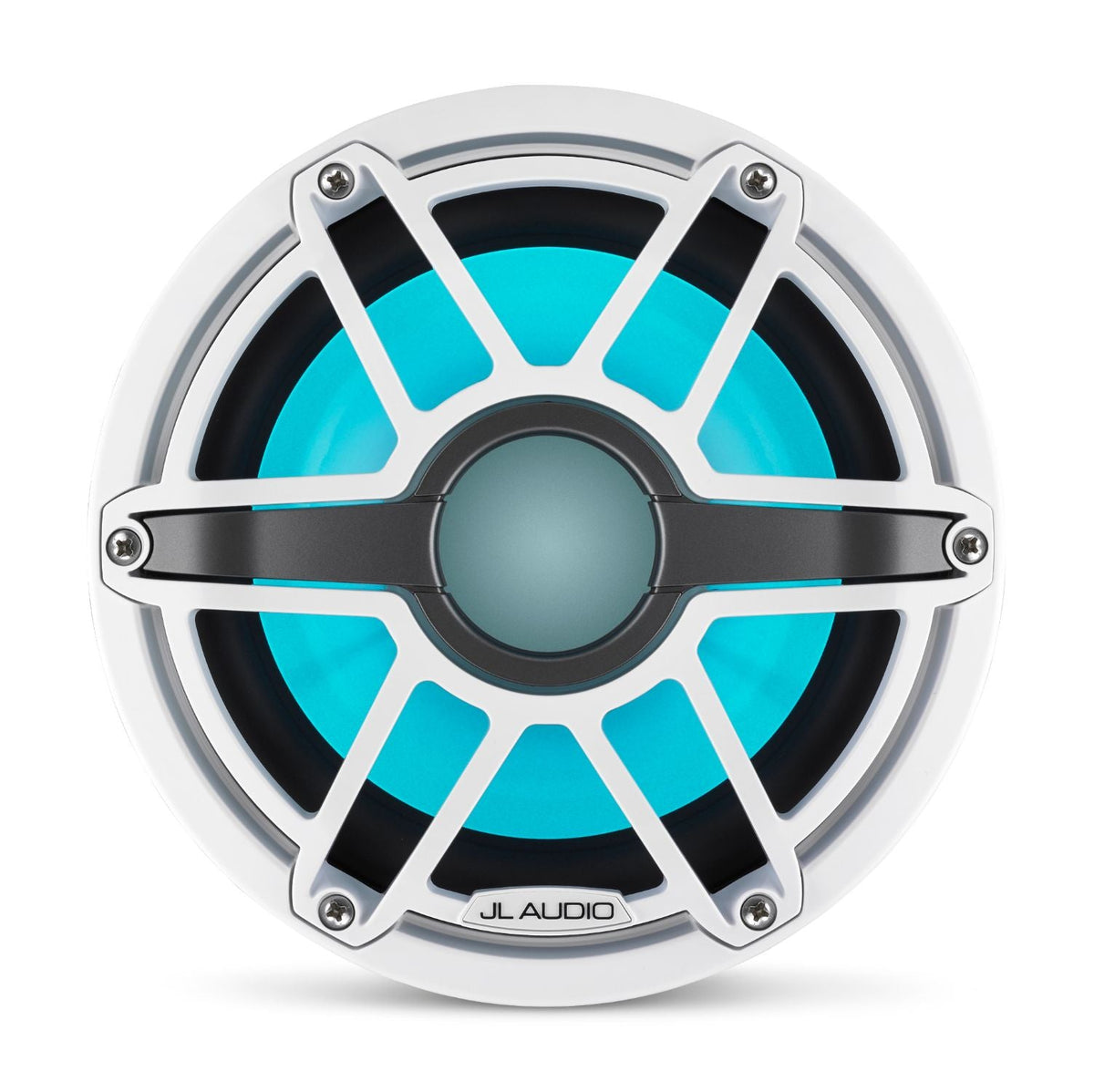

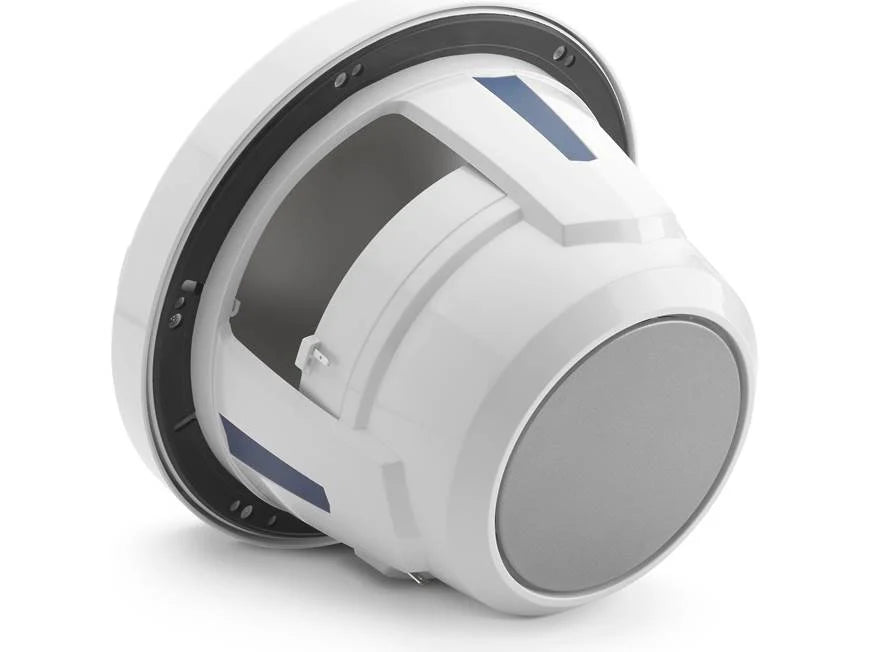

JL Audio M6 8" Marine Subwoofer w/Gloss White Sport Grille & Transflective™ LED Lighting - M6-8IB-S-GwGw-i-4

Name: JL Audio M6 8" Marine Subwoofer w/Gloss White Sport Grille & Transflective™ LED Lighting - M6-8IB-S-GwGw-i-4
Brand: JL Audio
SKU: JLA/010-03081-00
Price: 399.99 USD
Availability: InStock

SKU: JLA/010-03081-00

$399⁹⁹

Options

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

M6 8" Marine Subwoofer with Gloss White Sport Grille & Transflective™ LED Lighting - M6-8IB-S-GwGw-i-4

MAXIMUM PERFORMANCE

Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.

Features

Delivers powerful deep bass in open-air applications
Grille and trim ring are easily removable for painting
Transflective™ RGB LED lighting
Exceeds international standards for salt fog and UV exposure
3-Year Warranty

World-Class Performance

This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.

Model Specific

Optimized to perform in compact enclosures

Powerfully Efficient

M6 marine subwoofers are designed to benefit from operation with quality amplification.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Transflective™ RGB LED Lighting

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

Specifications

Identification

MPN	010-03081-00
Barcode	699440936187

Dimensions

Size	8"
Diameter	8.80" (224 mm)
Depth	6.45" (164 mm)
Weight	8.70 lbs (3.90 kg)

Mounting Dimensions

Mounting Diameter Clearance	5" (127 mm)
Frontal Grille Protrusion	1.45" (37 mm)
Mounting Hole	7.375" (187 mm)
Bolt Hole Circle	7.97" (202 mm)
Driver Displacement	0.033 cu ft (0.93 L)

Audio

Speaker Type	Infinite Baffle
Continuous Power Handling (RMS)	200 W
Sensitivity (SPL @ 1 W/1 m)	86.8 dB
Nominal Impedance	4 Ω
Recommended Amplifier Power (RMS)	50-200 W
Speaker Connections	Spade Connectors
LED Lighting	Yes - Transflective™
LED Supply Voltage	10-14.4 VDC
LED Load Current @ 14.4 VDC (max)	486 mA
LED Connection	Flying Lead with 4-conductor 20 AWG wire

Parameters

Free Air Resonance (FS)	54.92 Hz
Electrical Q (Qes)	0.852
Mechanical Q (Qms)	10.314
Total Q (Qts)	0.787
Equivalent Compliance (Vas)	0.54 cu ft (15.29 L)
One-Way Linear Excursion (Xmax)	0.53" (14 mm)
Reference Efficiency (No)	0.28%
Effective Piston Area (SD)	35.15 in² (0.0227 m²)
DC Resistance (RE)	2.993 Ω

Materials

Color	White Sport
Cone Material	Injection-molded, mica-filled polypropylene

Sealed Enclosure

Wall Thickness	0.75" (19 mm)
Front Baffle Thickness	0.75" (19 mm)
Volume (net int.)	2.00 cu ft (56.6 L)
External Width (W)	16" (406 mm)
External Height (H)	16" (406 mm)
External Depth (D)	18.25" (464 mm)
-3 dB Cutoff Frequency (F3)	51.78 Hz
System Resonance (FC)	61.89 Hz
System Q at Resonance (QTC)	0.8869

Ported Enclosure

Wall Thickness	0.75" (19 mm)
Front Baffle Thickness	0.75" (19 mm)
Volume (net int.)	1.50 cu ft (42.5 L)
External Width (W)	16" (406 mm)
External Height (H)	16" (406 mm)
External Depth (D)	15.125" (384 mm)
Internal Port Diameter (ID)	4" (102 mm)
Port Length (L)	13.5" (343 mm)
Tuning Frequency (FB)	37 Hz
-3 dB Cutoff Frequency (F3)	31.26 Hz
