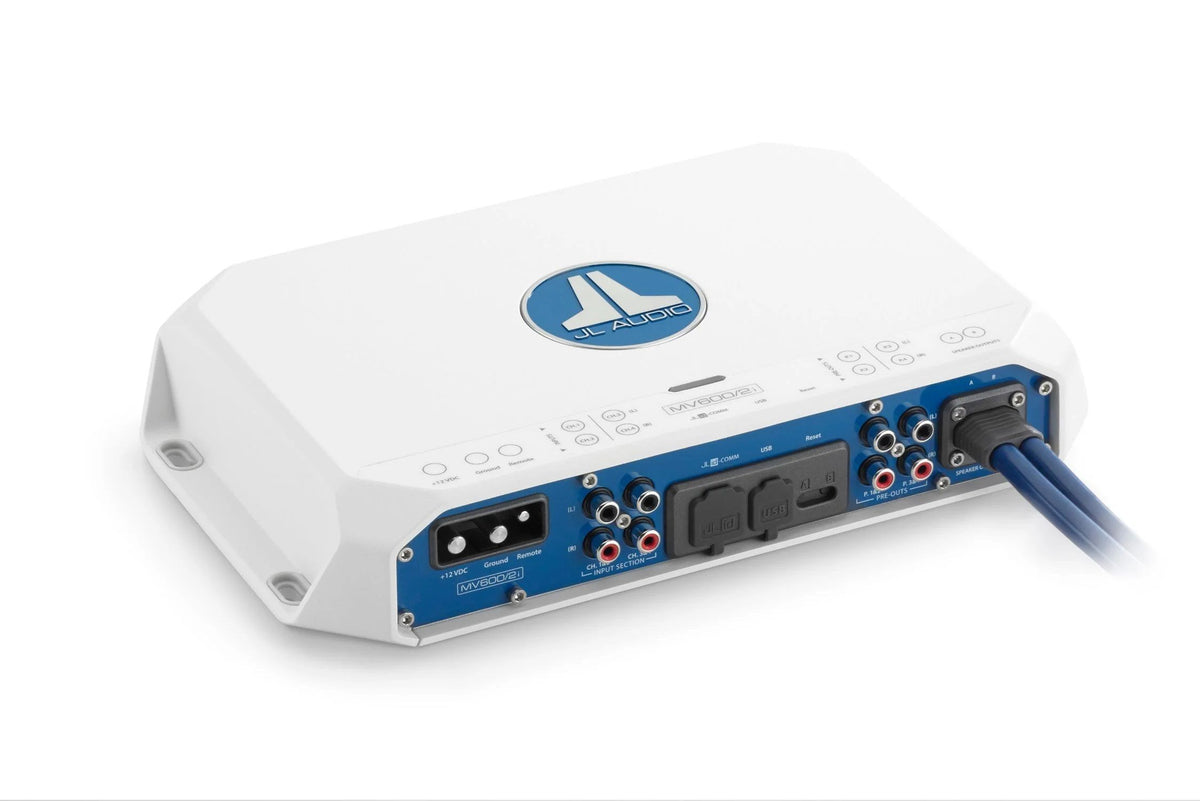

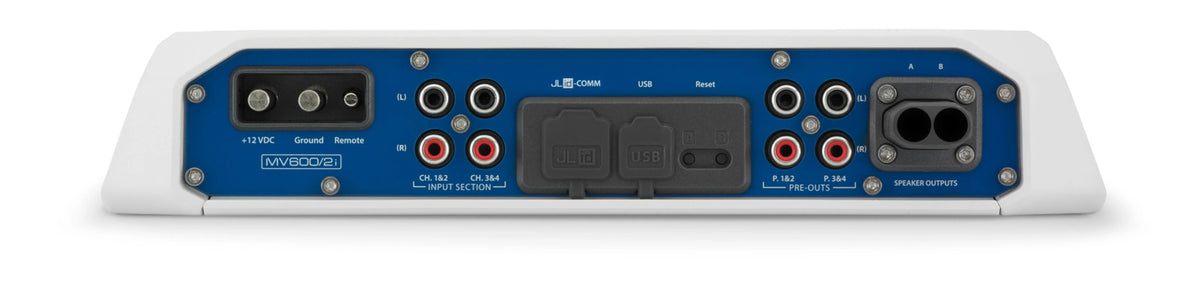

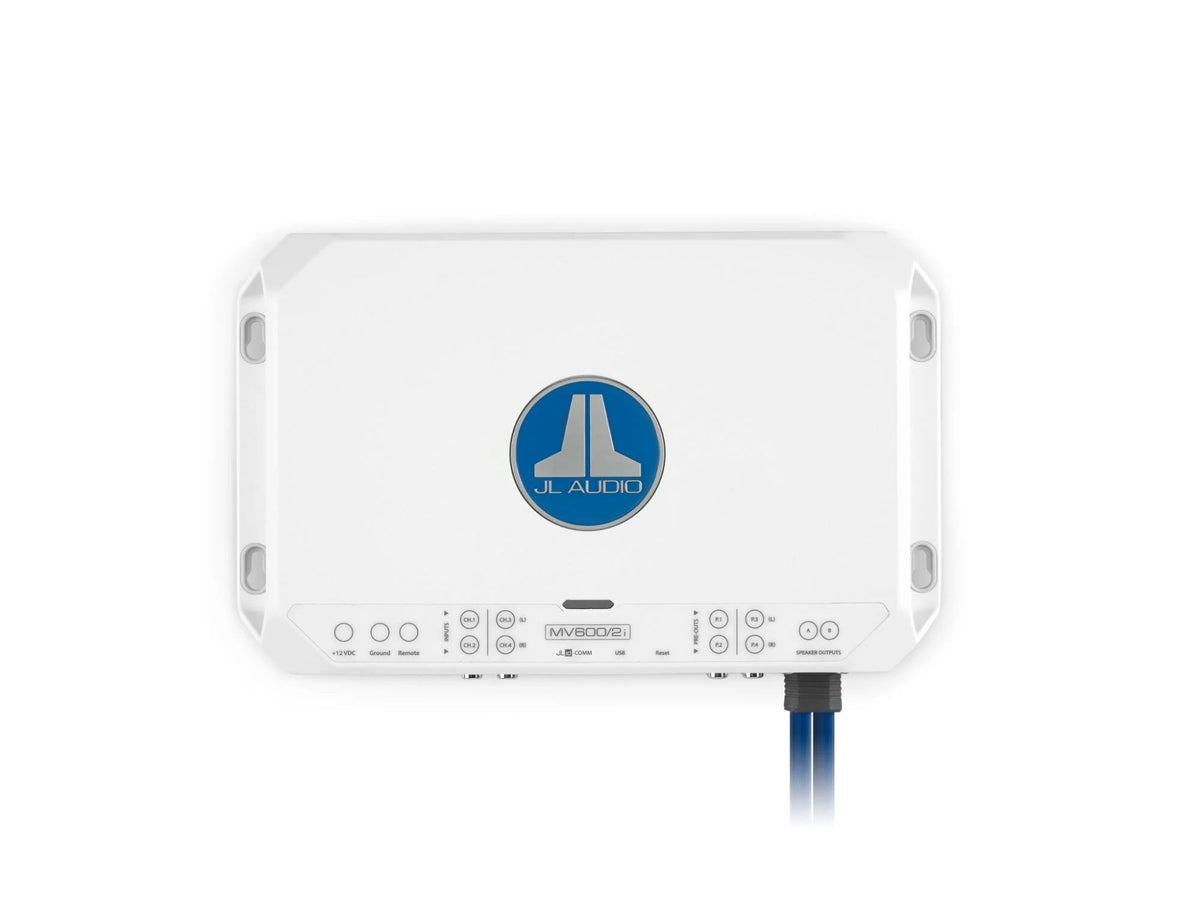

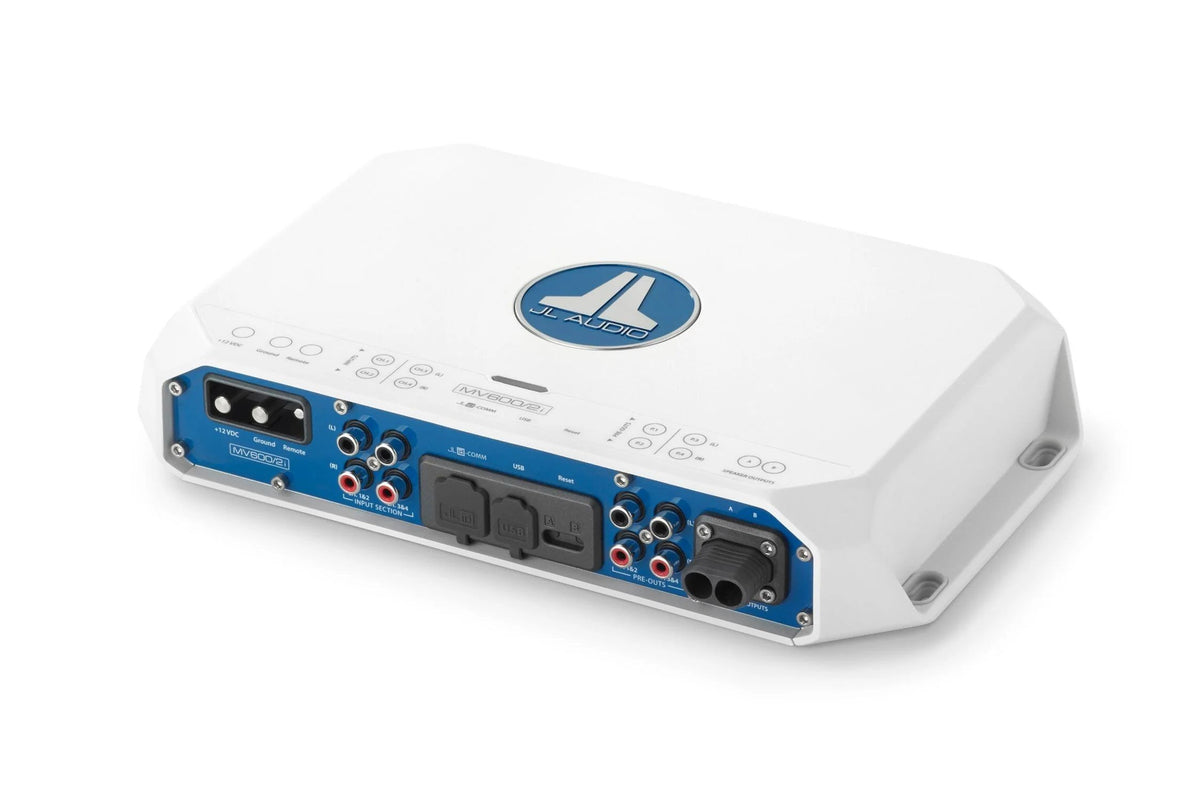

MVI Series 600w 2 Channel Full-Range Amplifier with Integrated DSP - MV600/2i
Reference-Grade Power with Digital Signal Processing (DSP) Technology
Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.
- Comprehensive onboard tuning for exceptional sound quiality
- Advanced output design for pristine power and efficiency
- Easy setup at your fingertips with free TüN software
- Unique design adjusts operation to avoid thermal events
- Exceeds international standards for salt, fog and UV exposure
- 3-Year Warranty
Onboard Tuning Power
Each MVi marine amplifier is packed with a complete package of DSP functions, including equalizer, delay, crossover signal routing, mixing and more.
NEXD2™ Technology-Equipped
Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.
No Knobs and Switches
TüN® is free software from JL Audio that is used to make all setup and audio adjustments. It’s available for download in a variety of applications for computers and most handheld devices.
Differential-Balanced Inputs
A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.
Advanced Rollback Protection
Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.
JLID™ Protocol Command
This proprietary JL Audio protocol provides easy control and communication of all settings for MVi amplifiers and optional JLid accessories.
General
Audio
Specifications
Specifications
Identification
| MPN | 010-03336-00 |
|---|---|
| Barcode | 699440986465 |
Certifications & Protection
| Warranty | 3 Years |
|---|
Audio
| Channels | 2 |
|---|---|
| Amplifier Class | D |
Physical
| Height | 2.05" |
|---|---|
| Width | 11.20" |
| Depth | 6.93" |
| Weight | 5 lbs |
Electrical
| Operating Voltage | 11-15 vdc |
|---|---|
| Fuse Rating | 50A |
| Recommended Fuse Types | AFS, AGU or MaxiFuse™ |
| Min. Copper Power/Ground Wire Gauge | 4 awg |
General
| RMS @ 4 OHM | 180 W RMS x 2/600 W x 1 (Bridged) |
|---|---|
| RMS @ 2 OHM | 300 W x 2 |
