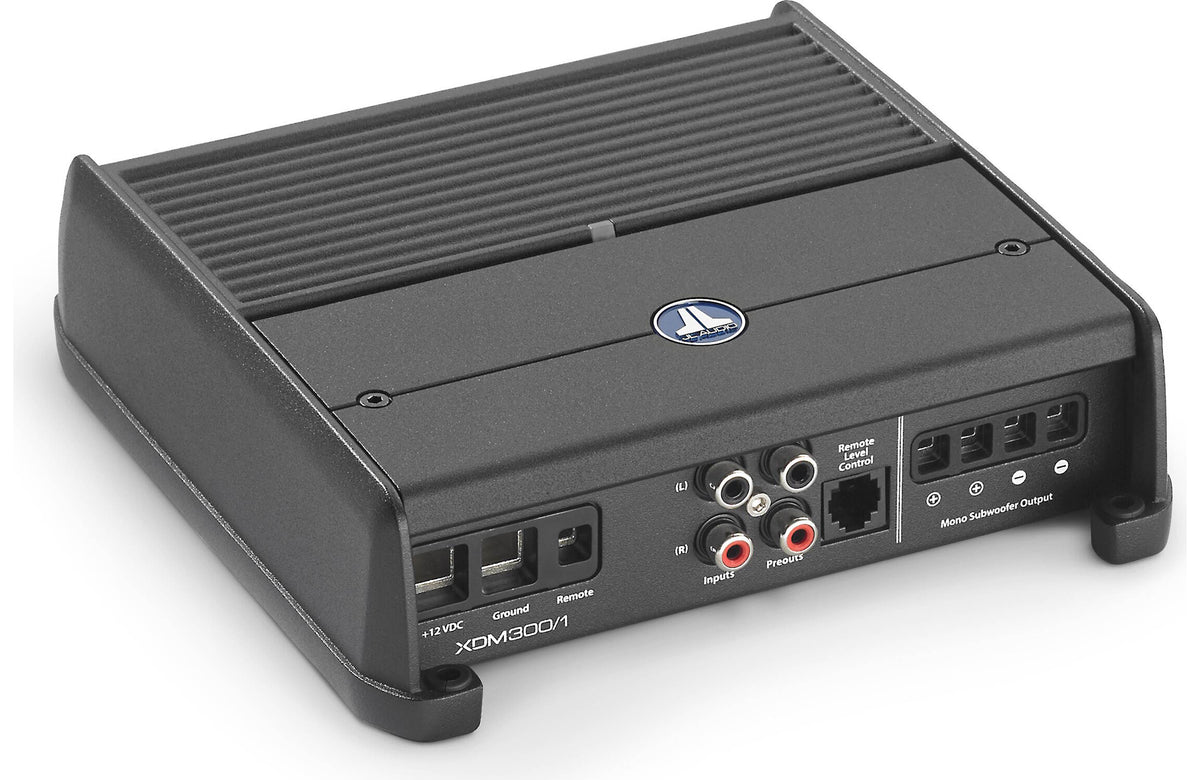

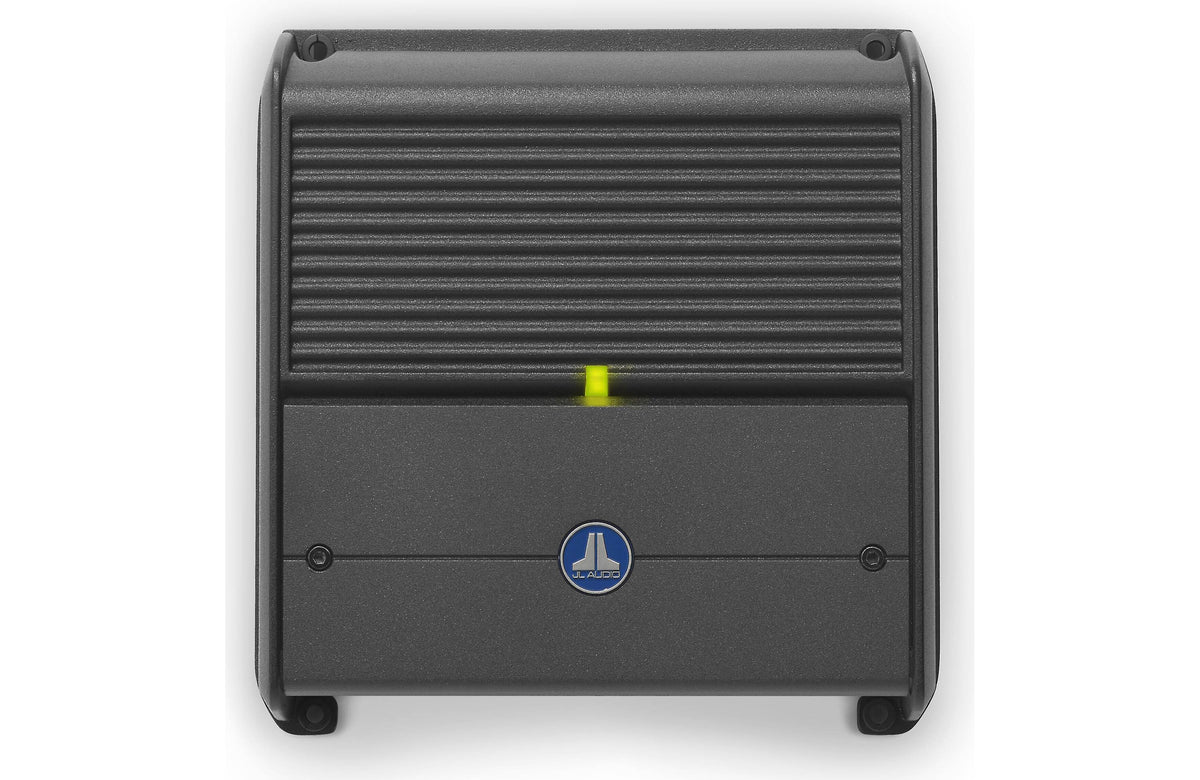

Amplificador XDM 300/1
Descripción
Descripción

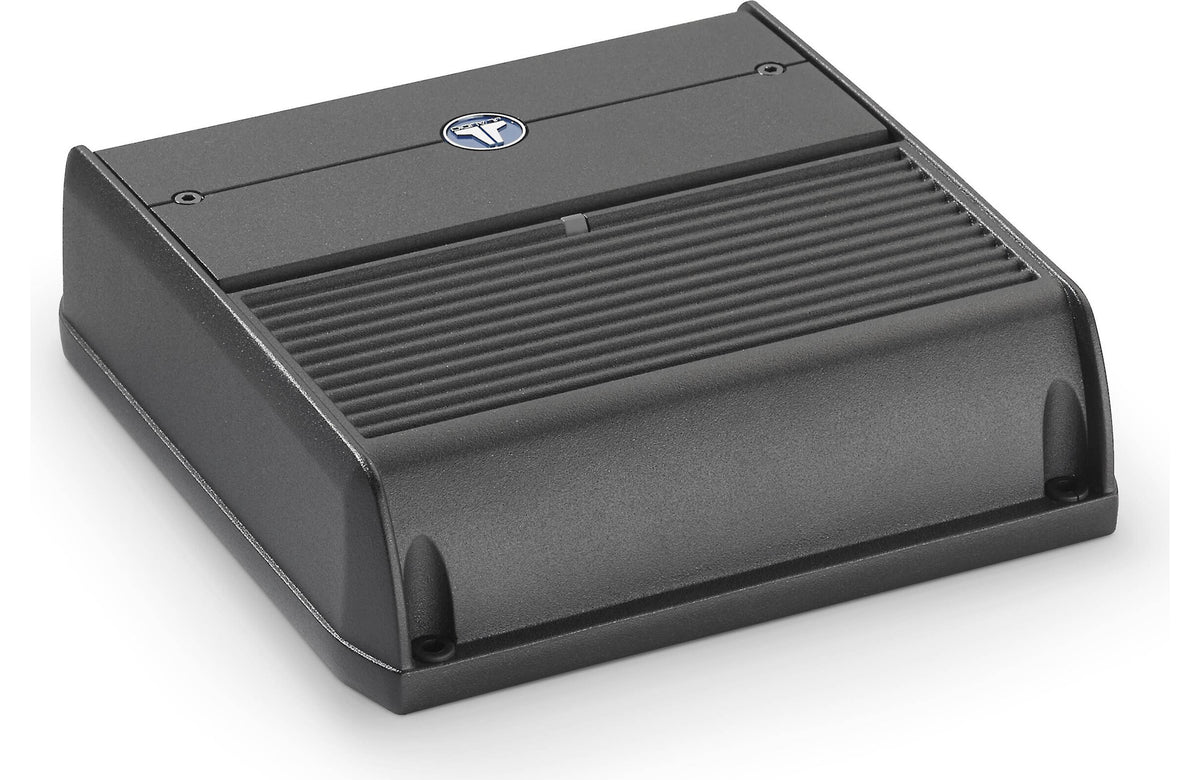

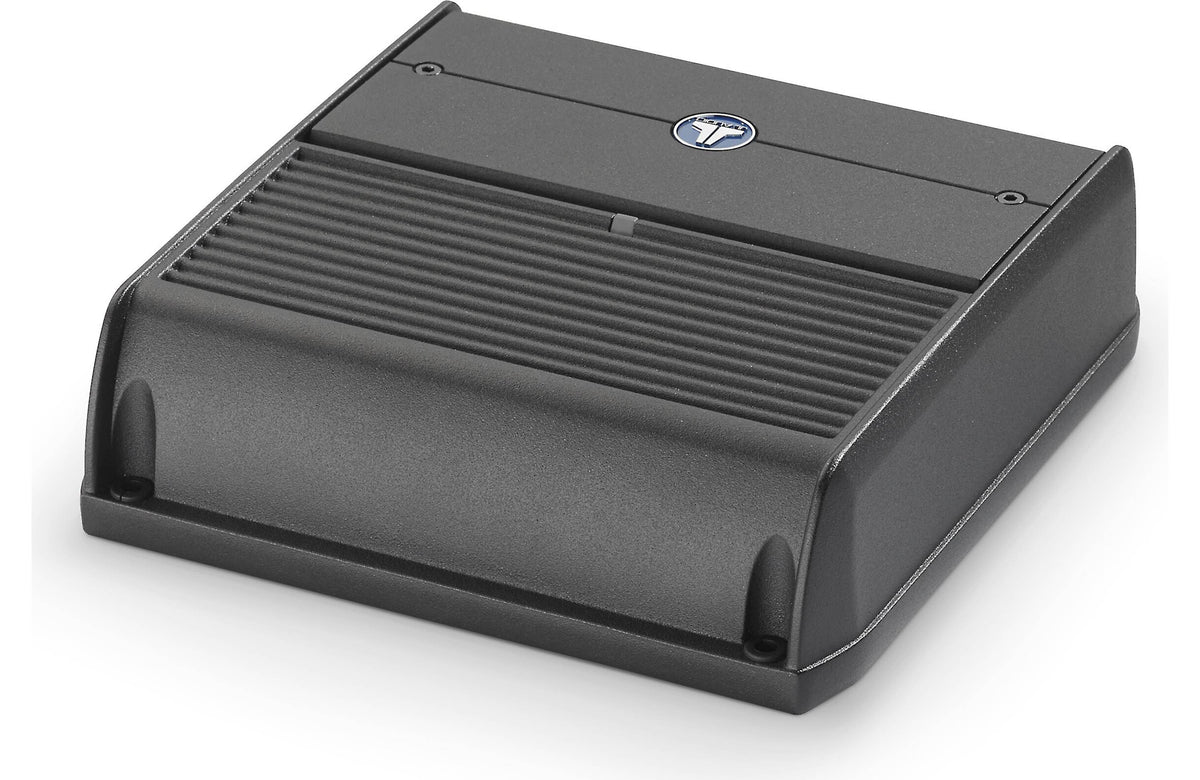

Este pequeño y potente monobloque emplea nuestro diseño de conmutación NexD™ de alta velocidad para lograr una eficiencia sin precedentes y una potencia de salida sorprendente para su tamaño. Es lo suficientemente pequeño como para caber en la mayoría de las aplicaciones con espacios reducidos, incluidos botes pequeños, camionetas, motocicletas y vehículos utilitarios deportivos (en un compartimento hermético).

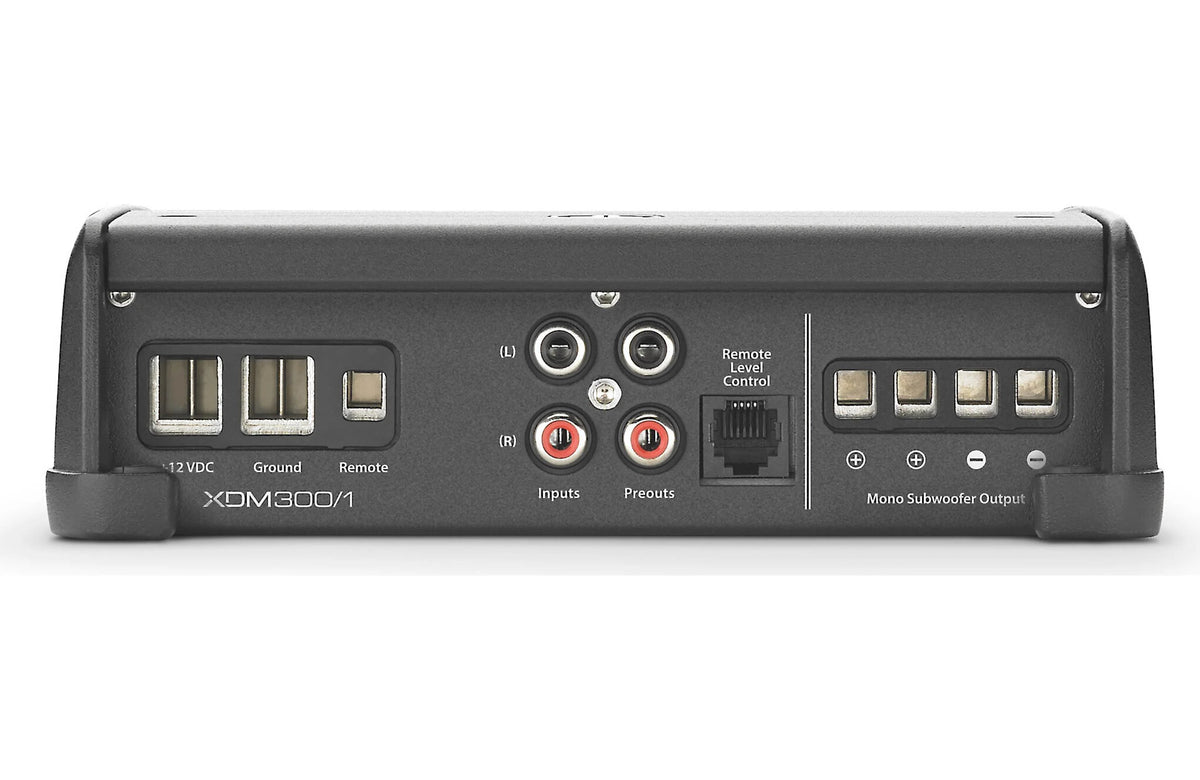

Diseñado para instalaciones en automóviles o embarcaciones, el XDM300/1 está fabricado con materiales de calidad marina y cuenta con un exclusivo filtro de entrada de modo dual para un rendimiento sin ruidos en embarcaciones o automóviles. La capacidad de encendido automático (a través de detección de señal o detección de compensación de CC) también está incorporada para facilitar las actualizaciones del sistema de fábrica.

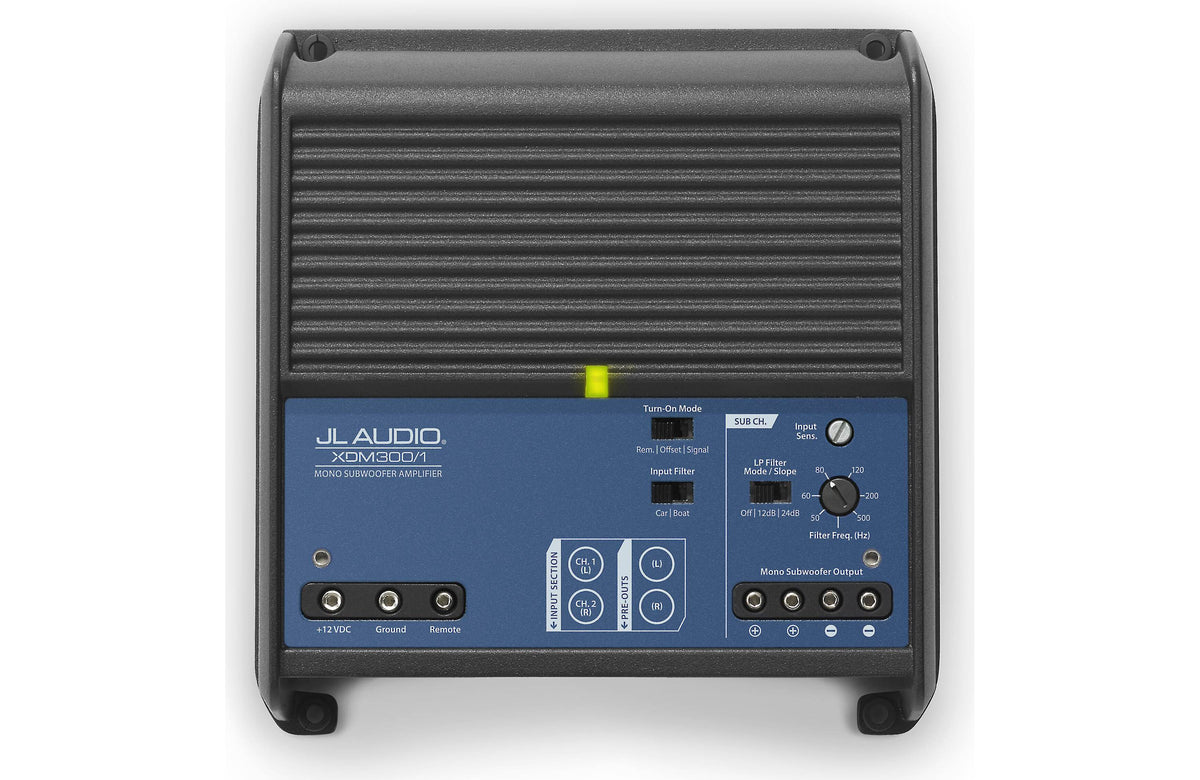

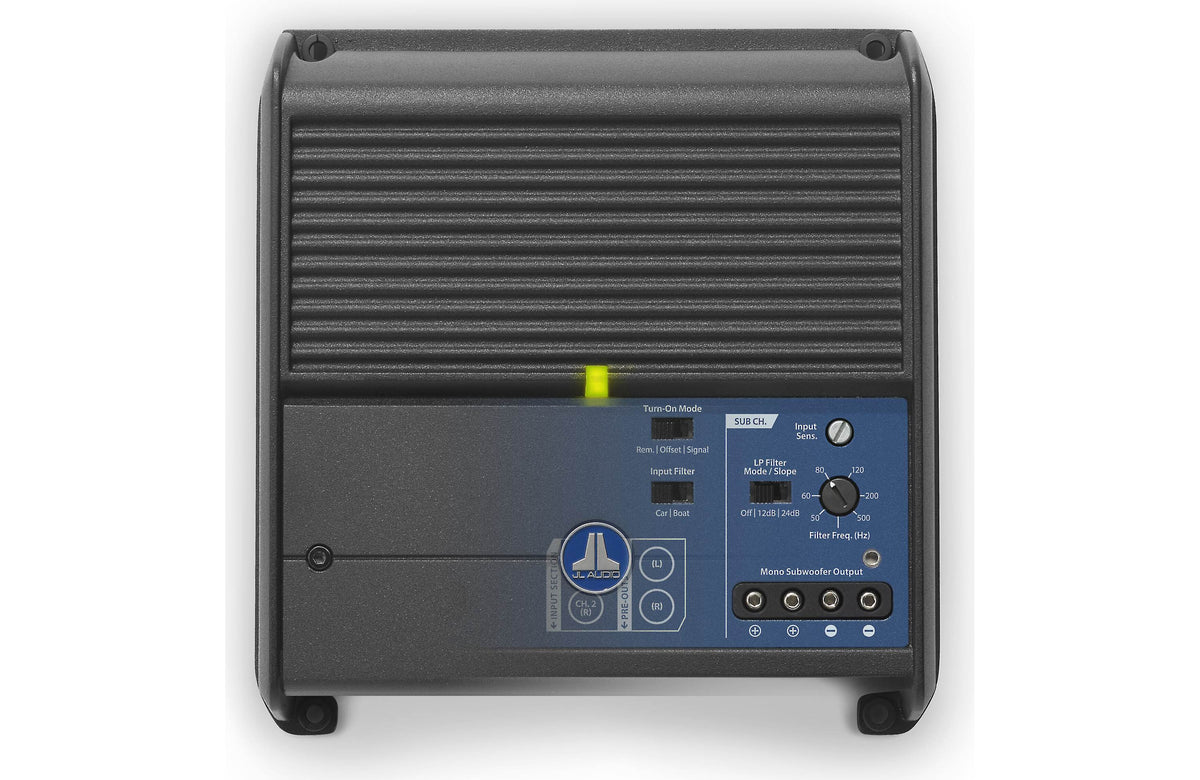

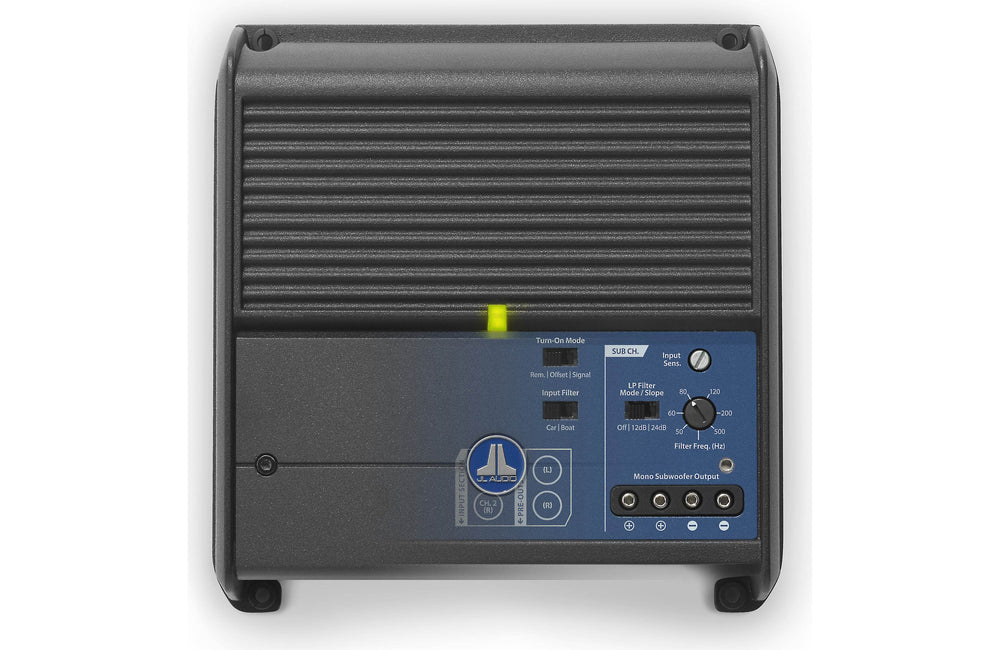

Diseñado específicamente para aplicaciones de subwoofer, el XDM300/1 incluye un filtro de paso bajo de pendiente variable con selección de frecuencia de corte continuamente variable de 50 a 500 Hz. Con la incorporación de un controlador de nivel remoto HD-RLC o MHD-RLC (resistente al agua) opcional (cada uno se vende por separado), el nivel del amplificador se puede ajustar directamente desde el asiento del conductor o del capitán.

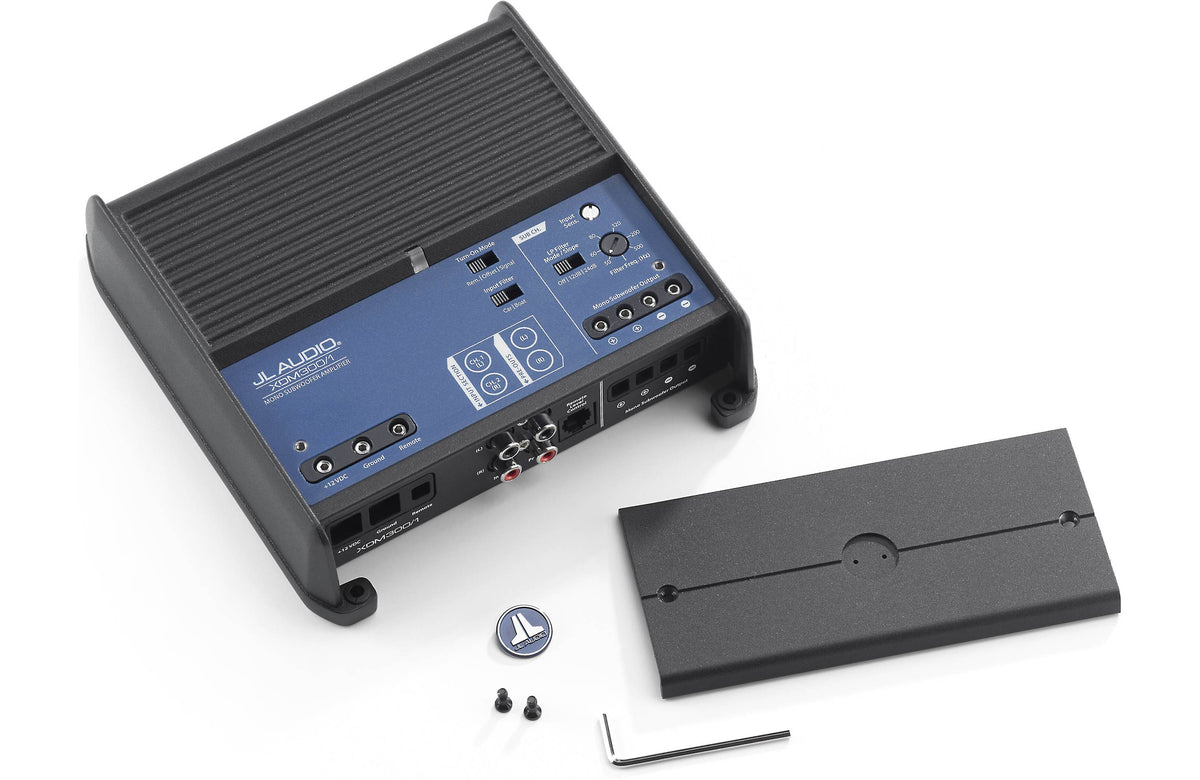

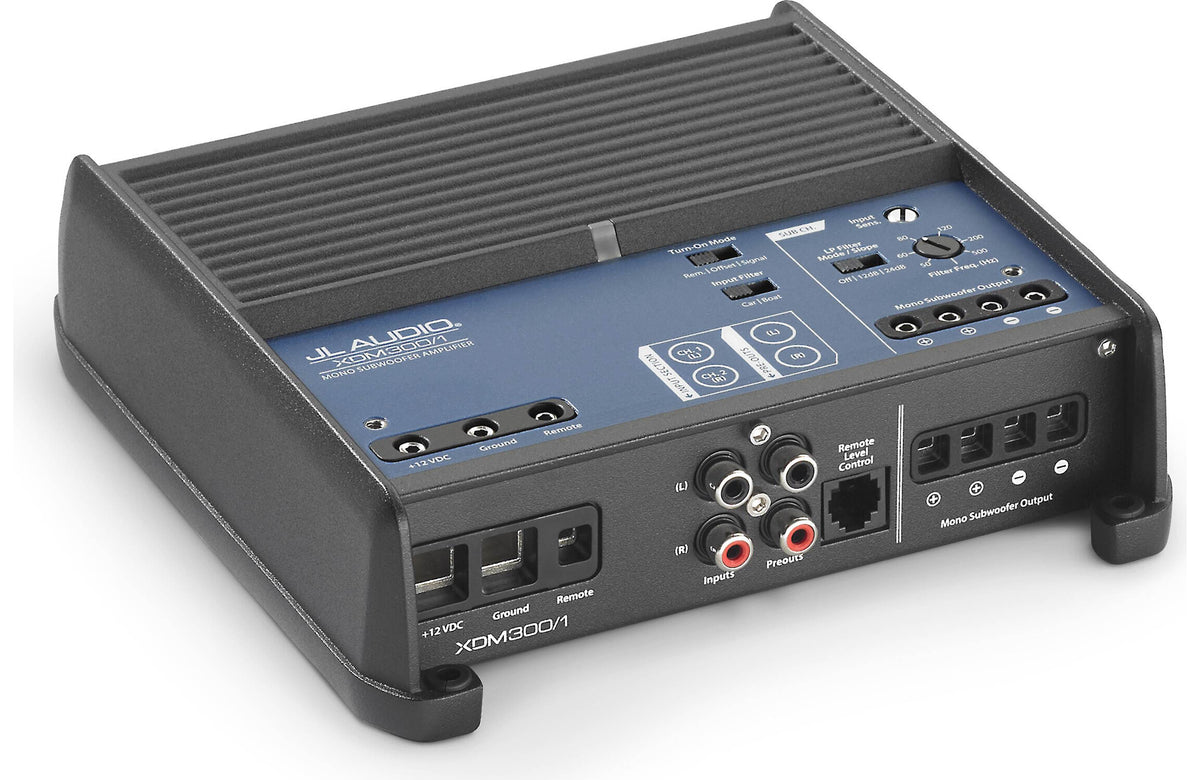

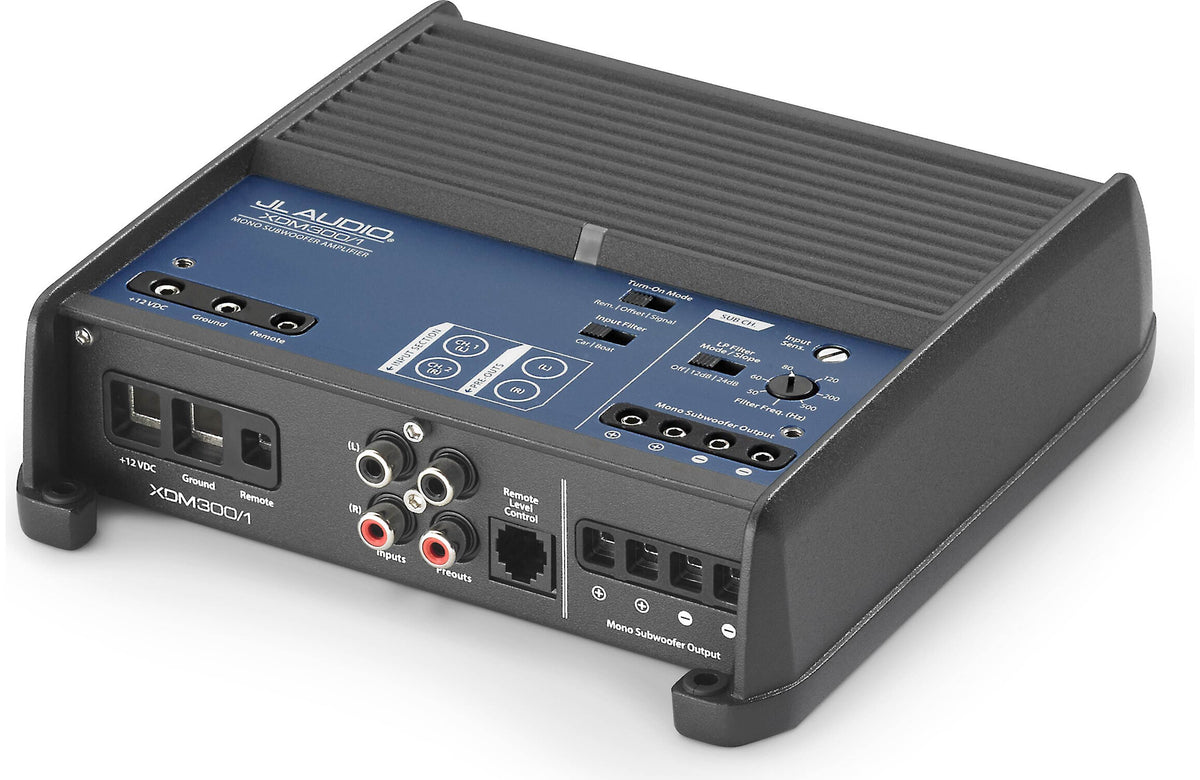

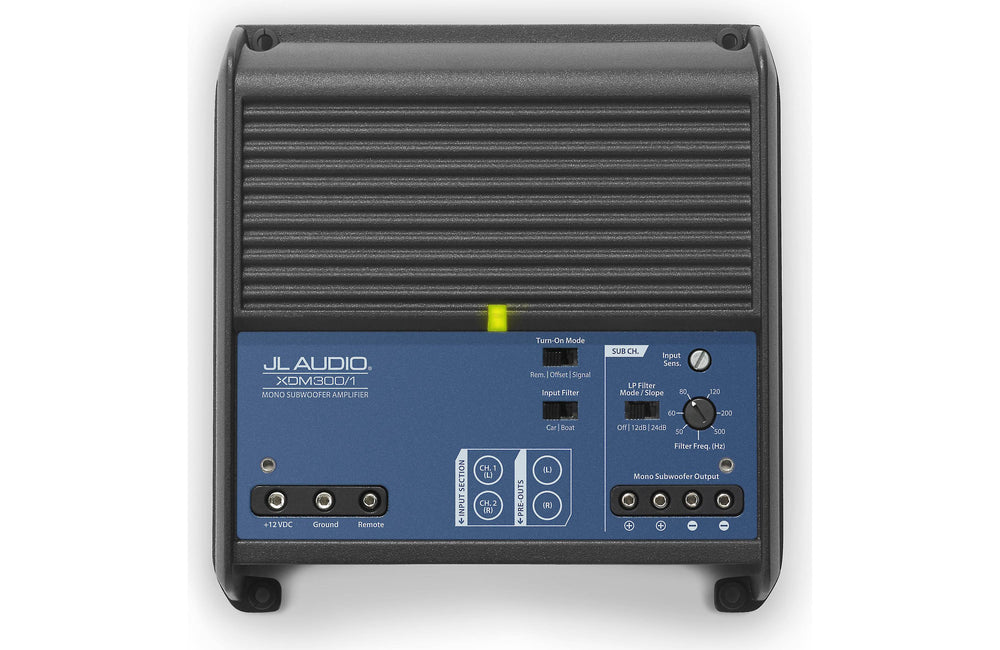

Terminados con una elegante capa de polvo negro, todos los controles están protegidos debajo de una cubierta superior removible con junta para un fácil acceso.
Specifications
Specifications
Identification
| MPN | 010-03839-00 |
|---|---|
| Barcode | 699440986809 |
Dimensions
| Height | 2.05" (52 mm) |
|---|---|
| Width | 6.85" (174 mm) |
| Depth | 7.09" (180 mm) |
| Weight | 3.8 lbs (1.72 kg) |
Audio
| Amplifier Class | Class D |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 200 W x 1 |
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 300 W x 1 |
| Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD) | 160 W x 1 |
| Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD) | 270 W x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | > 100 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | > 80 dB |
| Damping Factor @ 4 Ω | > 120/50 Hz |
| Damping Factor @ 2 Ω | > 60/50 Hz |
| THD+N @ rated power | < 1% @ 2 Ω per Channel |
| Frequency Response (+0, -1dB) | 10 Hz-1 kHz |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Fuse Rating | 30 A |
| Recommended Fuse Type(s) | AFS, AGU or MaxiFuse™ |
| Minimum Copper Power/Ground Wire Gauge | 4 AWG wire |
General
| Operating Voltage | 11-14.5 VDC (12 V Models) |
|---|
Signal Processing
| Filter Mode(s): Channels 1 & 2 | Off or Low-Pass only |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12/24 dB/octave |
| Filter Frequency Range: Channels 1 & 2 | 50 Hz-500 Hz |
| Detented, Calibrated Filter Potentiometers | Yes |
| Pass-through Preamp Output | Buffered |
Warranty/Certifications
| Warranty | 3 Years |
|---|
