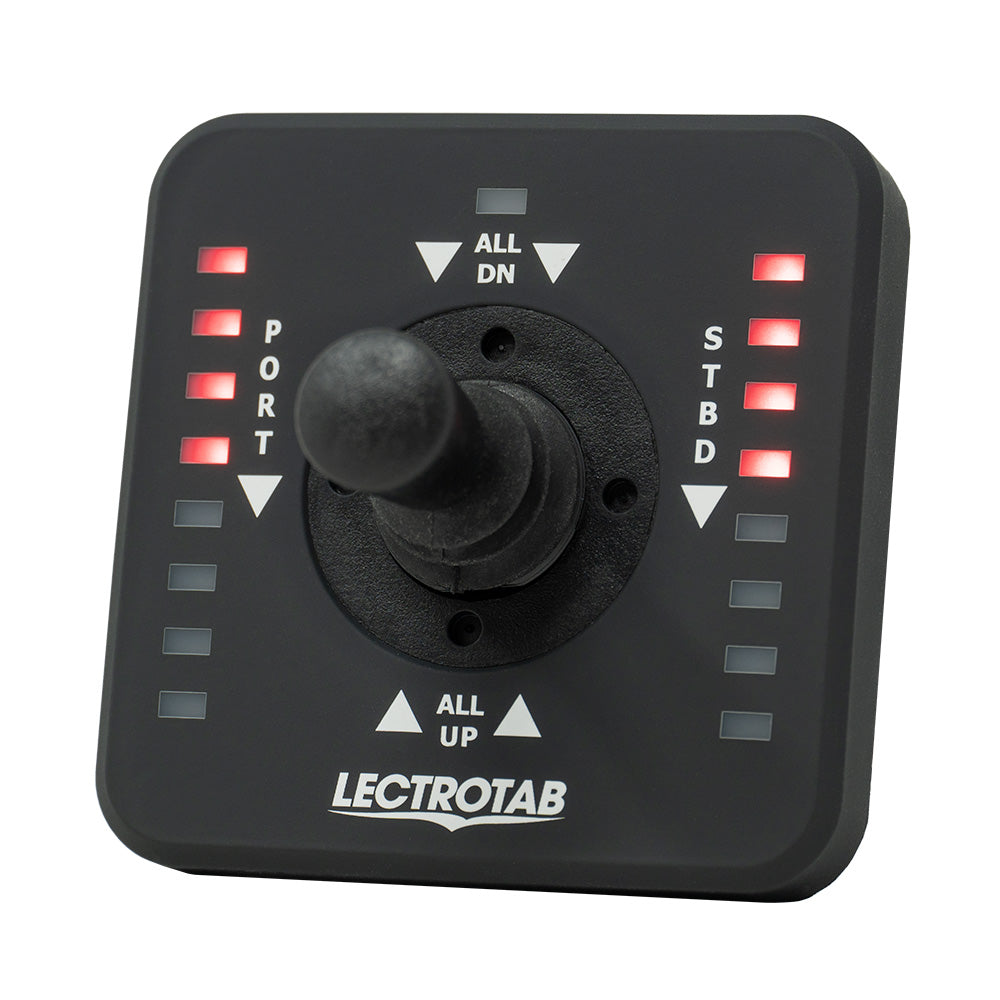

Joystick LED Trim Tab Control
Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.
Features:
- Single “Joystick” control
- NMEA 2000 compatible
- LED display of each trim tab position
- Microprocessor-based trim tab control with LED tab position indicators
- NMEA 2000 compatible with JLC-NMEA adapter
- Move both tabs up or down simultaneously with a single motion
- Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
- Automatic return to last tab position if the ignition key is turned off and back on again
- Completely sealed, completely waterproof, and will not deteriorate in sunlight
- Automatic tab retraction and calibration with key or accessory switch off
- Easy upgrade from any of our Lectrotab controls
- No external power module required
- LED tab position indicators dim automatically in darkness and brighten in sunlight
- Single or Dual Actuator per tab
- Operates on 12 or 24 VDC systems
Specifications
Specifications
Identification
| MPN | JLC-11 |
|---|---|
| Barcode | 850046155673 |
Physical
| Display Color | Black |
|---|---|
| Overall Width | 3.0"/77mm |
| Overall Height/Thickness | 3.0" (77mm)/2.0" (50mm) |
| Mounting Hole Cutout (Diameter) | 2.625"/66.7mm |
| Fuse Size Power Input (1 Actuator Per Tab) | 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs |
| Fuse Size Aux. (Must Connect) | 1 to 2 AMPs |
General
| Number of Stations/Actuators | Single or Dual Station/1 or 2 Actuator/tab |
|---|
Electrical
| DC Voltage | 12/24 |
|---|
