Lenco 12"x12" Standard Trim Tab Kit w/Standard Integrated Switch 12V

12" x 12" Standard Trim Tab Kit w/Standard Integrated Switch Kit - 12V

Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.

Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.

Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.

Kit includes:

• Self-contained sealed keypad
• Control box
• 36" Pigtail

In The Box:

(2) 12-gauge stainless steel standard finish blades
(2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Lenco owner’s/installation manual
Stainless steel mounting hardware

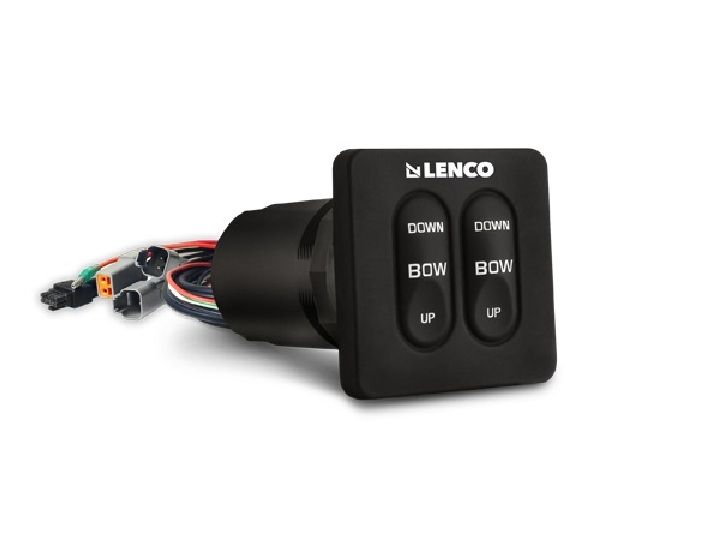

Standard Integrated Switch

Package Dimensions:

14" x 13" x 5"

Available Method: Ground

• Brochure

* ALL WARRANTY IS THROUGH MANUFACTURE *
