SKU:
LEW/89300053
Precio normal
$5,24095
Precio unitario
Descripción
Descripción

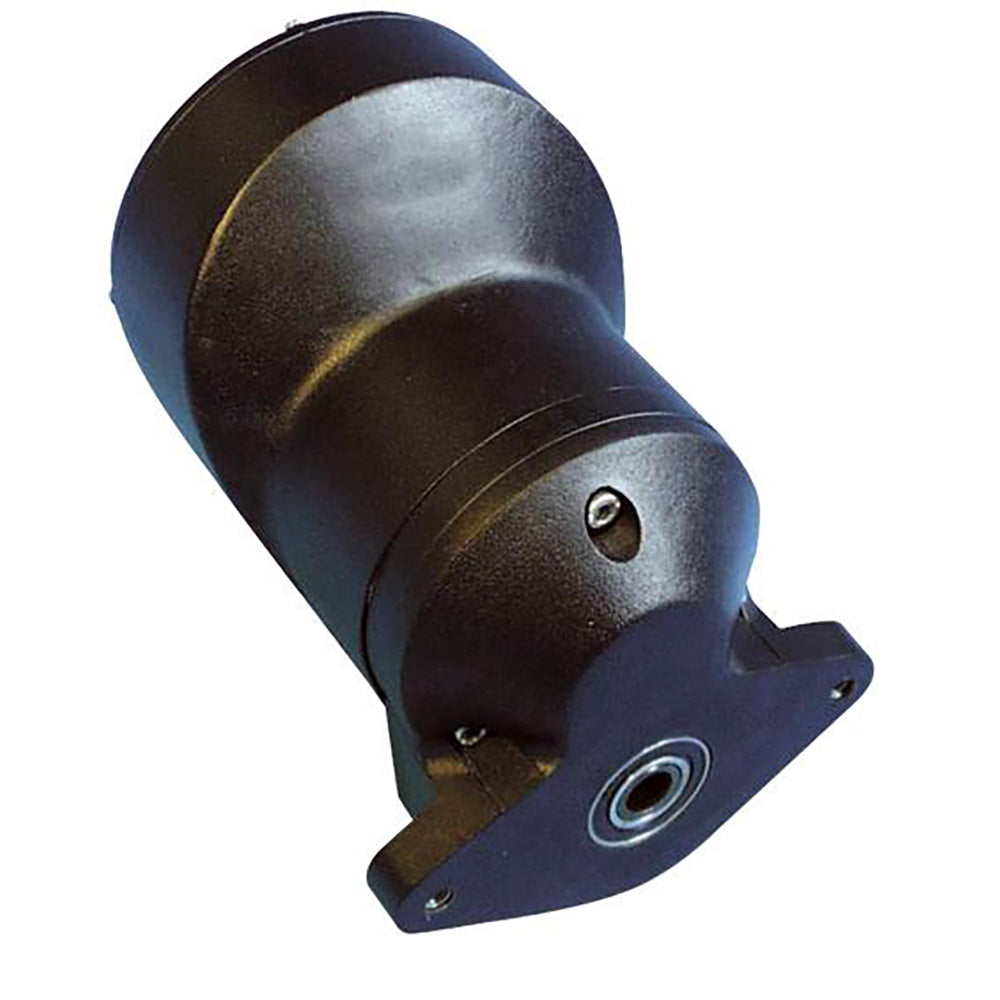

Mamba Autopilot Drive - 12V
These unique autopilot drives are directly coupled to Mamba systems, eliminating the need for separate platforms, chains, and sprockets.
Specifications
Specifications
Identification
| MPN | 89300053 |
|---|---|
| Barcode | 743683500732 |
Electrical
| Horsepower | 1/4 |
|---|---|
| Average Current Consumption | 4A |
General
| Volts | 12 |
|---|---|
| Maximum Output Torque | 125 (ft. lbs.) / 169 (Nm) |
| No Load Speed RMP | 10 |
| Maximum Rudder Torque | 1794 (ft. lbs.) / 248 (MGK) |
| Circuit Breaker | 16A (motor) / 3A (clutch) |
Physical
| Weight | 9 (kg) / 19.8 (lb.) |
|---|---|
| Guide to Boat size | Up to 16.75m (60 ft.) |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
