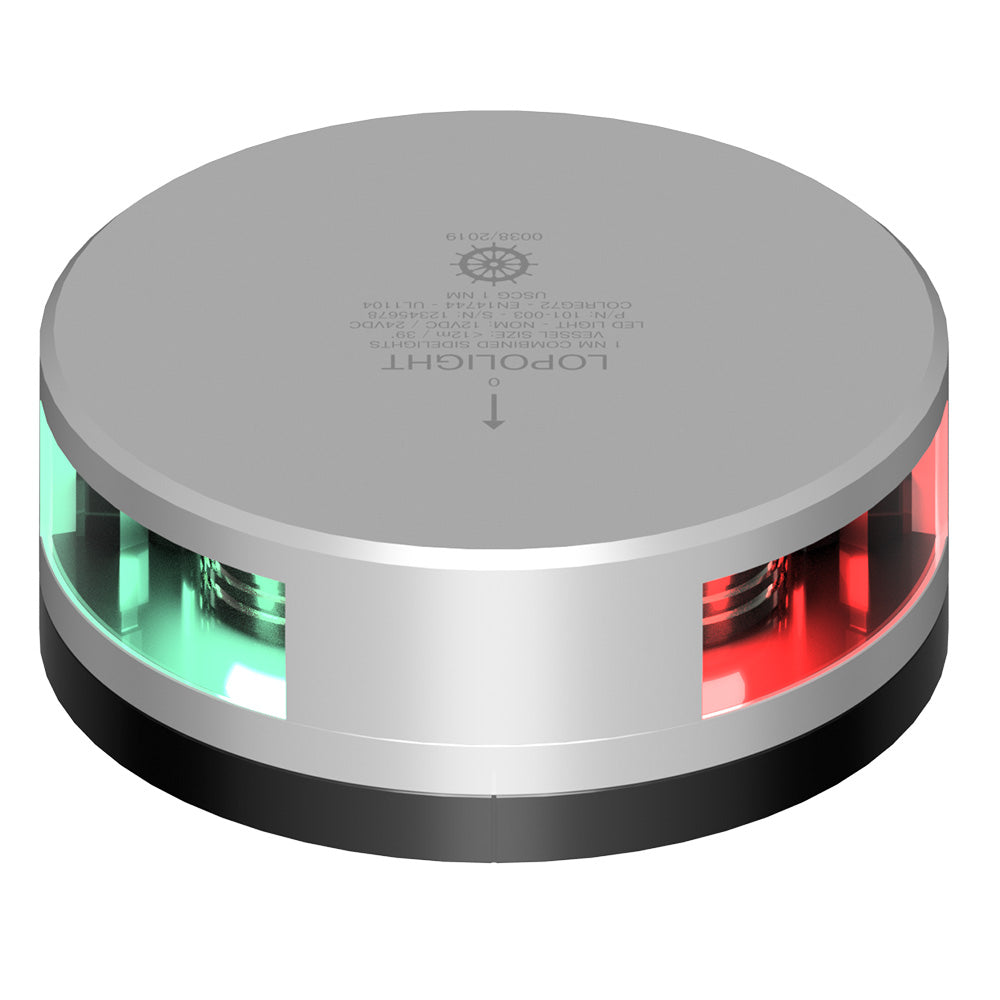

Combined Sidelight - 1NM - Silver Housing with FB Base
This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized housing
- 2.5m cable is included
Specifications
Specifications
Identification
| MPN | 101-003-FB |
|---|---|
| Barcode | 879343042738 |
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | Red, green |
| Dimensions Metric | Ø92,5mm x 58mm |
| Dimensions Imperial | Ø3.6" x 1.4" |
| Vessel Size | Under 12 meters |
General
| EAN | 5704438042605 |
|---|---|
| Min. Feed Wire Gauge | 0.5mm2 AWG22 |
| Visibility | 1NM |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | 2.5m cable |
| Operating Temperature | -25 degrees C to 55 degrees C |
Electrical
| Current Consumption (mA @ 24VDC) | 48 |
|---|---|
| Current Consumption (mA @ 12VDC) | 87 |
| Operating Voltage | 10-32VDC |
| Power Draw (W) | 1,4 |
