Lopolight 3nm Double Stacked Ice-Class 360 Degree - Red Light
Precio normal
$1,95984
Precio unitario
SKU:
LOP/300-114G2ST-PRO-I
Precio normal
$1,95984
Precio unitario
Descripción
Descripción

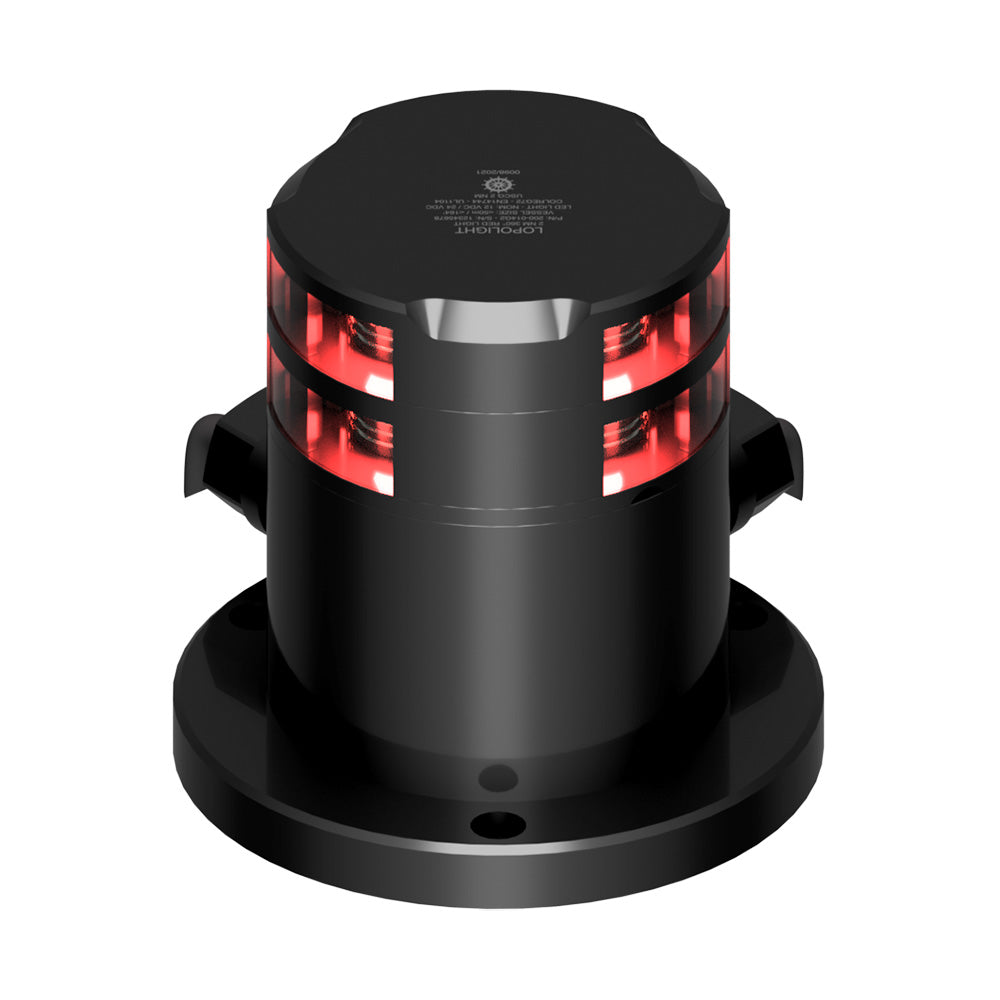

3nm Double Stacked Ice-Class 360 Degree - Red Light
Features:
- Built-in De-icing function
- Horizontally mounted on 400-037 alu base (IP68)
- Cable direction side
- Incl. HDPE base plate
- Quality cable glands - 3 sizes included:
- 9-17mm (3/8"-11/16") cable diameter
- 7-13mm (1/4"-1/2") cable
Specifications
Specifications
Identification
| MPN | 300-114G2ST-PRO-I |
|---|
Physical
| Light Color | Red |
|---|---|
| Dimensions metric | Ø92,5mm x 112mm |
| Dimensions imperial | Ø3.6" x 4.4" |
| Mounting | Horizontal |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Vessel size | Over 50M |
| Weight (Kg) | 1.52 Kg |
| Weight (Oz) | 53.61 Oz |
Certifications & Protection
| Certification | This Navigation Light is certified by DNV, the Declaration of Conformity and the certificates can be found on www.lopolight.com under Support |
|---|---|
| IP rating | IP68 |
General
| Intensity | >15cd |
|---|---|
| Visibility | 3nm |
| EAN | 5704438012370 |
| Connection | Plug connector |
| Min. feed wire gauge | 1.5mm2 AWG18 |
Control & Connectivity
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Performance
| Operating temperature | -60°C to 55°C |
|---|
Electrical
| Operating Voltage | 20-32VDC |
|---|---|
| Power draw (W) | 2,9 |
| Current consumption (mA @ 12VDC) | 210 |
| Current consumption (mA @ 24VDC) | 120 |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
