Lopolight 3NM Double Stacked Ice-Class Starboard Light
Precio normal
$3,25749
Precio unitario
SKU:
LOP/301-108ST-PRO-I
Precio normal
$3,25749
Precio unitario
Descripción
Descripción

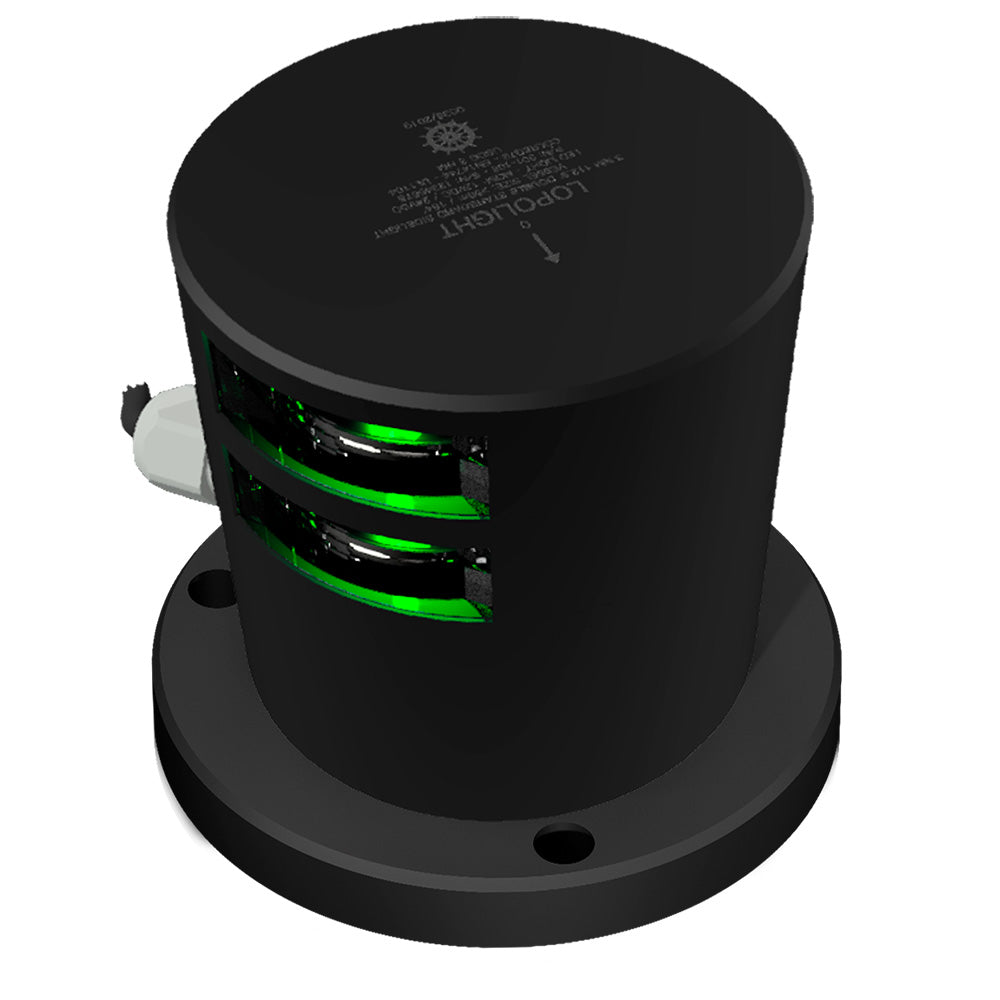

3NM Double Stacked Ice-Class Starboard Light
This double-stacked light has a visibility of 3NM and is meant for the starboard side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications
Specifications
Identification
| MPN | 301-108ST-PRO-I |
|---|
Control & Connectivity
| Approved To | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
|---|
Physical
| Mounting | Horizontal |
|---|---|
| Light Color | Green |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane |
| Dimensions Metric | Ø92,5mm x 143mm |
| Dimensions Imperial | Ø3.6" x 4.9" |
| Vessel Size | Over 50M |
| Weight (kg) | 1.4 Kg |
| Weight (oz) | 49.38 Oz |
General
| EAN | 5704438014268 |
|---|---|
| Intensity | >15cd |
| Connection | Plug connector |
| Visibility | 3NM |
| Min. Feed Wire Gauge | 1.5mm2 AWG18 |
Certifications & Protection
| IP rating | IP68 |
|---|---|
| Certification | This navigation light conforms to USCG Commandant Instruction M16672.2. |
Electrical
| Current Consumption (mA @ 12VDC) | 183 |
|---|---|
| Current Consumption (mA @ 24VDC) | 110 |
| Operating Voltage | 20-32VDC |
| Power Draw (W) | 2,6 |
Performance
| Operating Temperature | -60°C to 55°C |
|---|
