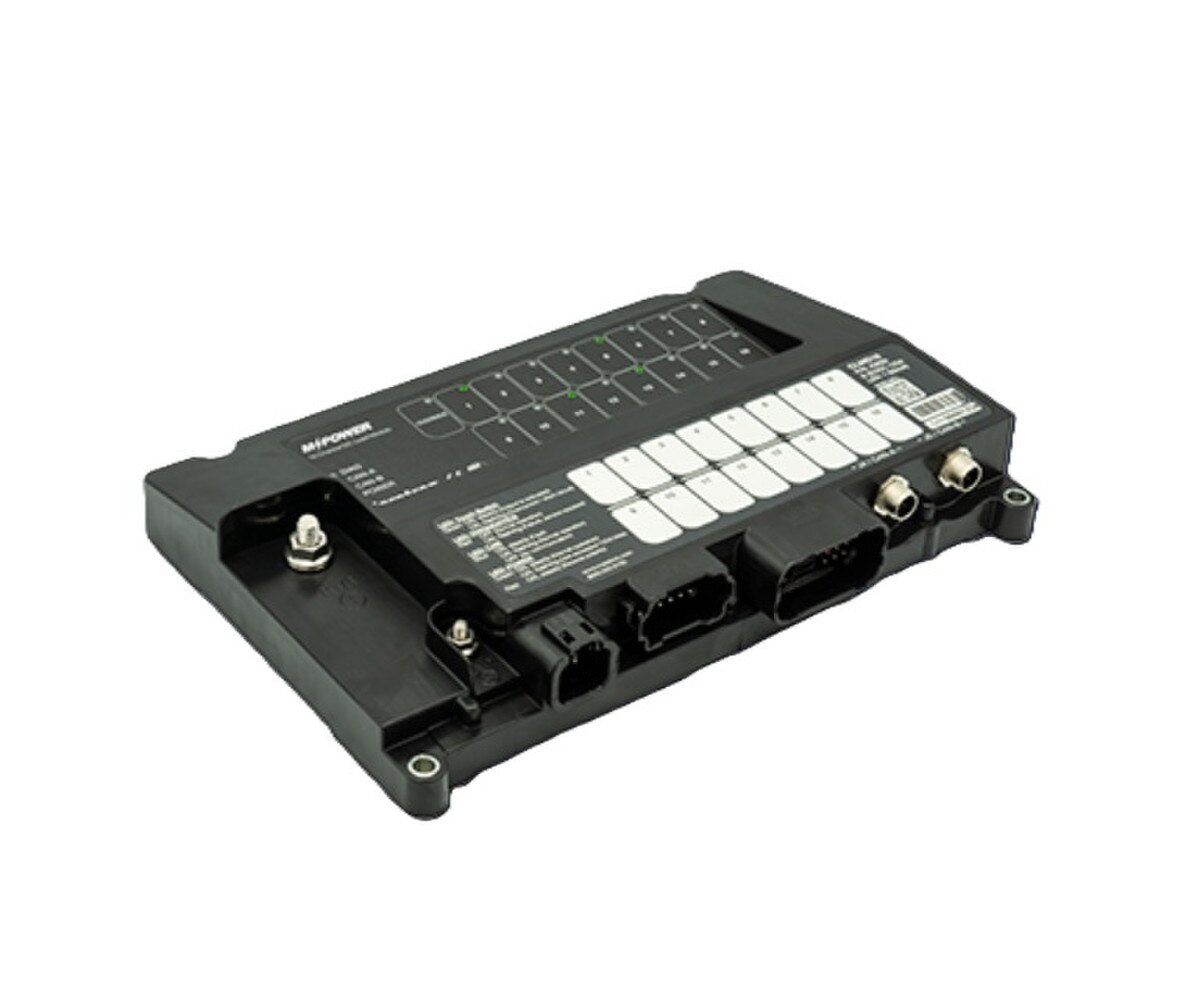

Mpower DC Load Controller - 16ch (No Connectors)

Maretron MPower CLMD16 16-Channel DC Load Controller Module — Module Only

A 16-channel solid-state digital power distribution system that replaces an entire mechanical breaker panel — network-controlled switching, PWM dimming, per-channel current monitoring, H-bridge reversing circuits, switch inputs, and tank level monitoring, all in one sealed, ignition-protected enclosure.

Why It's Worth It
A traditional breaker panel does one thing: switch circuits on and off, manually, at the panel. The CLMD16 does all of that and considerably more: all 16 circuits are controllable from anywhere on the NMEA 2000 network (any compatible display, N2KView, or the Real Time Cloud Service remotely), with per-channel current monitoring that detects burnt-out bulbs, overcurrent conditions, and under-current faults automatically. The solid-state Electronic Circuit Breakers (ECBs) reset electronically — no mechanical breaker to flip after a trip — and channels 1-12 support PWM dimming for DC lighting. The two H-Bridge reversing circuits handle bidirectional loads like trim tabs, passerelles, and engine hatches. Eight switch inputs let you wire traditional physical switches alongside network control, and three tank level inputs extend the module's reach into vessel monitoring.

CLMD16 vs. CLMD16-R
The base CLMD16 is the module only, without the Deutsch connector kits needed to wire the J1, J2, and J3 output and I/O ports. If you're sourcing your own Deutsch connectors separately or already have them on hand, the CLMD16 is the lower-cost option. If you want everything in one box, order the CLMD16-R instead.

Important Configuration Note
The CLMD16 requires initial configuration using a Maretron USB100 or IPG100 connected to a PC running N2KAnalyzer V3 software — it cannot be self-configured from a display alone.

In The Box:

CLMD16 Load Module Only (J1, J2, J3 Connector Kits Not Included — Order Separately or Choose CLMD16-R)

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
