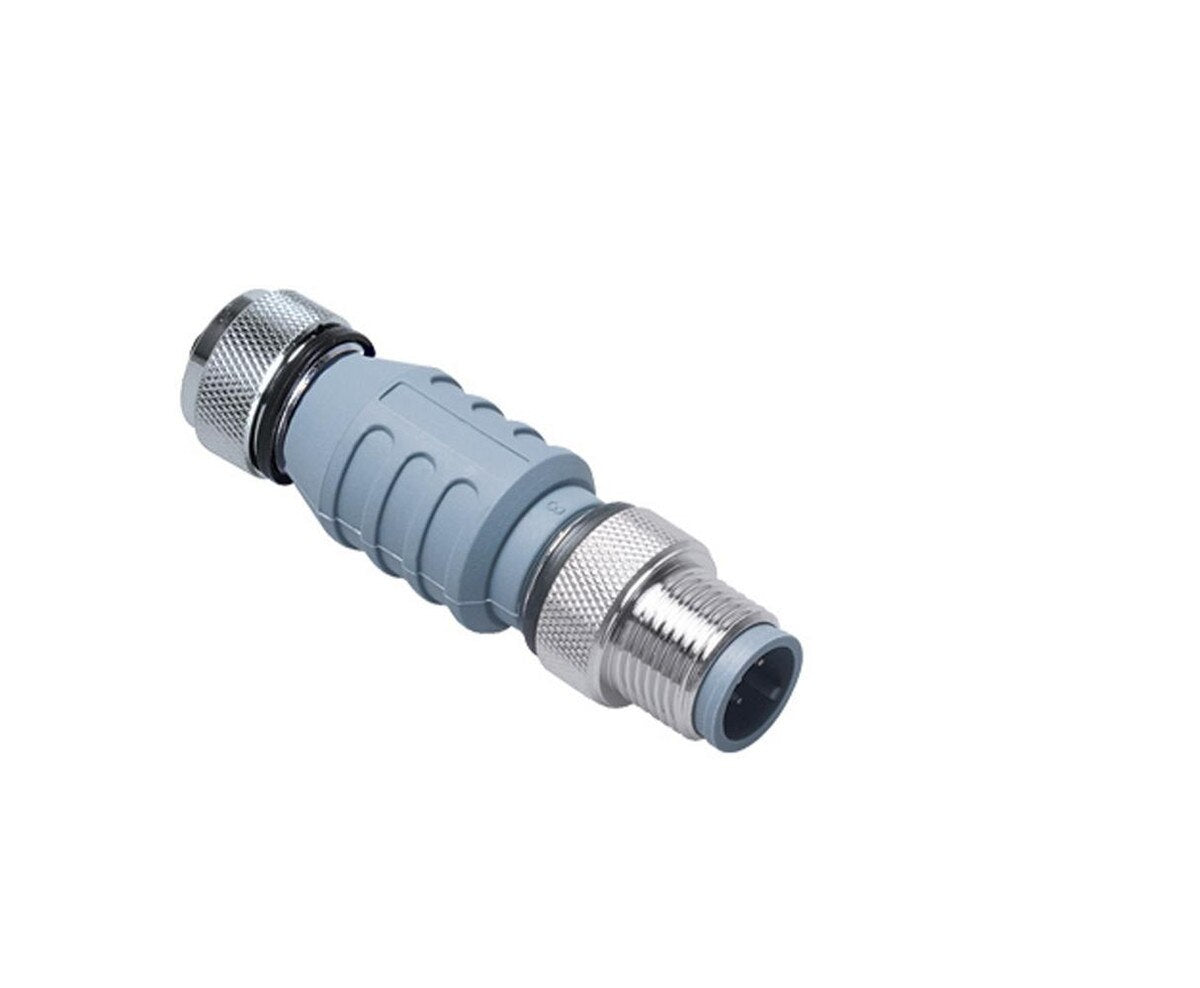

Inline Terminator (Micro-C)

Maretron IT-CM-CF Micro Inline Termination Resistor

An inline NMEA 2000 termination resistor for Micro-format networks — plugs directly into a device's Micro-C port without needing a separate tee, sized for tight installations like mast-mounted GPS or weather stations.

Why It's Worth It
Every NMEA 2000 network needs two termination resistors — one at each end of the trunk — to prevent signal reflections that cause data errors and unreliable instrument readings. Standard tee-mounted terminators work well on most trunks, but when a device sits at the end of the network in a tight location (the top of a mast, inside an instrument pod, within a mounting pipe), there's often no room for a separate tee. The IT-CM-CF solves that: it plugs directly into the device's Micro-C female port, and the network cable connects to the other end via a screw terminal for a secure, waterproof termination point with no tee required.

Use
Install one at each end of the NMEA 2000 trunk — exactly two per network, no more, no less. The female end (CF) connects to the device's Micro male port; the male end (CM) connects to the network trunk cable via screw terminals. Polarity note: normally a male terminator is used where the male pins point back toward the power source; this inline version's gender reversal is specifically for situations where the standard orientation doesn't work — confirm gender against your specific installation before ordering. Note: this product has been updated from blue to black housing.

In The Box:

IT-CM-CF Micro Inline Termination Resistor

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
