Vessel Data Recorder

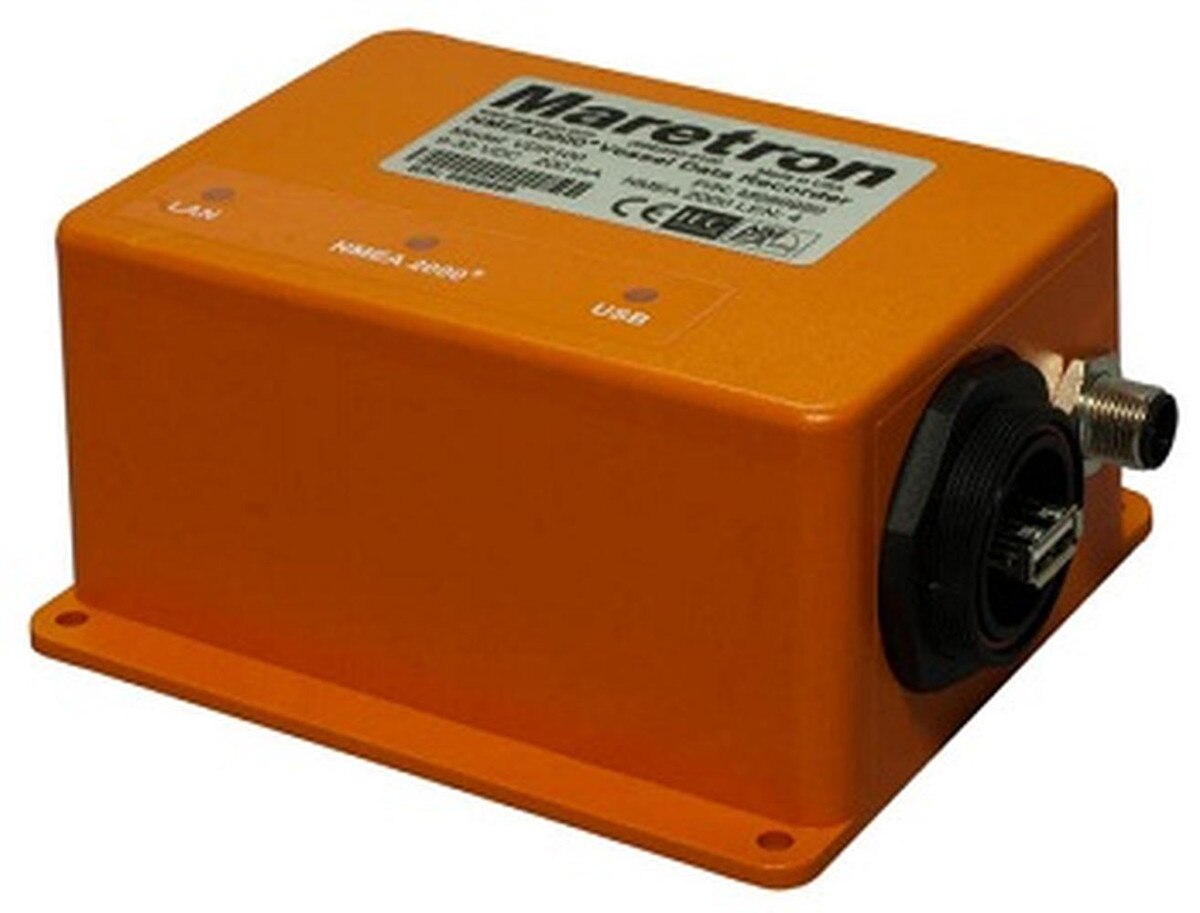

Maretron VDR100-01 Vessel Data Recorder

A black box for your boat — records every message on the NMEA 2000 network to a USB flash drive, continuously, so you have a complete data trail for performance analysis, vessel tracking, maintenance diagnostics, or accident investigation.

Why It's Worth It
Every NMEA 2000 device on the network — GPS, engine monitors, fuel flow sensors, wind instruments, tank sensors, AIS — generates a continuous stream of data that normally disappears the moment it's displayed. The VDR100 captures all of it to a removable USB flash drive using a circular buffer, so the most recent data is always preserved even when the drive fills up. Pull the drive, plug it into a PC or Mac, run Maretron's free N2KExtractor software, and export any parameter across any time range to a .csv file for analysis in Excel or any spreadsheet program. An optional Ethernet LAN port lets you access and download data remotely over a local network without physically pulling the drive — useful on larger vessels where the VDR is mounted in a hard-to-reach location.

Use
Installs anywhere on the NMEA 2000 network via a single Micro-C connector. Can be mounted horizontally, vertically, or upside down — orientation doesn't matter. Mount away from engines where temperatures may exceed 131°F (55°C). For fully waterproof installation, the optional USB waterproof cover (PX0852) must be fitted; the NMEA 2000 connector is already waterproof. The supplied 16GB USB drive holds weeks of data; larger drives (formatted to Ext4 for drives 32GB+) can hold a year or more at a 25% loaded network.

In The Box:

VDR100-01 Vessel Data Recorder
16GB USB Flash Drive (M003029)
N2KExtractor Software (Free Download)
Documentation

Package Dimensions/Shipping:

Qualifies for Ground and 2 Day

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
