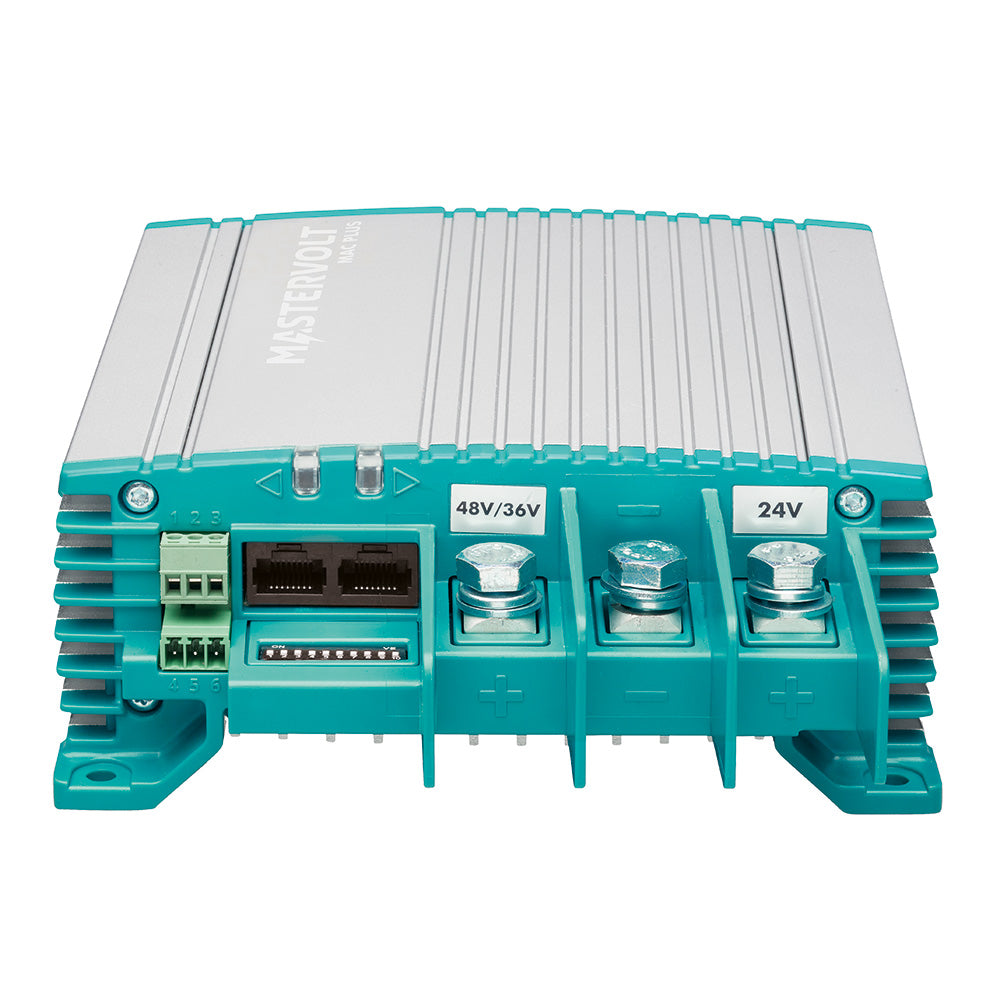

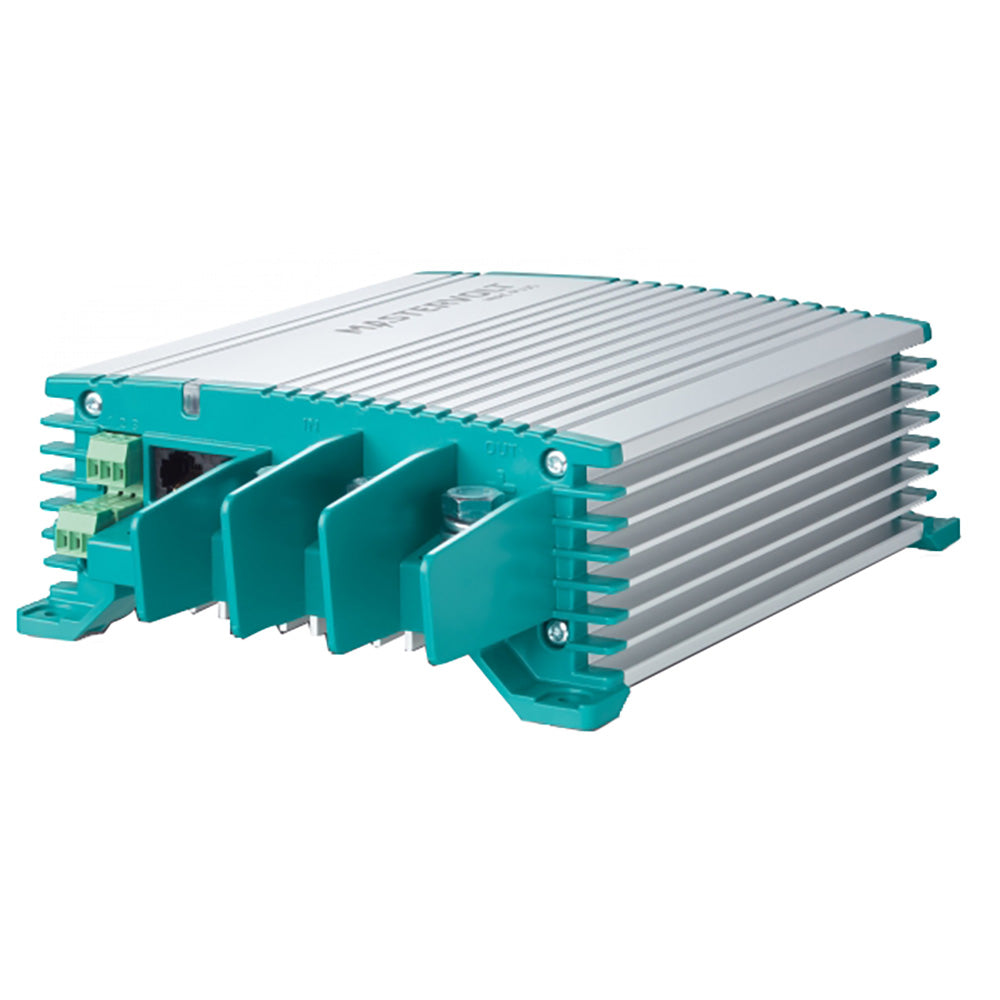

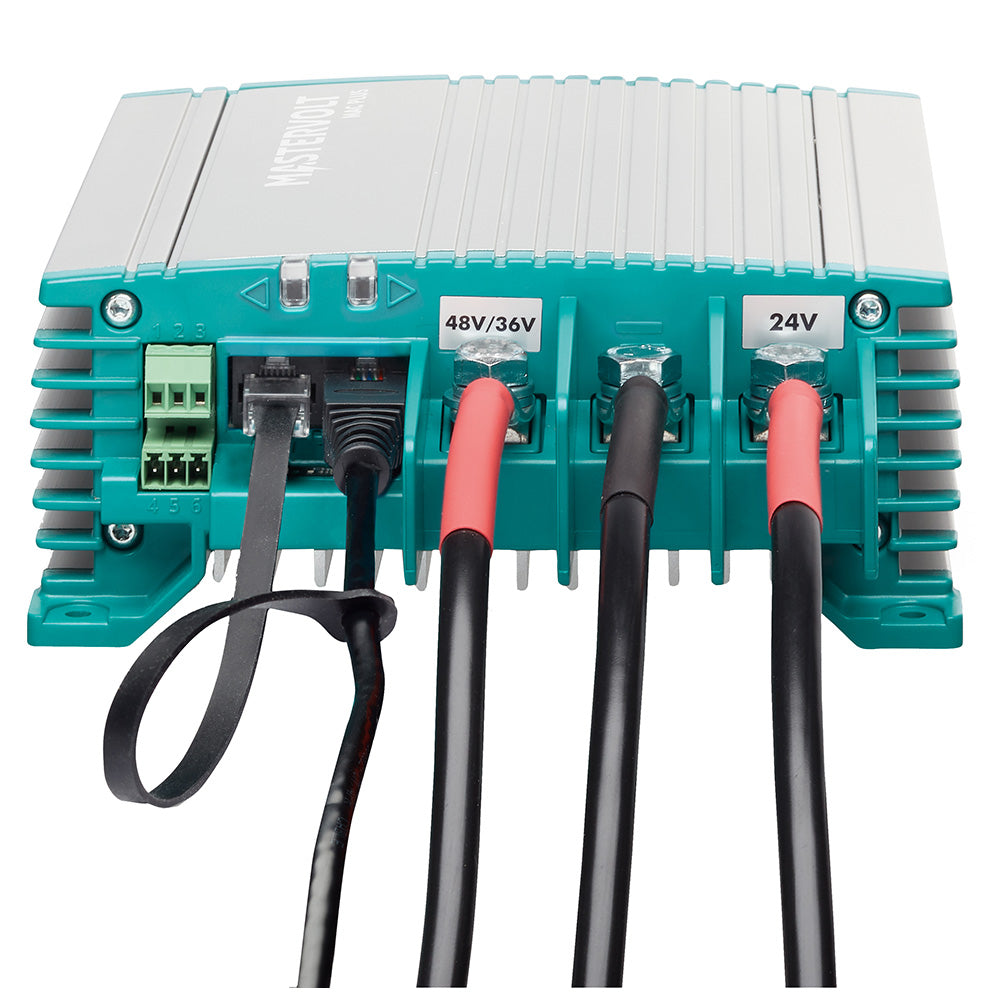

Mastervolt Mac Plus 12/48-15

Mac Plus 12/48-15

Boost Your Service Battery

Too often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus 48V and 36V solve that problem. With brand-new bi-directional technology, the Mac Plus can use each side as an input or output, delivering a reliable and consistent charge to both service and starter batteries.

Proven Mastervolt Quality

The Mac Plus uses the proven Mastervolt 3-step+ charge algorithm, delivering a quick and easy charge, even to completely flat batteries. By knowing when the engine is running and providing charge, you can also be sure that the Mac Plus will never drain your starter battery.

A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.

Total Power Flexibility

With a wide DC input range, the Mac Plus allows all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.

Parallel configuration of up to ten units will provide over 100 amperes. And advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 36/48V to 12/24V and vice versa.

Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.

Superior Monitoring & Control

Compatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

Features:

• Bi-directional technology
• Get either 48V or 36V power from a single unit
• Fast and safe charging, even during short trips
• Fanless design for silent operation
• Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4)
• Even charges fully depleted batteries
• Engine run detection protects the starter battery
• Adjustable current limits to meet Euro 5/6 requirements
• Voltage stabilization protects sensitive equipment, lights, and loads
• Parallel operation to obtain charging capacities well over 100 Amps
• MasterBus, CZone, and NMEA 2000 compatible, with intelligent system monitoring and automation
• Temperature compensation and voltage sense for an optimal charging result
• E-Mark/R10 certification for mobile applications
• Power supply mode offers stable power for sensitive loads
• Heavy-duty connections for easy installation and quick setup via DIP switches

General Specifications:

• Efficiency: > 95 % (at nom. input voltage, full load); 97 % peak

In The Box:

Package Dimensions:

15" x 9" x 4"

Available Method:

• Ground
• 2 Day

• Owner's Manual
• Quick Guide
• Brochure

* ALL WARRANTY IS THROUGH MANUFACTURE *
