SKU:
NWM/115-24-10
Precio normal
$1,59300
Precio unitario
Descripción
Descripción

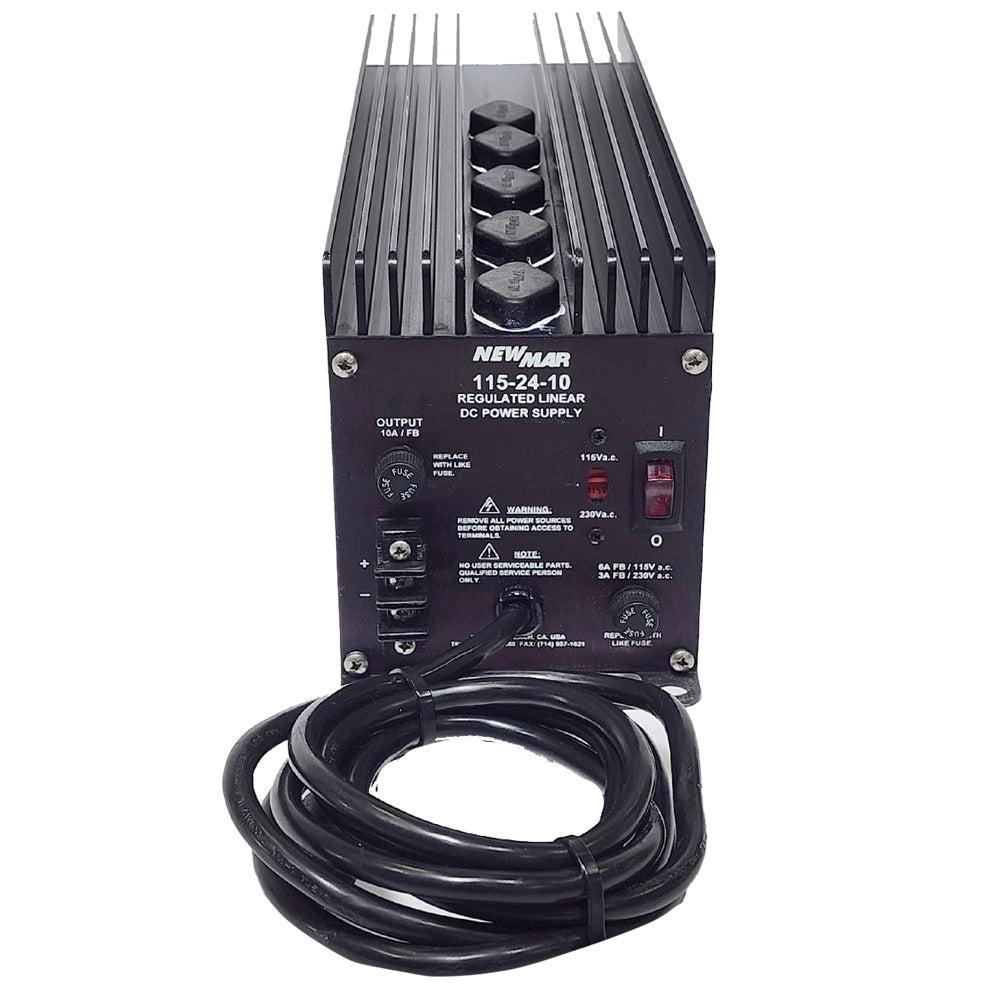

115-24-10 Power Supply
This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.
Features:
- Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
- Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
- The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
- Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
- Thermally activated cooling fan on “CD” units
Specifications
Specifications
Identification
| MPN | 115-24-10 |
|---|
Case Size:H x W x D (inch): 5.7” x 4.8” x 16.3”Input Range105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VACOperating TemperatureStandard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperatureDuty Cycle:
| Intermittent | 20 minutes max on time, 20% duty |
|---|---|
| Continuous | 24 hours/day 100% Duty |
Options:
| Note 1 | Modify for use as a battery charger |
|---|---|
| Note 2 | The output voltage is adjusted (see Output Voltage for range) |
| Note 3 | Transfer relay for back-up battery in event of power failure (ERC option) |
Output Voltage:
| Note 1 | 24.5 VDC (Internally adjustable 21-27.5 VDC) |
|---|---|
| Ripple | 70mV P-P (@ 110-125 / 220-250 VAC input) |
| Note 2 | 1% Line and Load (@ 110-125 / 220-250 VAC input) |
Mechanical:
| Note 1 | Powder-coated aluminum heat sink case |
|---|---|
| Note 2 | Front panel terminal block |
| Note 3 | Heavy-duty mounting flange |
| Note 4 | Conformal-coated PC board |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
