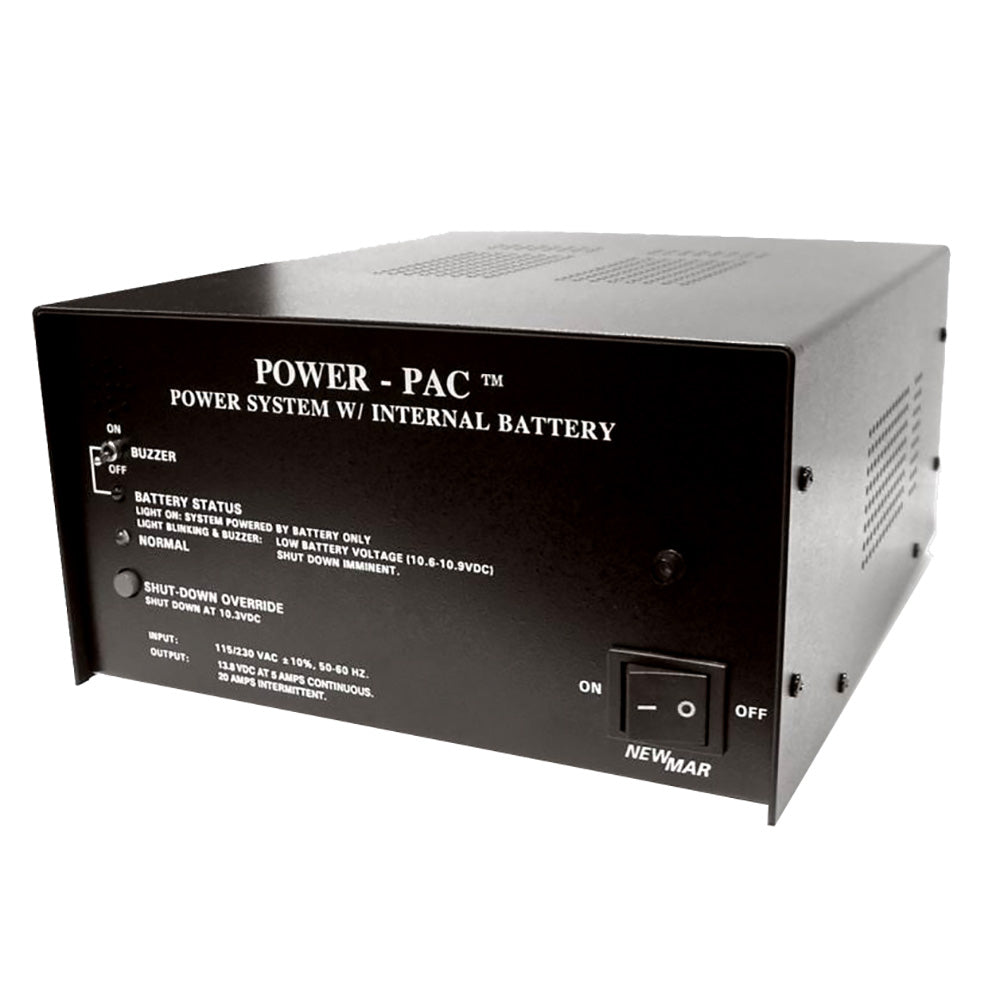

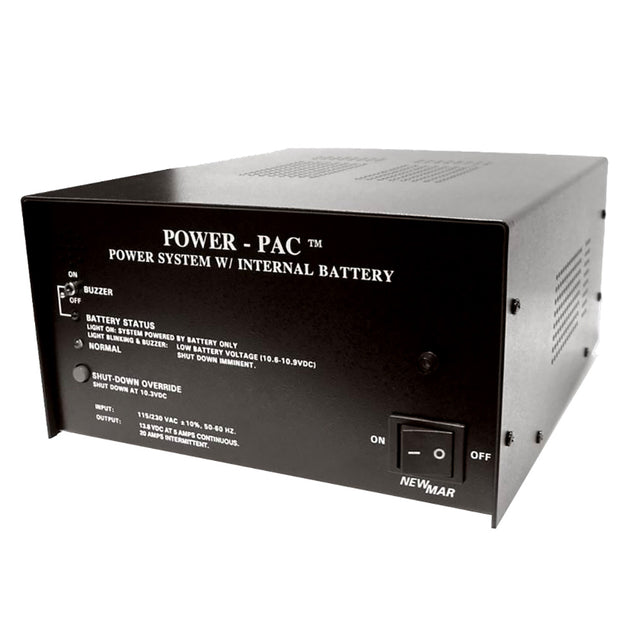

Power-Pac 14AH Power Supply
The 12V DC power supply features built-in backup batteries, which are charged during normal operation and then continue to power radios and critical navigation equipment when AC power is lost. The Power-Pac is ideal for commercial vessels, work boats, and yachts.
The Power-Pac’s highly regulated, low-rising 10-amp output powers radios and other sensitive communications equipment without causing RF or audio interference. At the same time, it floats and charges one or two (depending on the model) built-in 7-amp/hour backup batteries. These are kept at peak charge during the normal functioning of the unit when AC is being supplied. In the event of a loss of AC power, the internal batteries automatically take over to power communication equipment, providing a true uninterruptible DC source.
Features:
- Highly regulated, low ripple, noise-free 12-volt output
- Built-in, “on-line” stand-by battery provides immediate backup power in case of AC power loss
- Internal mounting space and terminals for conversion of the 7 A/H model into the 14 A/H model
- Output “Normal” indicator L.E.D.
- “Back-up power only” warning light
- Audible and visual low battery (10.7 VDC) voltage indicators
- Low battery warning buzzer mute switch
- Automatic low battery (10.3 VDC) voltage disconnect
- Low voltage disconnect override button
- Over-voltage protection
- Current limit protection
- Input/output fused
- Separate output terminals are provided for charging external batteries
- 115/230 50-60 Hz input, selected by a slide switch on the rear panel
Specifications
Specifications
Identification
| MPN | POWER-PAC14AH |
|---|
With a 14 Amp/Hour Battery Installed, the Unit Provides Approximately the Following Power:
| Note 1 | 7 amps for 100 min. |
|---|---|
| Note 2 | 10 amps for 60 min. |
| Note 3 | 15 amps for 30 min. |
| Note 4 | 20 amps for 15 min |
Protection:
| Note 1 | AC Input fuse |
|---|---|
| Note 2 | Internal and external Battery fuses |
| Note 3 | Over Voltage |
| Note 4 | Current Limit |
| Note 5 | Automatic Thermal Shutdown |
| Note 6 | Low Battery Disconnect |
Mechanical Details:
| Note 1 | Vinyl Laminated aluminum case |
|---|---|
| Note 2 | 6’ standard AC power cord |
| Note 3 | Ac input selector switch |
Battery Details:
| Note 1 | Sealed Lead Acid, Deep-cycle. |
|---|---|
| Note 2 | Certified by DOT and IATA for shipment by Air |
| Weight per 7 AH Battery | 6 lbs. |
| Size (inch) | 6” x 3.75” x 2.5” |
Options:
| Note 1 | Form C AC Failure Contacts (Contact factory for details) |
|---|---|
| Note 2 | Extra batteries, sold separately 7 A/H increments; each Power Pac will accommodate 28 A/H max. (14 internal, 14 external) |
