Cargando...
SKU:
PLS/XX-10-5W-SC-WHT
Precio normal
$32995
Total:
Precio unitario
Descripción
Descripción

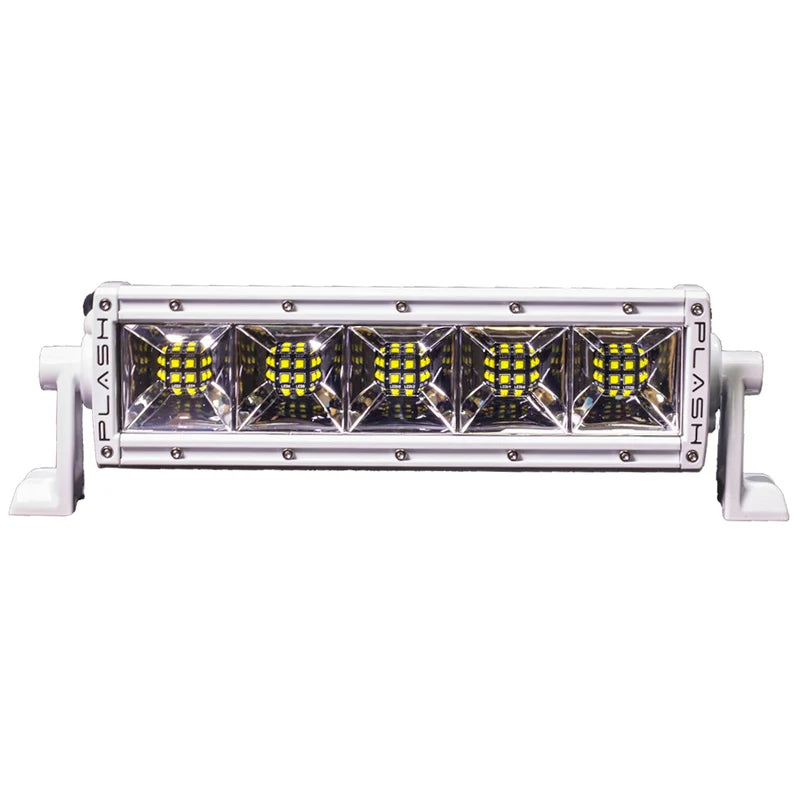

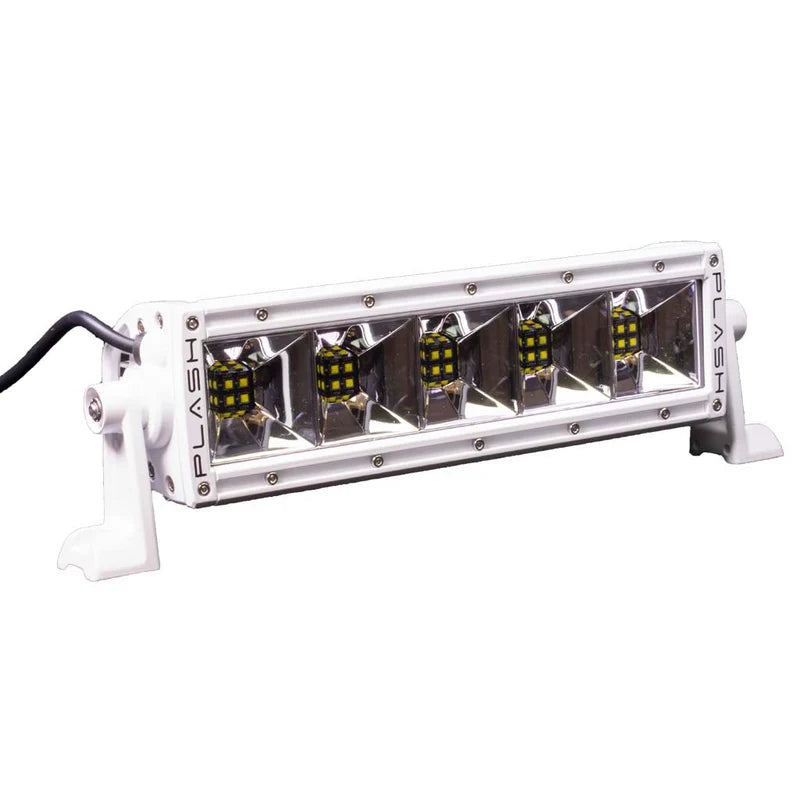

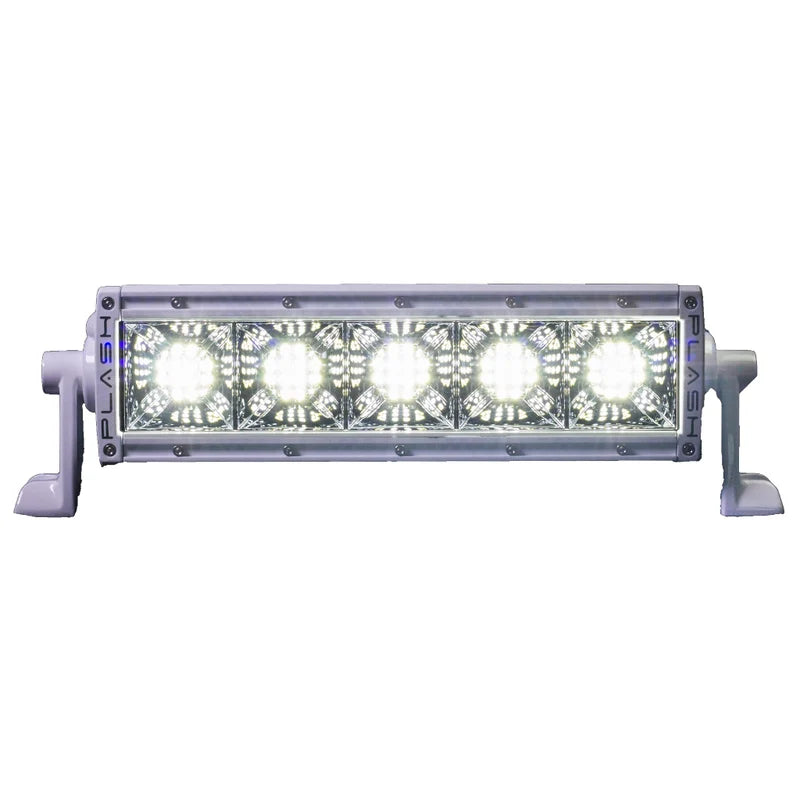

The Plashlights XX-Series 10" Scene Flood LED light bar in marine white is built for center console and air boats. A wide scene flood beam lights up the area close to the boat and reaches about 50 yards, which suits sport fishing boats. The beam pattern is designed to keep reflection off the bow to a minimum.
Dissimilar metals are isolated for saltwater use. A 9 ft extended power wire makes installation easier.
Features
- 11,800 lumens from 5W OSRAM OSLON LX ECE LEDs
- Wide scene flood beam, about 50 yards and in
- Minimum reflection on the bow
- Isolated dissimilar metals and a printed logo, so no aluminum is exposed
- IP68 with a genuine Gore waterproof membrane and mechanical seal
- Over/under voltage and reverse polarity protection
- VHF and AIS safe, with EMC and RFI protection
- MIL-STD-810G vibration compliant
- Lifetime warranty with registration
Wiring harness not included.
Specifications
Specifications
Identification
| MPN | XX-10-5W-SC-WHT |
|---|
General
| Series | XX-Series |
|---|---|

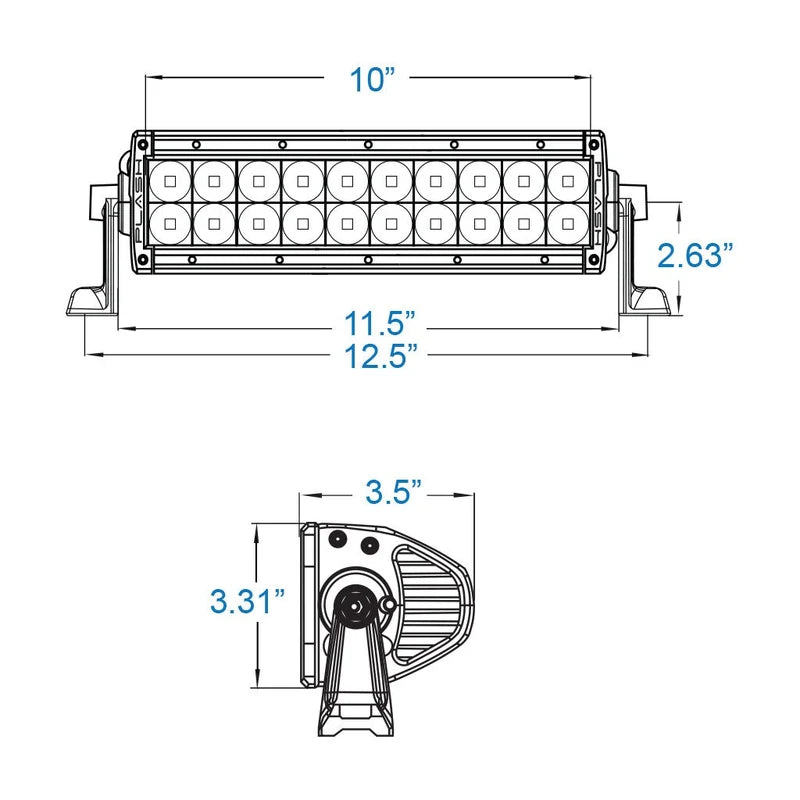

| Size | 10" |
| Housing Color | White |
| Beam | Scene Flood |
| Throw | 50 yards and in |
| Waterproof Rating | IP68 |
| Operating Temperature | -40°F to +145°F |
| Rated Life | 50,000 hours or 5 years of continuous use |
| Weight | 3.62 lbs |
Light Output
| Lumens | 11,800 |
|---|---|
| LEDs | 20 x 5W OSRAM OSLON LX ECE, double row |
| Max Power | 100W |
Electrical Features
| Input Voltage | 9-36V DC |
|---|---|
| Current Draw | 3.9 A @ 12.9V DC |
| Protection | Over/under voltage and reverse polarity |
Construction
| Housing | Extruded 6063 aluminum, AkzoNobel marine polyester powdercoat |
|---|---|
| Lens | Scratch-resistant, high-impact polycarbonate |
| Waterproofing | Genuine Gore waterproof membrane with mechanical seal |
| Mounting | 2 cast aluminum brackets, 2 stainless steel nylon locking nuts |

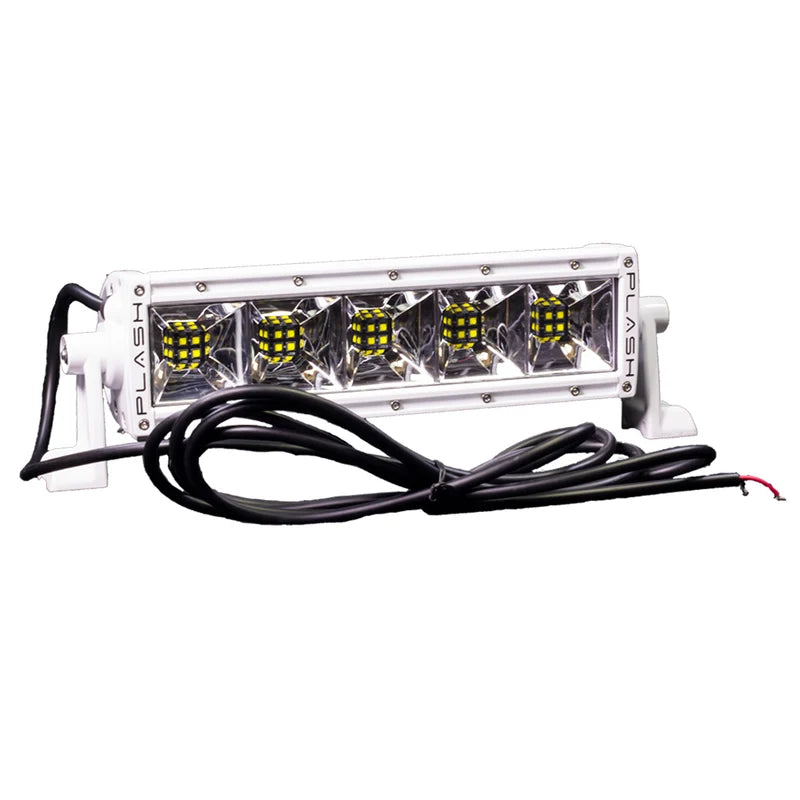

| Power Wire | 9 ft extended lead |
Compliance
| Interference | VHF and AIS safe; EMC and RFI protected |
|---|---|
| Vibration | MIL-STD-810G |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
Lifetime (registration required)
* ALL WARRANTY IS THROUGH MANUFACTURE *
