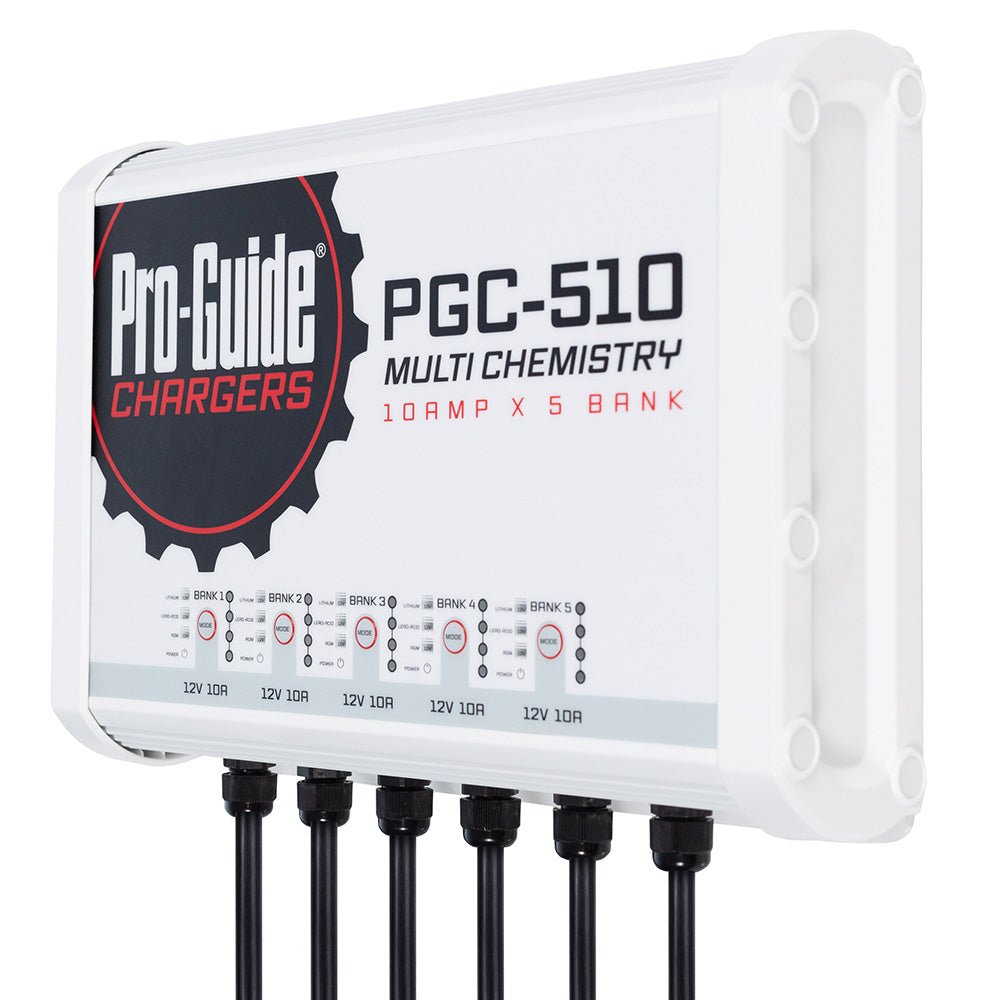

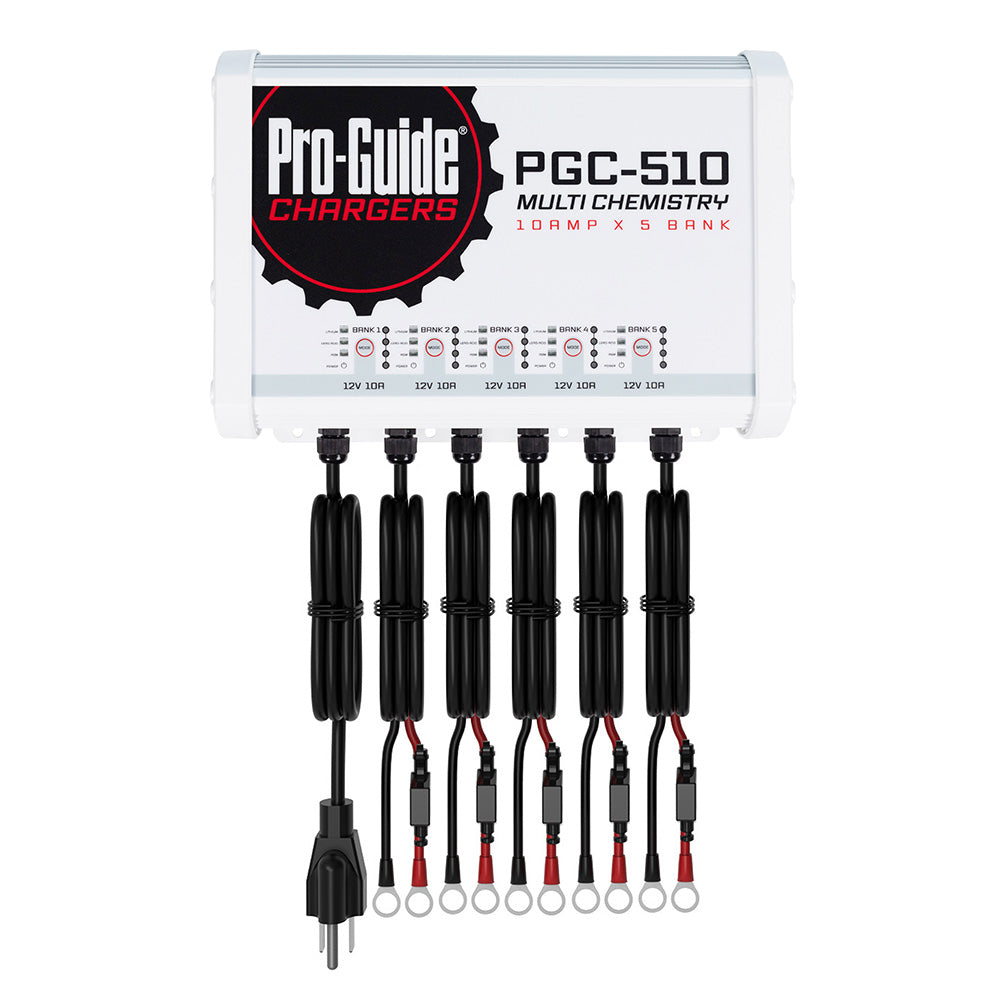

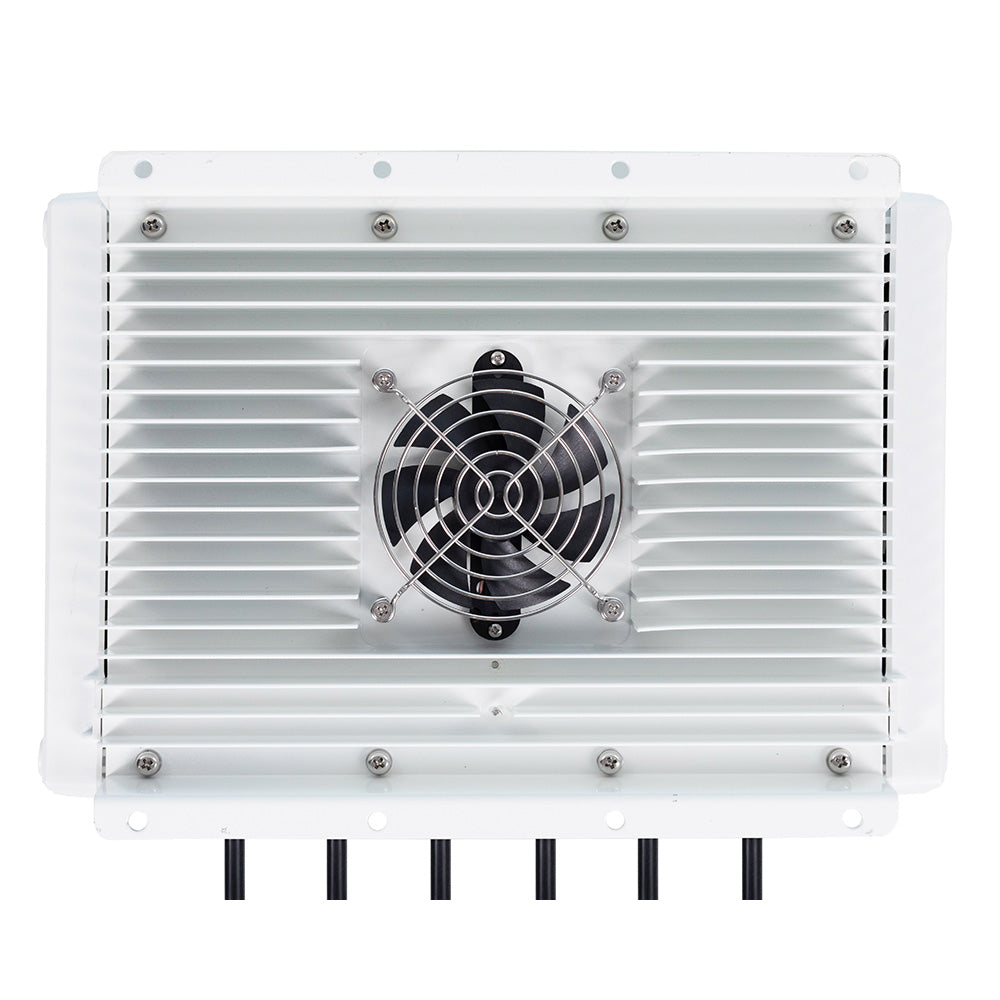

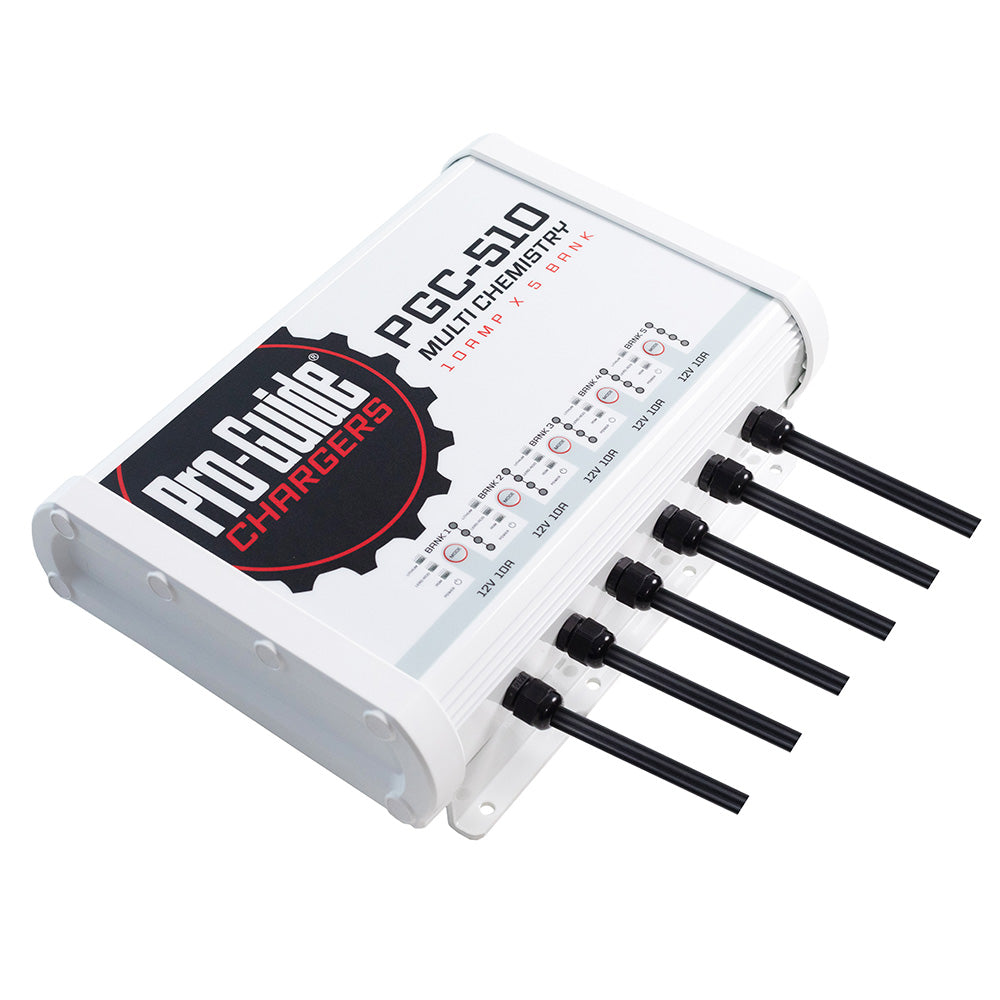

5 Bank On-Board Battery Charger - 12V - 50-Amp
The Pro-Guide PGC-510 is a 12V on-board battery charger for lead-acid, AGM, and lithium batteries.
Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.
Protection:
- Output Over-Voltage
- Output Over Current
- Output Short Circuit
- Output Reverse Polarity
- Over Temperature
Input:
Specifications
Specifications
Identification
| MPN | PGC-510 |
|---|---|
| Barcode | 810145910788 |
Electrical
| Battery Type | Lead Acid/AGM/Lithium |
|---|---|
| Output Voltage | DC 12V x 5 |
| Max Output Voltage | 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery |
| Output Current | 10A x5 |
| Input Voltage | AC 110-120V |
| Input Current | <6A |
Physical
| Length | 13.15" |
|---|---|
| Width | 9.96" |
| Height | 3.86" |
| Weight | 24.3 lbs |
Certifications & Protection
| IP Rating | 68 |
|---|
Performance
| Frequency | 60Hz |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
