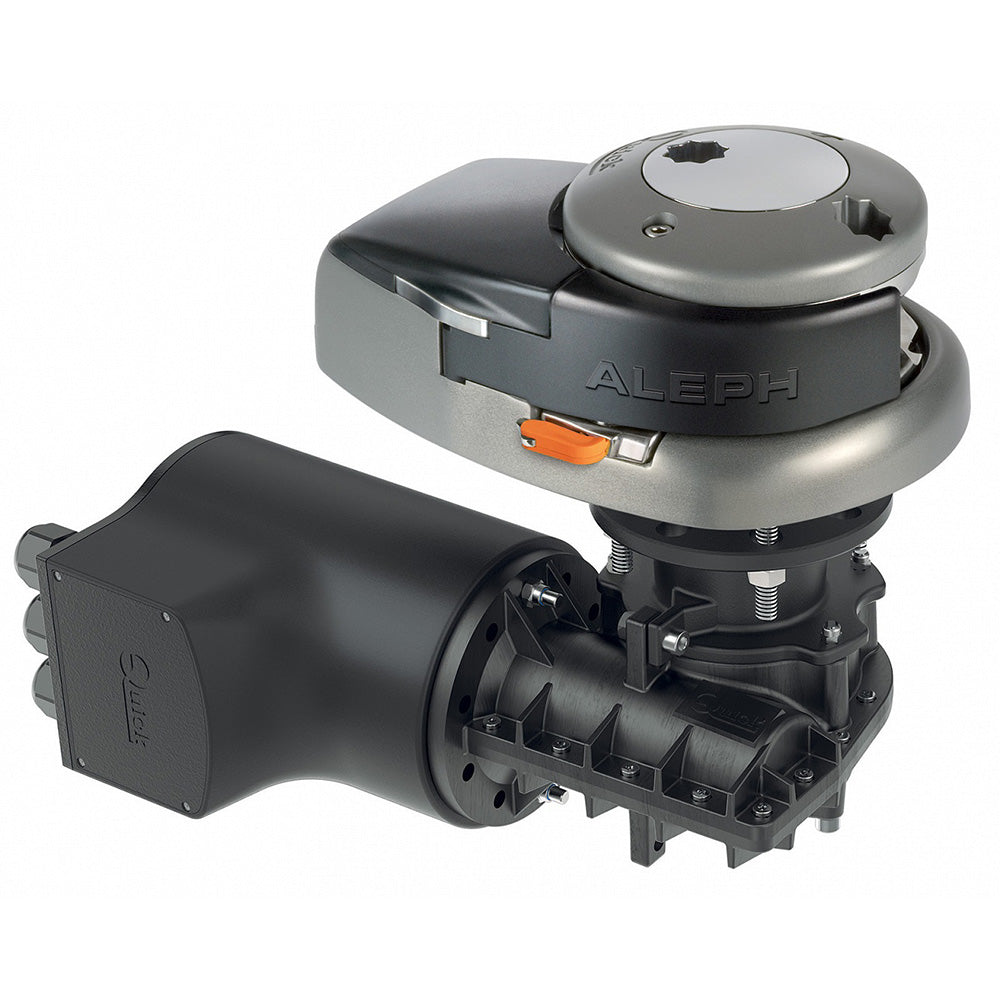

Aleph AL3 1012 Windlass - 12V, 1000W, 10MM Gypsy to 5/8" Rope
The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.
Features:
- For 33-46FT Boats
- Vertical windlasses
- Requires 5/8" three-strand polyester rope
- Includes T6315-12 Solenoid
- Base in anodized aluminium with hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Technopolymer gearbox (700W / 1000W)
Specifications
Specifications
Identification
| MPN | FSAL10120010B00 |
|---|
Electrical
| Motor power | 700 W |
|---|---|
| Motor supply voltage | 12 V |
| Current absorption @ working load | 140 A |
Certifications & Protection
| Maximum pull | 1000 Kg / 2204 lb |
|---|
General
| Maximum working load | 370 kg/816 lb |
|---|---|
| Working load | 120 kg/264 lb |
| Note 1 | Weight - 18,6 Kg / 41 lb |
| 10mm | 3/8" gypsy |
Performance
| Maximum chain speed | 39,6 m/min 129.2 ft/min |
|---|---|
| Maximum chain speed @ working load | 20,4 m/min 66.9 ft/min |
