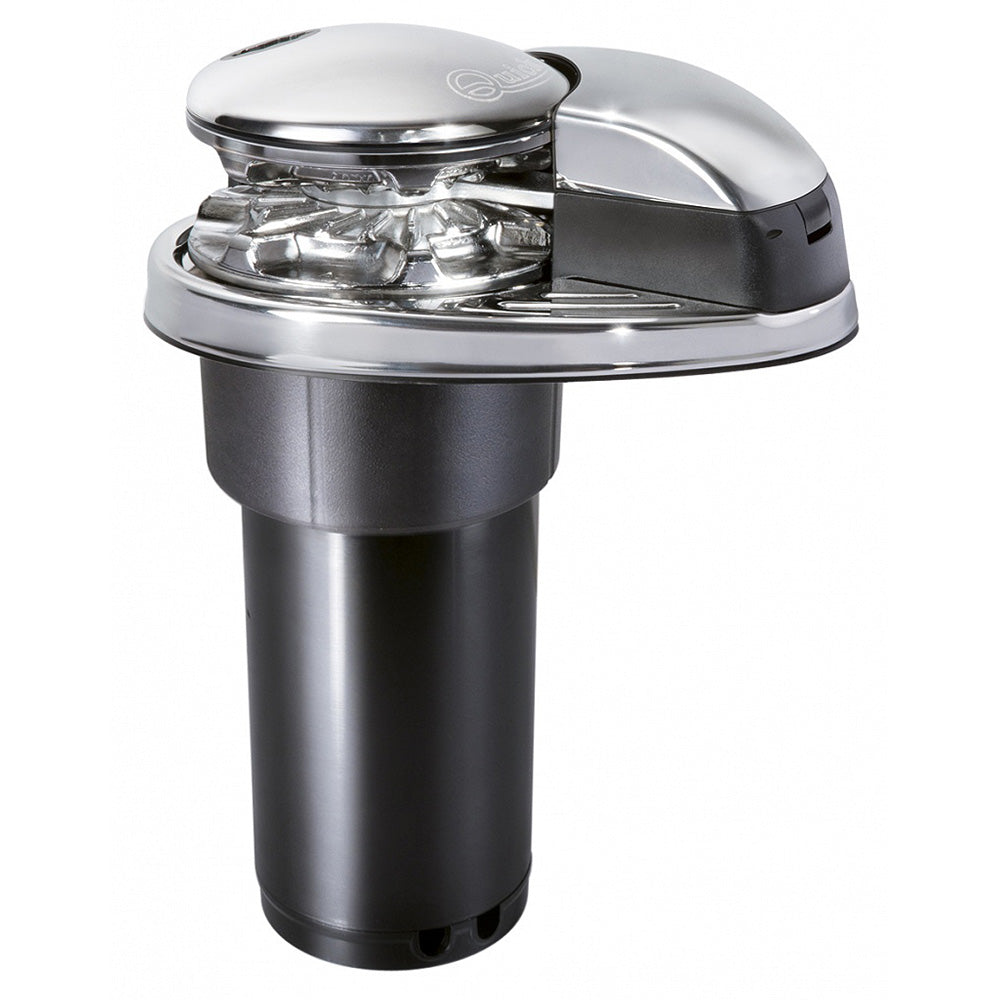

Prince DP2E 1000 Windlass - 800W, 12V 7MM or 1/4" Chain to 9/16" Rope
The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Vertical windlass
- Includes T6415-12 Solenoid
- Boats 23-40 ft
- Requires 9/16" three-stranded polyester rope
- Stainless steel AISI 316 base and anodized aluminum in hard oxide.
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP66
- Anodized aluminum gearbox
Specifications
Specifications
Identification
| MPN | FSDP2E100007A00 |
|---|
Electrical
| Motor power | 800 W |
|---|---|
| Motor supply voltage | 12 V |
| Current absorption @ working load | 84 A |
Certifications & Protection
| Maximum pull | 820 Kg / 1808 lb |
|---|
General
| Maximum working load | 290 Kg / 639 lb |
|---|---|
| Working load | 95 Kg / 209 lb |
| 7mm | 1/4" Gypsy |
Performance
| Maximum chain speed | 22,5 m/min / 73.8 ft/min |
|---|---|
| Maximum chain speed @ working load | 15.2 m/min / 49.9 ft/min |
Physical
| Weight | 8,3 Kg / 20.9 lb |
|---|
