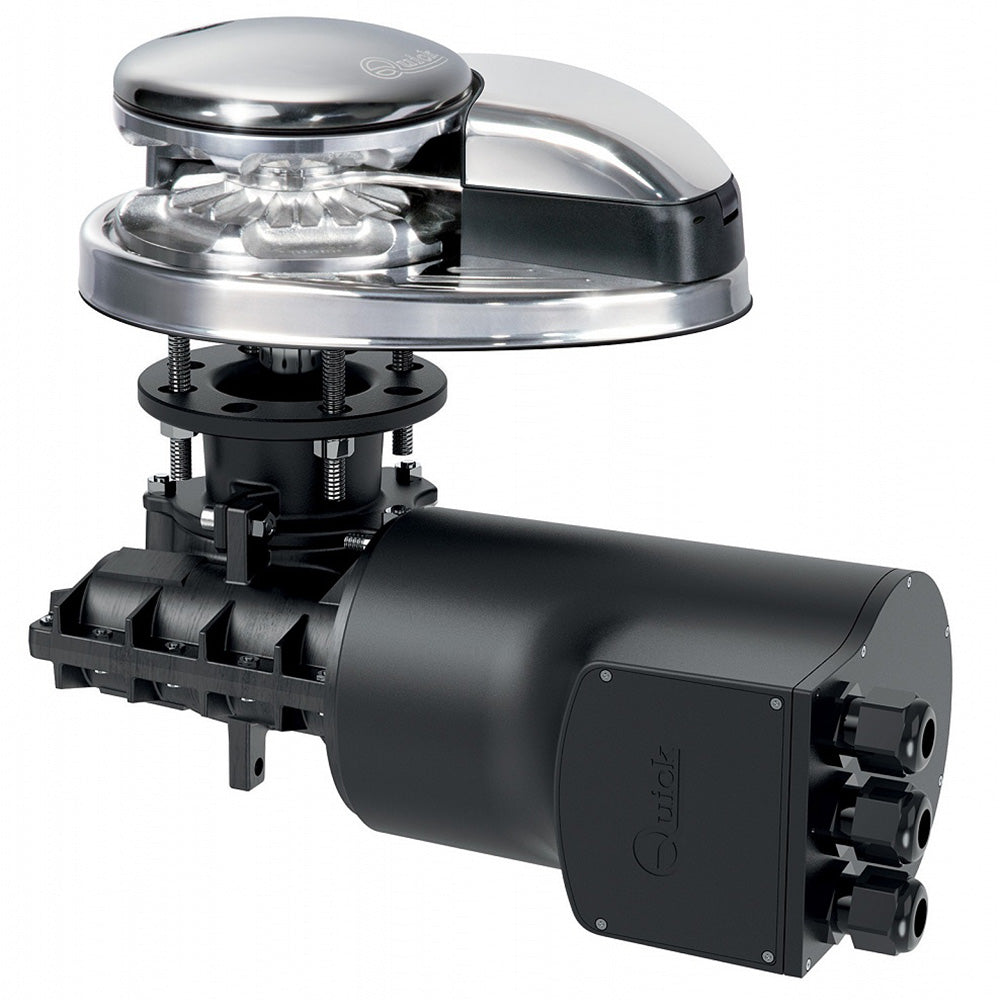

Prince DP3 1012 Windlass - 1000W - 12V - 8mm (5/16") Gypsy
This Quick Prince windlass is a vertical-axis windlass.
Applications:
- For boats 10-14 m (33-46 ft.)
Features:
- No drum
- Vertical windlasses
- Stainless steel AISI 316 base and anodized aluminum in hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and a magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP67
- Technopolymer Gearbox (1000W)
Specifications
Specifications
Identification
| MPN | FSDP31012008B00 |
|---|---|
| Barcode | 8057090226188 |
General
| Rope | 5/8 in. for 8mm or 5/16" Gypsy |
|---|---|
| Maximum working load | 370 Kg / 816 lb |
| Working Load | 120 Kg / 264 lb |
Electrical
| Motor Power | 1000 W |
|---|---|
| Motor Supply Voltage | 12 V |
| Current Absorption @ Working Load | 140 A |
Certifications & Protection
| Maximum Pull | 1000 Kg / 2204 lb |
|---|
Performance
| Maximum Chain Speed | 39,6 m/min / 129.2 ft/min |
|---|---|
| Maximum Chain Speed @ Working Load | 20,4 m/min / 66.9 ft/min |
Physical
| Weight - DP3 - [without drum] | 17,4 Kg / 38 lb |
|---|
