Quick Dylan DR4 Windlass - 2000W, 24V, 12mm Gypsy - 3/4" Rope
Precio normal
$4,61597
Total:
Precio unitario
SKU:
QUI/FSDR20240012A00
Precio normal
$4,61597
Total:
Precio unitario
Descripción
Descripción

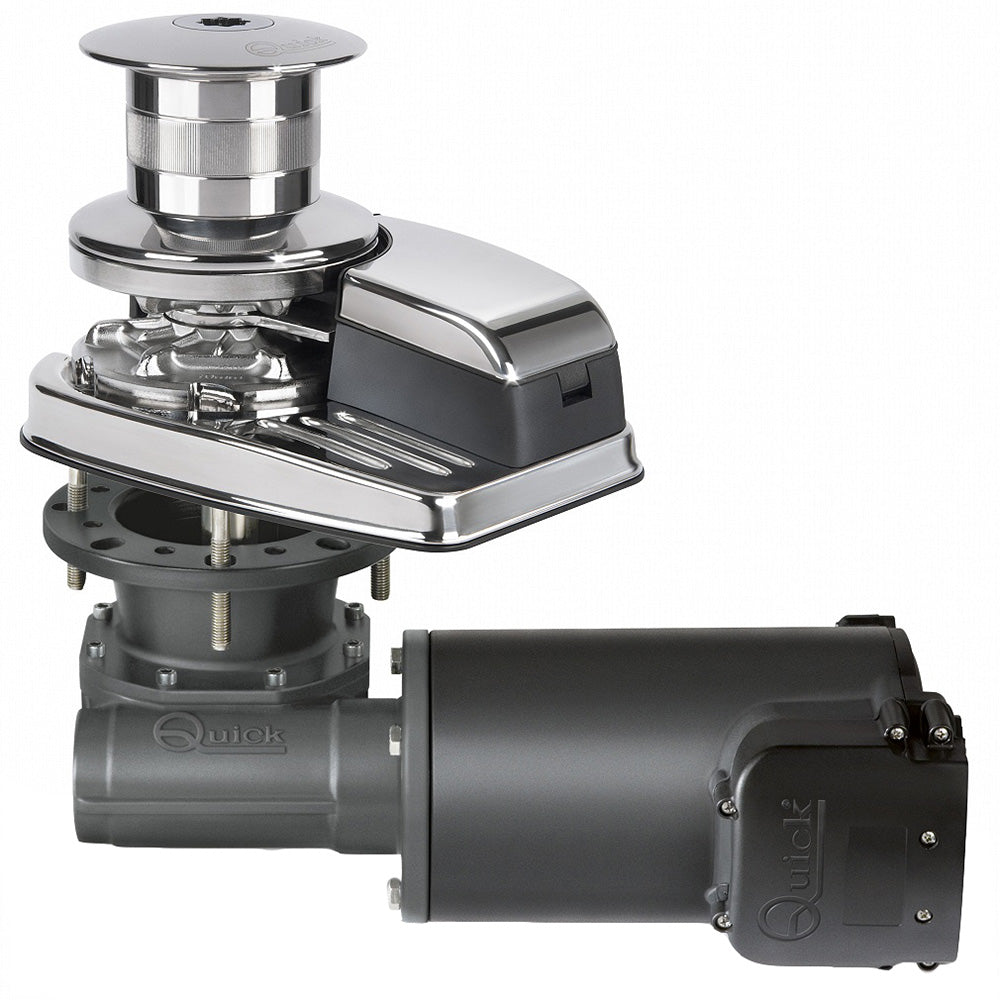

Dylan DR4 Windlass - 2000W, 24V, 12mm Gypsy - 3/4" Rope
The DR4 is a vertical application windlass perfect for boats with limited deck space. This base is composed of AISI 316 stainless steel and anodized aluminum in hard oxide. It is equipped with an emergency manual lift system so you can easily retrieve your anchor during instances when you may lose battery power on your boat. Features include an IP67 watertight motor. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Vertical Windlass
- Includes T6315-24 solenoid
- 12mm Gypsy
- Requires 3/4" Rope
- For boats 49- 66 ft
- 1500W Motor, 12V
- Base in stainless steel AISI316 and anodized aluminum in hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP66 watertight motor (2000W)
- Anodized aluminum gearbox
Specifications
Specifications
Identification
| MPN | FSDR20240012A00 |
|---|
Electrical
| Motor power | 2000 W |
|---|---|
| Motor supply voltage | 24 V |
| Current absorbtion @ working load | 105 A |
Certifications & Protection
| Maximum pull | 1600 Kg / 3527 lb |
|---|
General
| Maximum working load | 750 Kg / 1653 lb |
|---|---|
| Working load | 250 Kg / 551 lb |
Performance
| Maximum chain speed | 35,0 m/min / 114.8 ft/min |
|---|---|
| Maximum chain speed @ working load | 22,3 m/min / 73.2 ft/min |
Physical
| Weight | 68.1 lb |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
