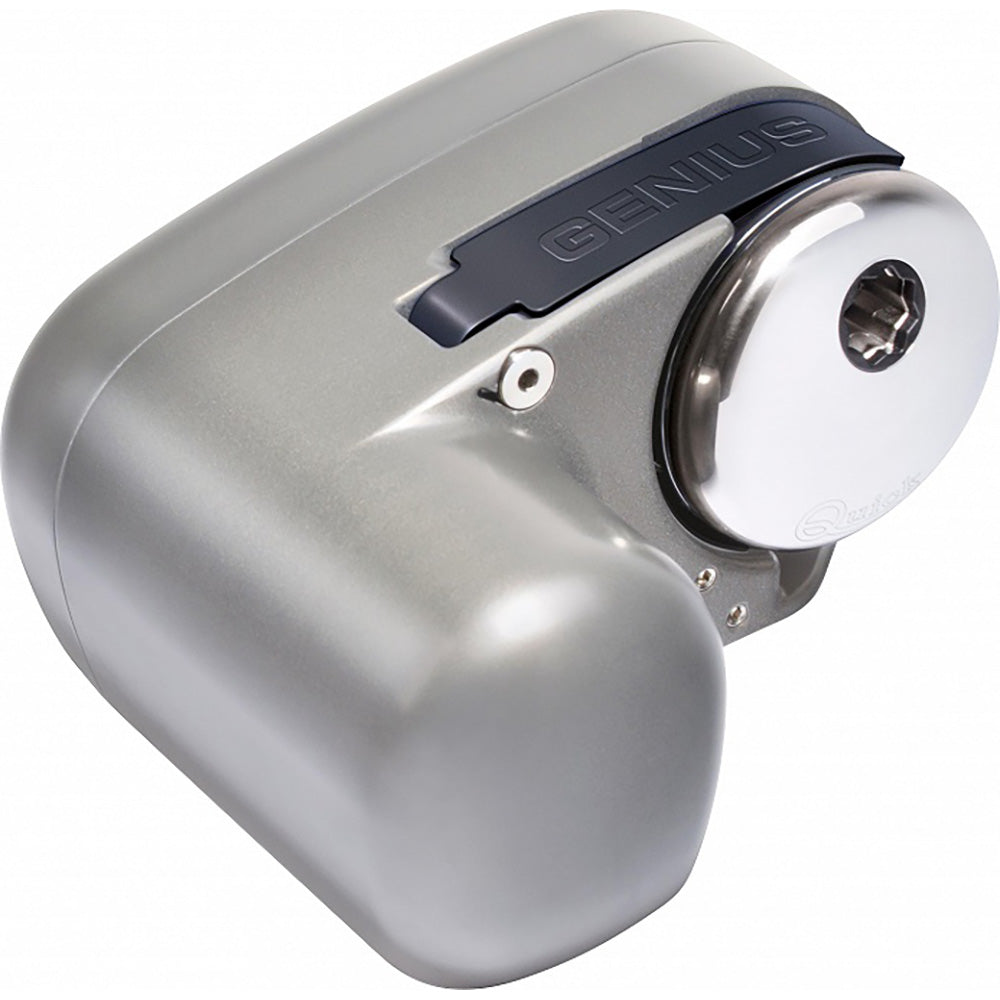

Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- White composite material base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Includes T6411-12 Solenoid
Specifications
Specifications
Identification
| MPN | FSGM01500007A00 |
|---|
Electrical
| Motor power | 150 W |
|---|---|
| Motor supply voltage | 12 V |
| Current absorbtion @ working load | 29 A |
Certifications & Protection
| Maximum pull | 220 Kg / 485 lb |
|---|
General
| Maximum working load | 70 Kg / 154 lb |
|---|---|
| Working load | 35 Kg / 77 lb |
Performance
| Maximum chain speed | 38,9 m/min / 127.6 ft/min |
|---|---|
| Maximum chain speed @ working load | 28,5 m/min / 93,5 ft/min |
Physical
| Weight | 13.2 lb |
|---|
