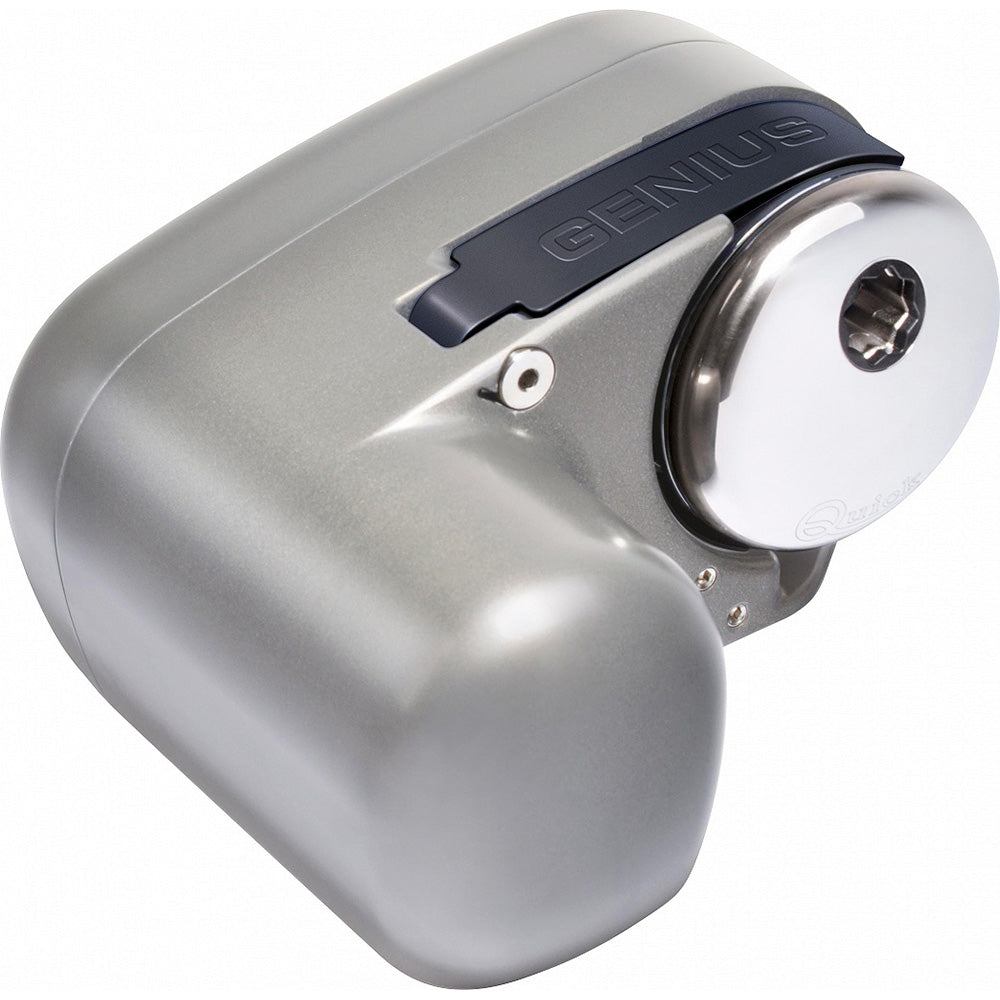

Genius GP2 2000FF Windlass - Automatic Free-Fall System - 800W, 12V, 8MM or 5/16" Gypsy
The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button, the windlass will release its clutch and the gypsy will freewheel. To stop the free-fall, depress the up control button on the windlass; the clutch will engage, stopping the gypsy and allowing retrieval of the chain.
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- Includes T6415-12 Solenoid
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclic gearbox (GP2 1500-2000)
Specifications
Specifications
Identification
| MPN | FSGP22012F08A00 |
|---|
Electrical
| Motor power | 800 W |
|---|---|
| Motor supply voltage | 12 V |
| Current absorption @ working load | 96 A |
Certifications & Protection
| Maximum pull | 900 Kg / 1984 lb |
|---|
General
| Maximum working load | 350 Kg / 772 lb |
|---|---|
| Working load | 120 kg/265 lb |
Performance
| Maximum chain speed | 29,6 m/min / 97.1 ft/min |
|---|---|
| Maximum chain speed @ working load | 20 m/min 65.6 ft/min |
Physical
| Weight | 10,9 Kg / 24 lb |
|---|
