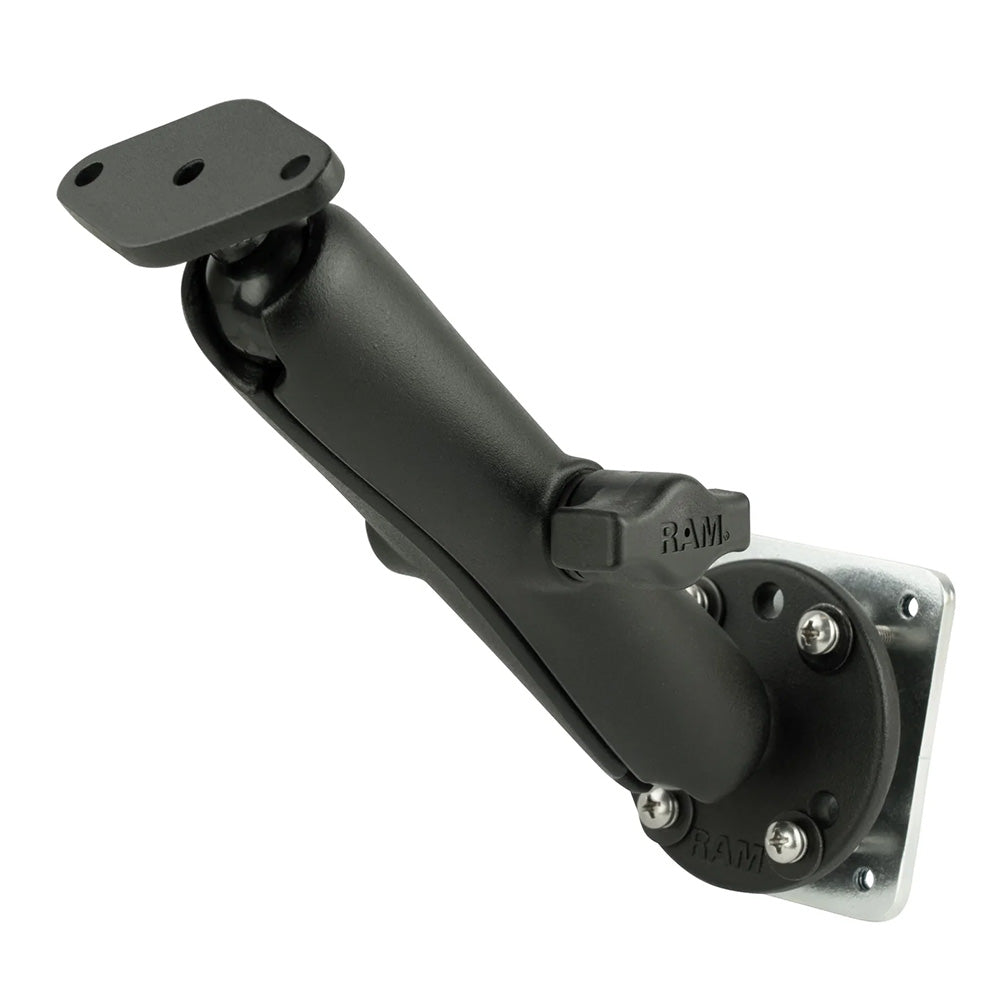

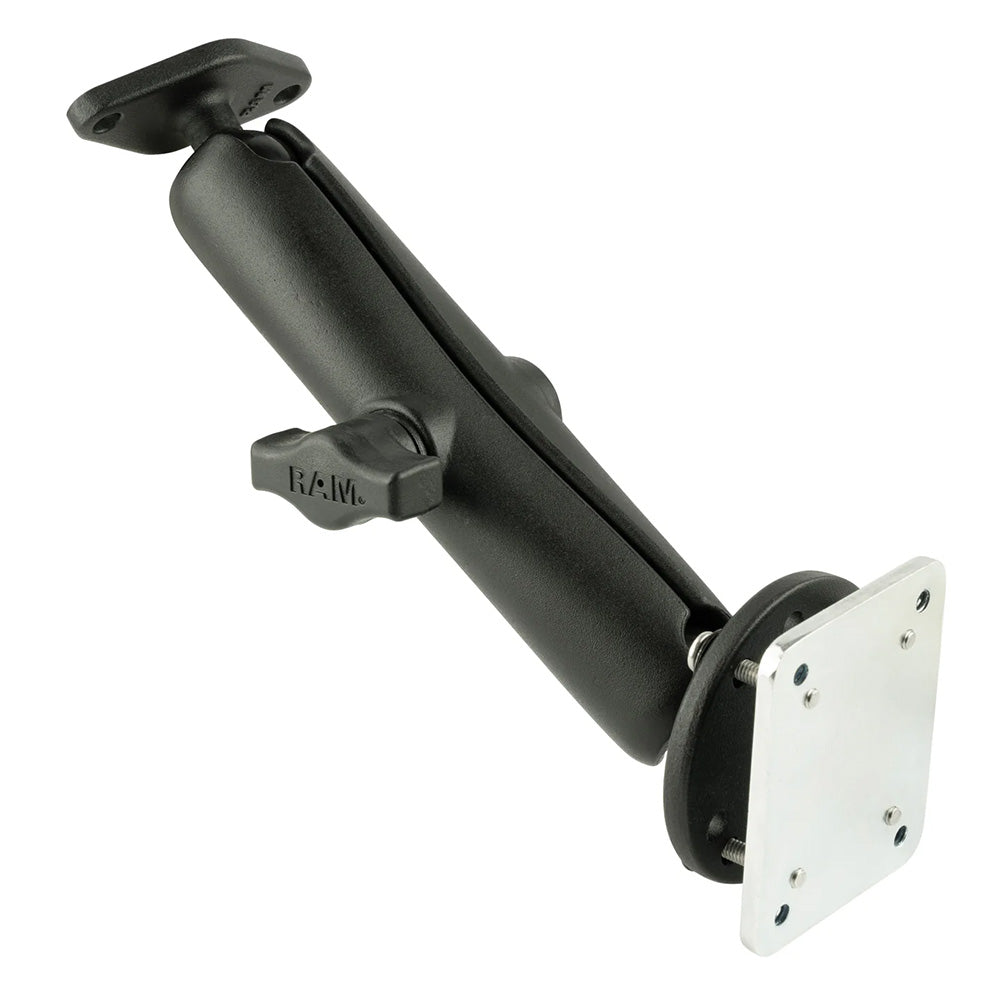

Double Ball Drill-Down Mount with Diamond Plate & Backer Plate
This mount consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, a long double socket arm, a diamond base adapter, and a backer plate. The mount is designed with a 1-diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
Specifications
Specifications
Identification
| MPN | RAM-B-138U-C-INT3 |
|---|
General
| Hardware Included | (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers |
|---|
Physical
| Product Dimensions (inch) | Overall Height: 7.3125 in. |
|---|---|
| Socket to Socket Length (inch) | 5.31” |
| Hole Pattern (inch) | Diamond Plate: 2-Hole AMPS: 1.912", Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter |
| Ball Size (inch) | B size (1”) |
| Weight Capacity | The standard use is 2 lbs. and the heavy-duty use is 1 lb. |
| Materials | Steel, marine-grade aluminum |
| Weight | 1.0 lb. |
