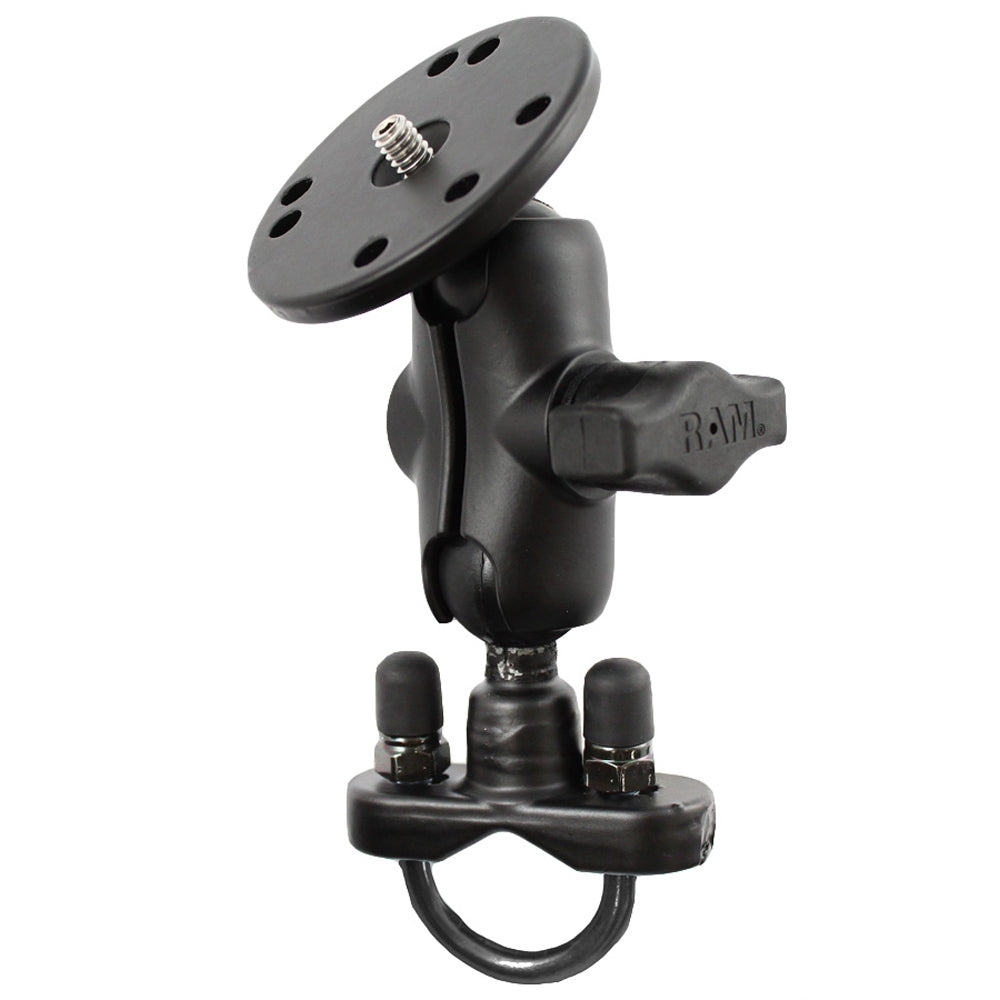

RAM Mount Handlebar U-Bolt Base Short Arm w/1/4" -20 Threaded Stud f/ Cameras

RAM Handlebar Rail Mount with Zinc Coated U-Bolt Base, Short Double Socket Arm & Round Base Adapter that Contains a 1/4"-20 Thread for Cameras
Part #: RAM-B-149ZA-C1U

The RAM zinc coated u-bolt rail base consists of the 1" diameter ball and socket system with RAM Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag. The male 1/4" long, 1/4"-20 thread in the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom of most still and video cameras.

In The Box:

Package Dimensions:

5" x 5" x 1"

Available Method:

• Ground
• 2 Day

* ALL WARRANTY IS THROUGH MANUFACTURE *
