RAM® X-Grip® Phone Mount with Vibe-Safe™ & Reservoir Base

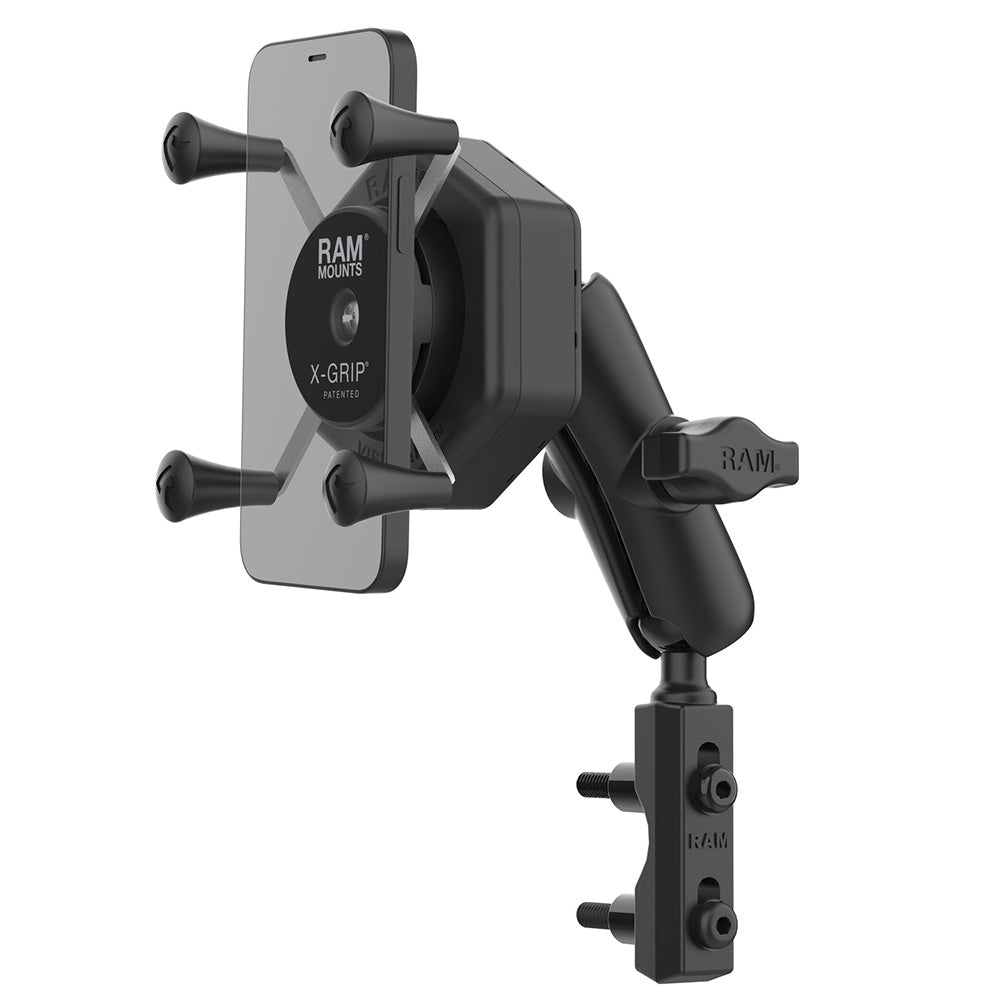

The RAM® X-Grip® Phone Mount with RAM® Vibe-Safe™ & Reservoir Base (RAM-B-174-UN7-462) is a combination of the RAM® X-Grip® Phone Mount with Motorcycle Brake/Clutch Reservoir & Handlebar Base and the RAM® Vibe-Safe™—RAM's vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM® X-Grip® can rotate between portrait and landscape by loosening the center screw.

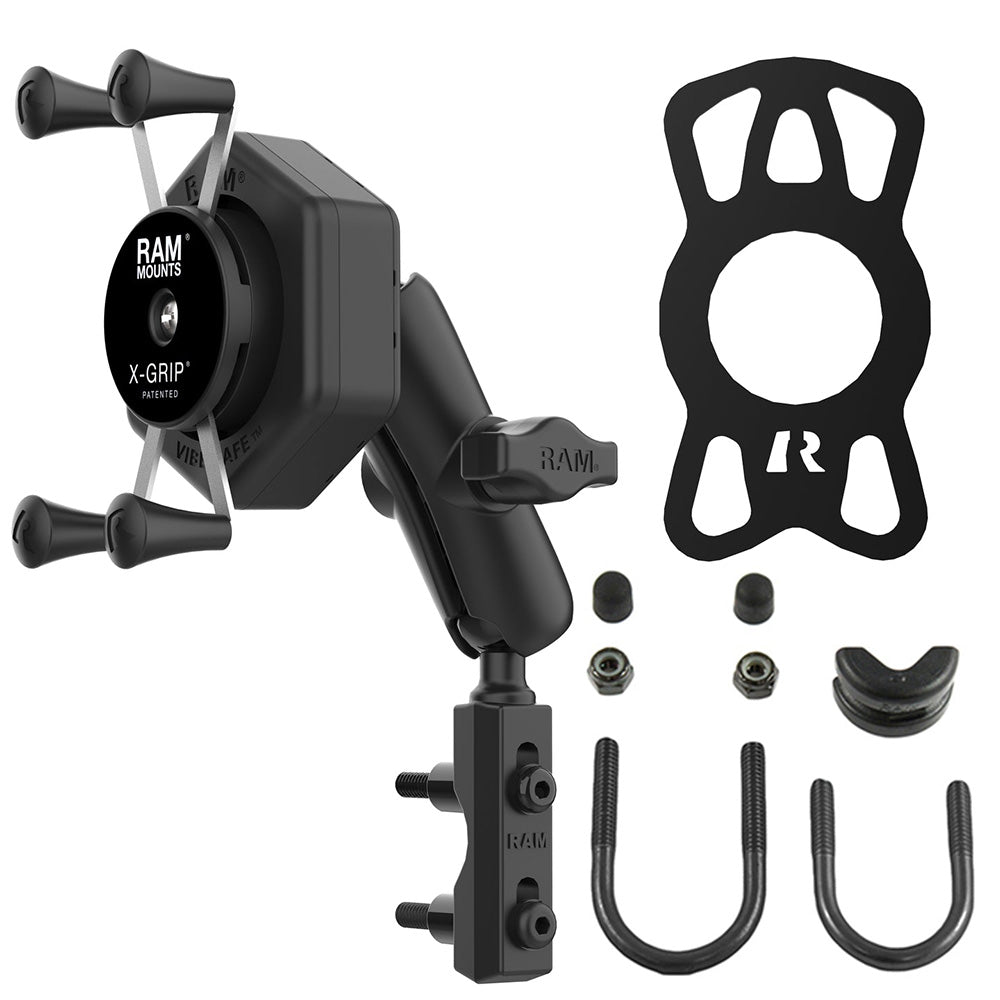

This product comes with one (1) medium B size arm, one (1) RAM® Motorcycle Brake/Clutch Reservoir, and a handlebar Ball Base that attaches to either the handlebar or brake/clutch and accommodates rails from .5" - 1.25" in diameter, and an optional device tether that is recommended for outdoor applications. This kit also includes one (1) zinc-coated metal U-bolt that accommodates rails ranging from 0.5" to 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of the handheld device with a case, sleeve, or skin when determining the overall size.
Features:
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Unique structure and thoughtfully designed with all industries in mind
- Backed by a lifetime warranty
Specifications
Specifications
Identification
| MPN | RAM-B-174-UN7-462 |
|---|---|
| Barcode | 793442017933 |
General
| Hardware Included | (1) Optional Tether, (1) Glue Tube for Rubber Caps, (2) M6 x 55mm Hex Bolts, (2) #1/4-20 x 2" Hex Bolts, (2) 1/4"-20 x 2.5" Hex Bolts, (2) 1/2" Spacers, (2) 1/4" Split Lock Washers, (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, and (1) U-Bolt Spacer |
|---|---|
| Packaging Type | Retail Bag |
Physical
| Holder Dimensions | Width Range: 1.875" - 3.25", Depth Range: .875" max |
|---|---|
| Socket to Socket Length | 3" |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs, Heavy-Duty Use: 1 lb |
| Materials | Marine-grade aluminum, High strength composite, Stainless steel |
| Weight | 1.26 lbs |
Performance
| Clamp Range | .5" - 1.25" diameter |
|---|
