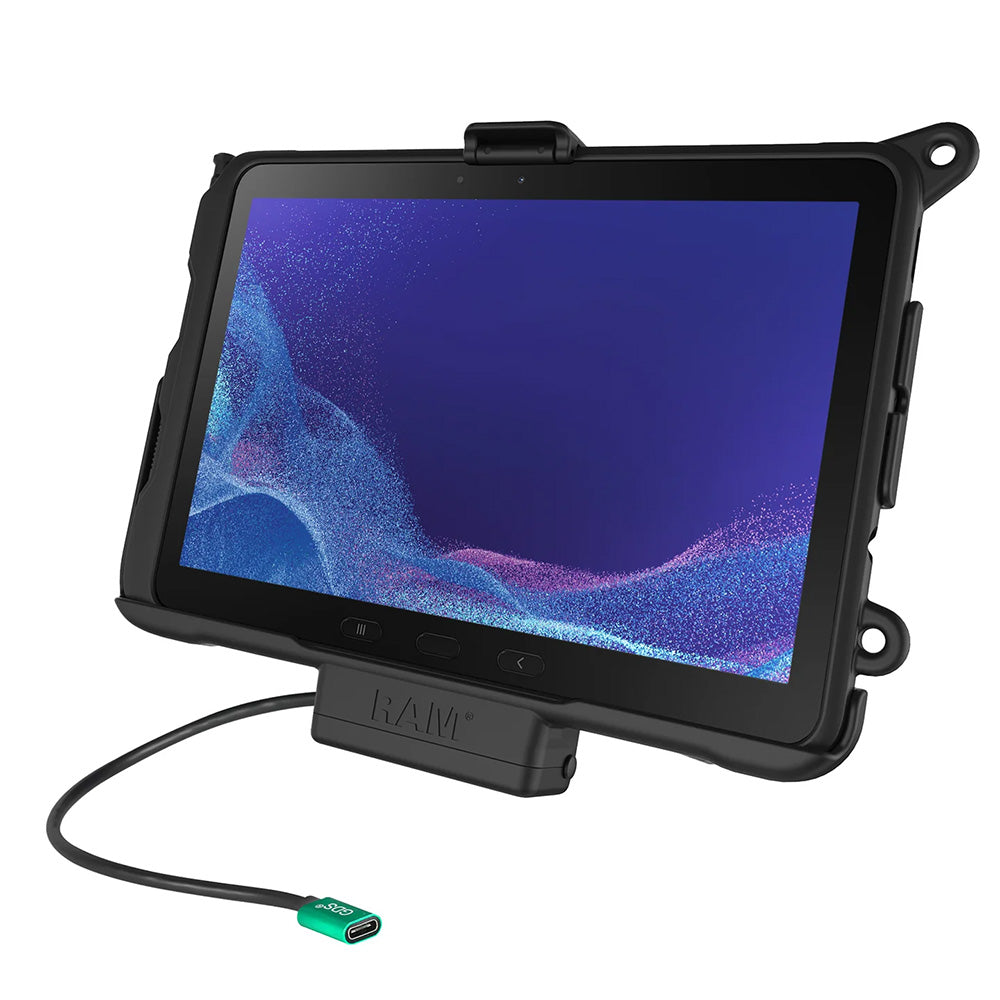

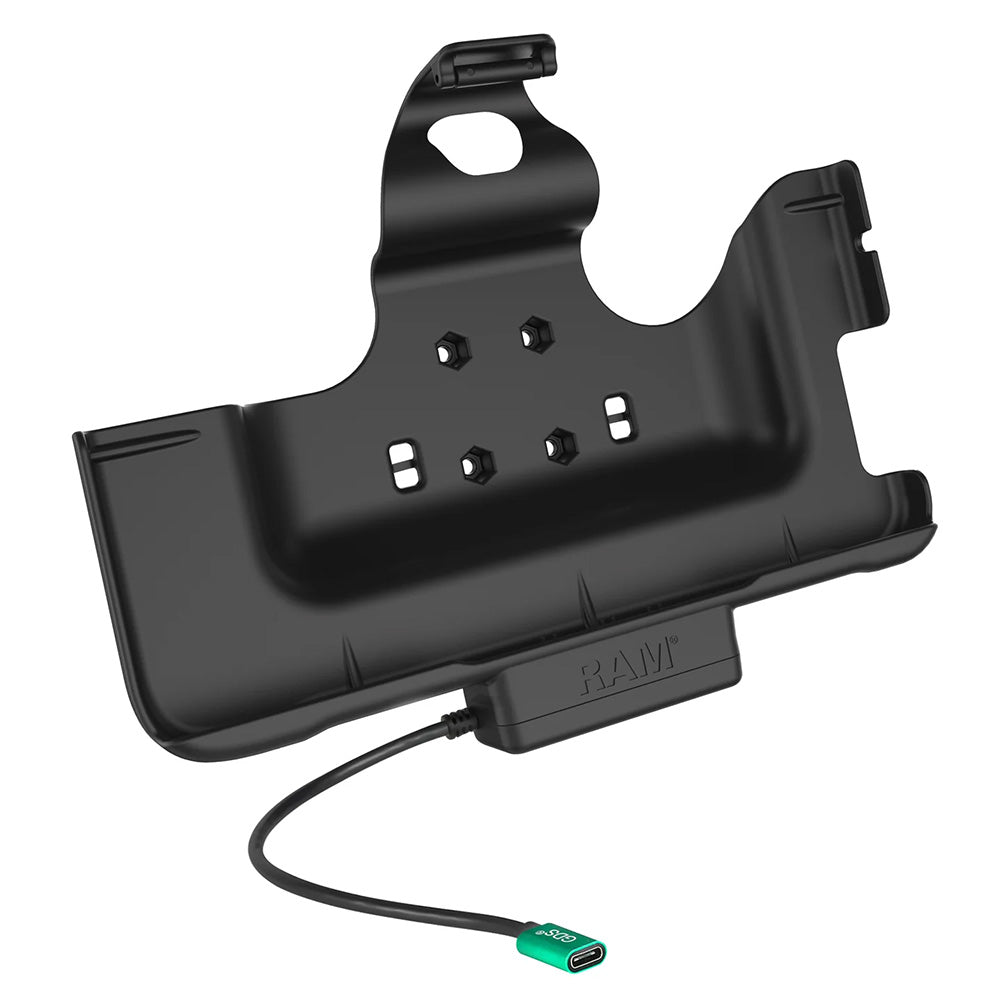

RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro
The RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.
Features:
- The powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through an integrated pogo pin connector; for light-duty use and landscape mode only
- Access to speakers, mics, and headphone jack remains while the device is docked
- Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty
Specifications
Specifications
Identification
| MPN | RAM-HOL-SAM52CPU |
|---|---|
| Barcode | 793442017360 |
General
| Hardware Included | (4) #8-32 x 5/8" Machine Screws(4) #8-32 Nylock Nuts(1) Cable Clamp(2) Large Cable Ties(5) Small Cable Ties |
|---|---|
| Input Connector | USB Type-C Female |
| Packaging Type | Poly Bag |
Physical
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" |
|---|---|
| Materials | High-strength composite |
| Input Cable Length | 215mm |
| Weight | 0.71 lbs |
Electrical
| Input Voltage | 5.3-5.4VDC |
|---|---|
| Output Voltage | 5VDC |
| Power Output | 500mA |
Certifications & Protection
| Warranty | 3-year warranty |
|---|
