Raymarine  |  SKU: RAY/A80802  |  Código de barras: 723193862520

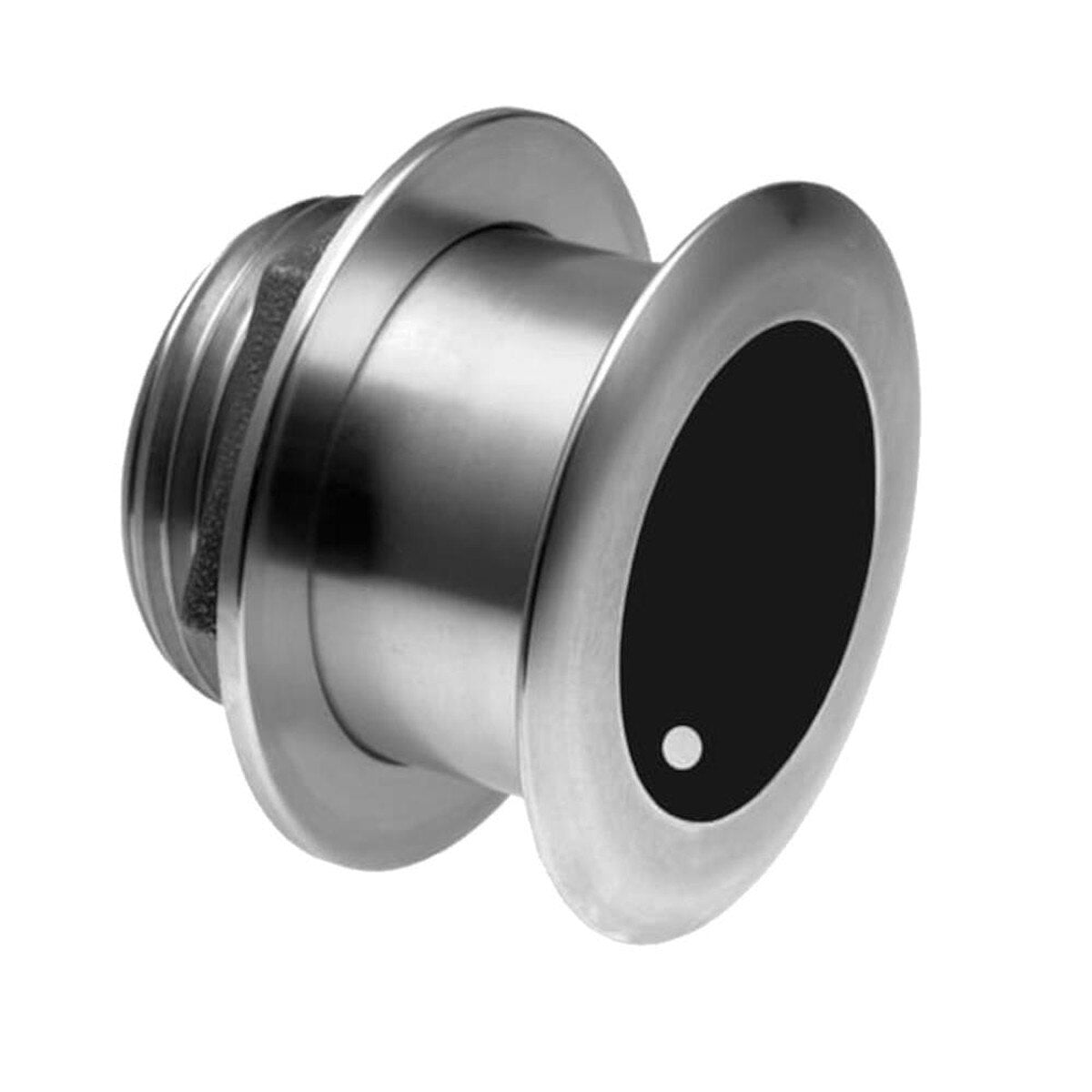

SS175MW (20°)

1kW Medium-Wide CHIRP Tilted Element Thru-Hull Transducer

Precio normal $2,19900

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column

Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR's most popular Tilted Element housings which includes a ceramic element fixed at a 20 degangle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300ft)
  • Medium frequency: 60-100 kHz - 57 deg to 73 deg beamwidth (port/starboard) - 16 deg average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID technology

Especificaciones

  • Product Series
    B175 / SS175
  • MPN
    A80802
  • Physical
    Flange Size: 5.30" (135 mm)
    Usable Shaft Length: 2.18" (55 mm)
    Weight: 6 lbs (2.7 kg)
  • Mounting
    Type: Tilted-Element Thru-Hull
    Tilt: 20°
    Hole Size:
    - Fiberglass: 3 3/4" (95 mm)
    - Metal: 4 1/8" (105 mm)
  • Sonar
    Power: 1000 W (1kW)
    Frequency:
    Medium-Wide CHIRP
    - Frequency Range: 60-100 kHz
    - Beamwidth: 57°-73º
    Temperature: Yes
  • Connectivity
    Raymarine
  • Cable Length (Ft)
    33

Reseñas (0)

In The Box

In The Box:

Transducer
Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
