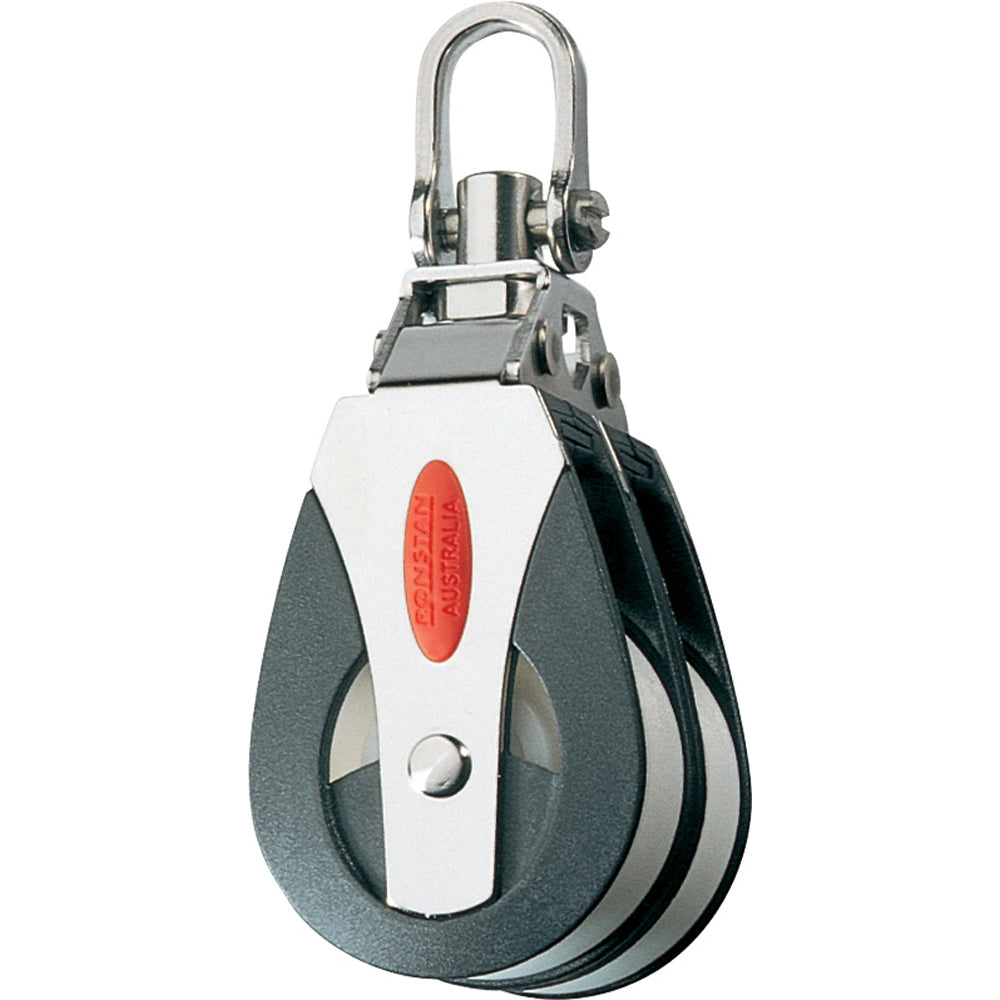

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Head swivels freely.
Features:
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Slotted pin shackle eliminates fouled lines
- Two way head post
Applications:
- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')
Materials:
- U.V. stabilized Acetal sheaves
- Impact and U.V. resistant, fiber reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
Specifications:
Specifications
Specifications
Identification
| MPN | RF41200 |
|---|---|
| Barcode | 9316800557400 |
General
| Sheave Ø | 40mm(1-9/16") |
|---|---|
| Max. Rope Ø | 10mm(7/16") |
| Pin Ø | 5mm(3/16") |
| M.W.L. | 600kg(1,320lbs) |
| B. L. | 1,200kg(2,650lbs) |
Physical
| Weight | 135g(4.8oz) |
|---|
