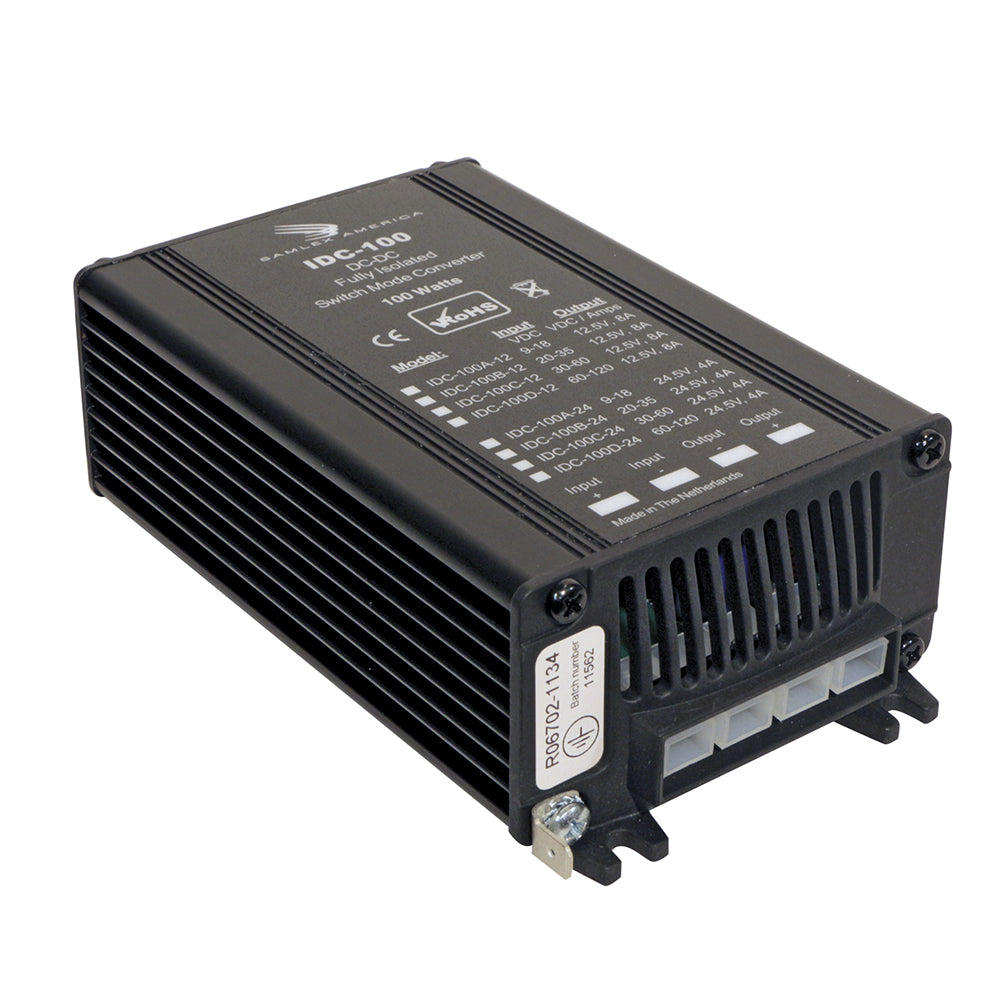

100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V Output
IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Features:
- Fully Isolated
- Short Circuit Protected
- Current Limited
- 2 Year Warranty
Specifications
Specifications
Identification
| MPN | IDC-100A-12 |
|---|---|
| Barcode | 622988067013 |
Applications:
| Note 1 | Earth moving equipment |
|---|---|
| Note 2 | Heavy trucks |
| Note 3 | Buses |
| Note 4 | Marine vehicles |
| Note 5 | CB radios |
| Note 6 | 12 Volt lighting systems |
| Note 7 | AM/FM sound systems |
