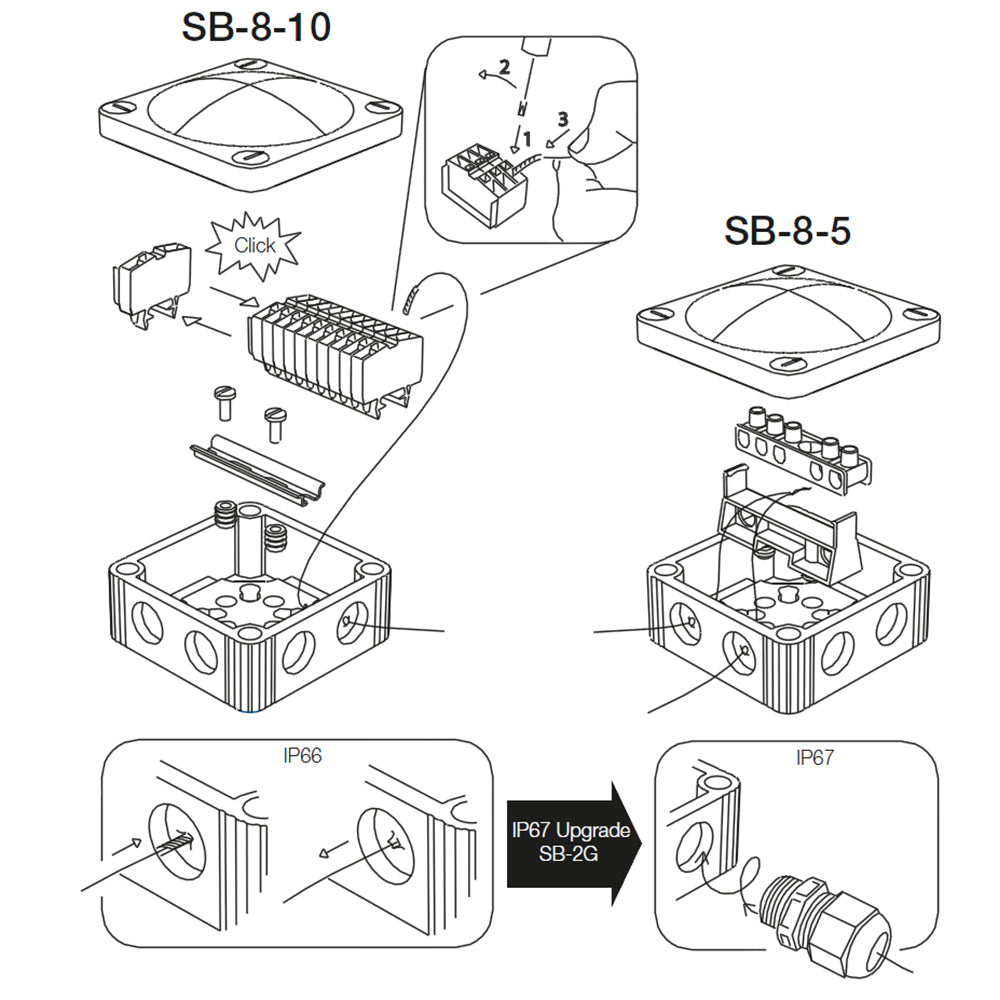

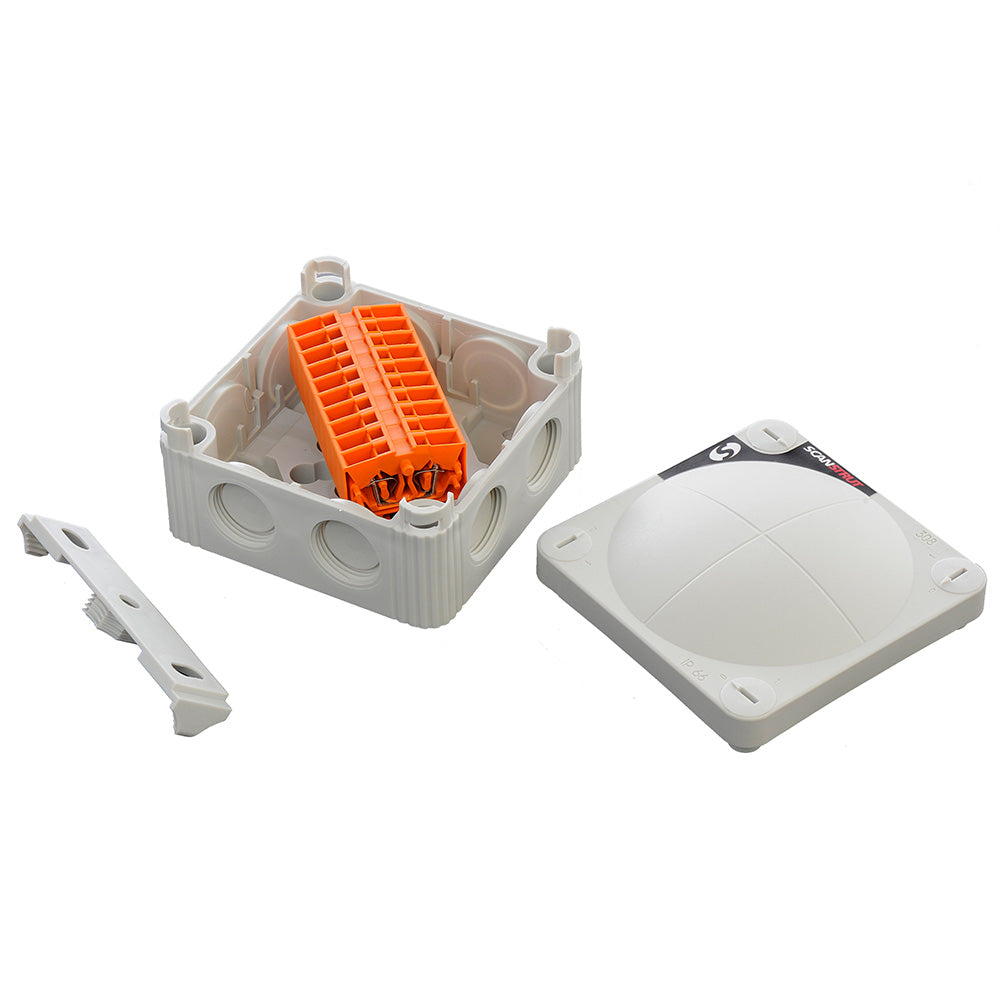

Scanstrut SB-8-10 Junction Box
Scanstrut's SB-8-10 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables.
Heavy-duty junction box manufactured from marine grade polypropylene and features 5 screw-down terminals.
Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 10 modular terminal blocks. Offering 10 terminations.
Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables.
Features:
- Provides 10 screw-down terminals.
- Capacity for up to eight (8) cables to enter the box.
- Upgradable to IP68 with use of SB-2G Cable Seals (sold separately)
Specifications
Specifications
Identification
| MPN | SB-8-10 |
|---|---|
| Barcode | 5060114793446 |
Physical
| Maximum cable size (diameter) | .50" (12 mm) |
|---|---|
| Maximum wire size | 28/0.08 to 12/3-3 |
| Dimensions (L x W x H) | 3.35" x 3.35" x 2" (85 x 85 x 50 mm) |
| Color | Grey |
| Material | Marine grade polypropylene |
| Watertight Installation | Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress. |
General
| Note 1 | Ten (10) terminal block w/600 V rating and 20 A |
|---|
