Scanstrut SB-8-5 Junction Box
Descripción
Descripción

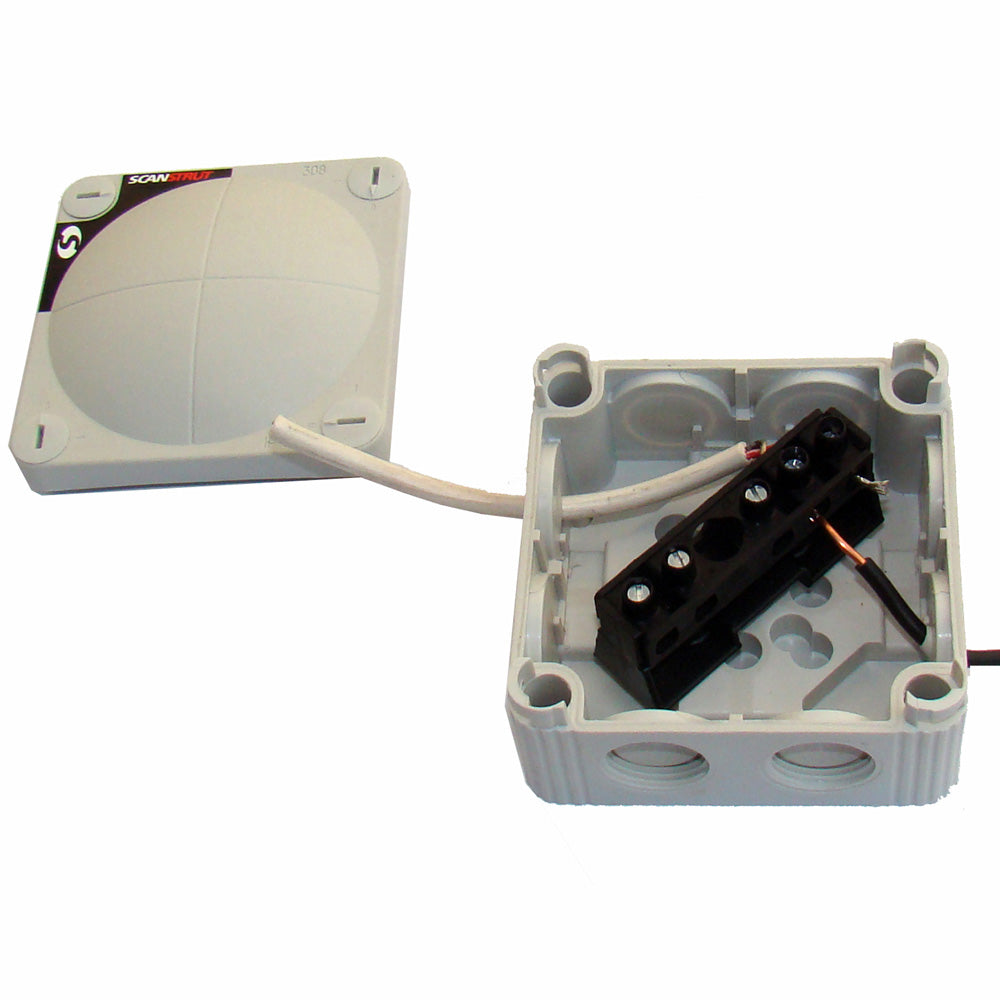

SB-8-5 Junction Box
Scanstrut's SB-8-5 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables.
Heavy-duty junction box manufactured from marine grade polypropylene and with features 5 screw-down terminals.

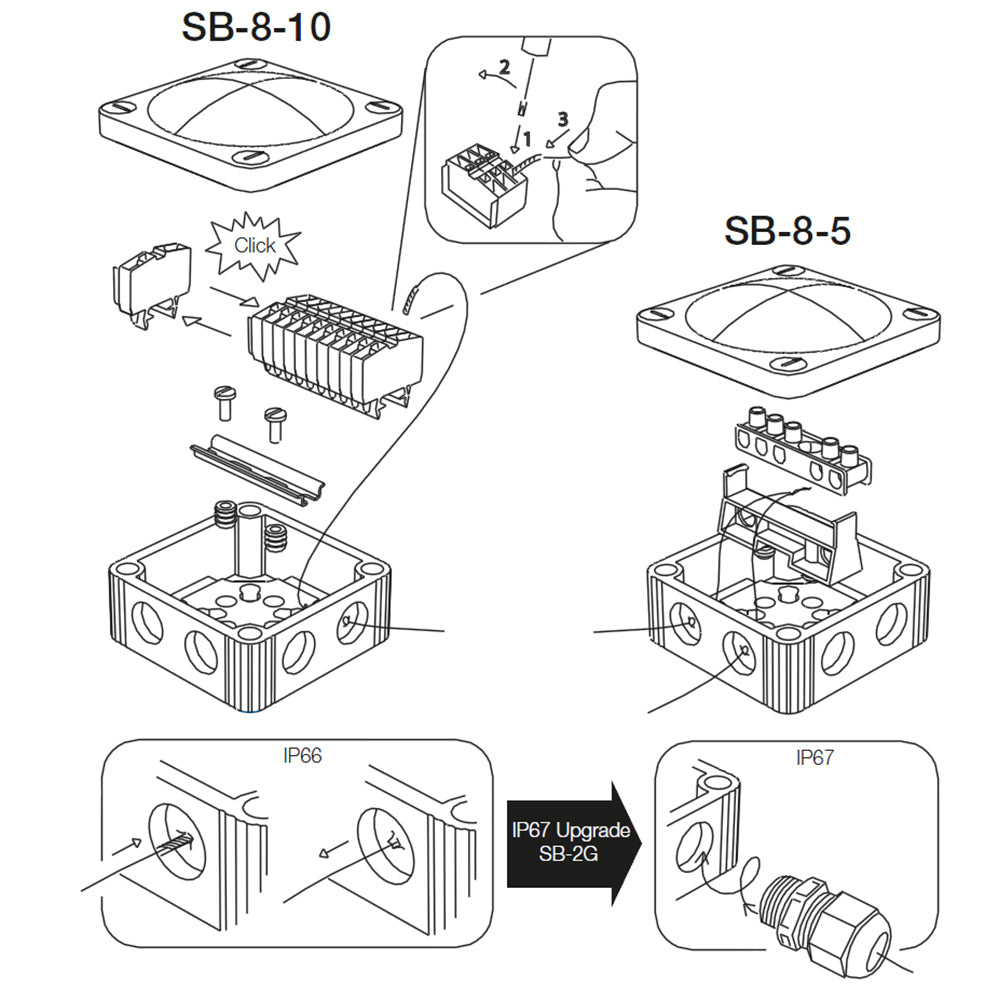

Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 5 modular terminal blocks. Offering 5 terminations.
Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables.
Features:
- Provides 5 screw-down terminals.
- Capacity for up to eight (8) cables to enter the box.
- Upgradable to IP68 with use of SB-2G Cable Seals (sold separately)
Specifications
Specifications
Identification
| MPN | SB-8-5 |
|---|---|
| Barcode | 5060114793439 |
Physical
| Maximum cable size (diameter) | .50" (12 mm) |
|---|---|
| Maximum wire size | 16/1.5 to 11/4 |
| Dimensions (L x W x H) | 3.35" x 3.35" x 2" (85 x 85 x 50 mm) |
| Color | Grey |
| Material | Marine grade polypropylene |
| Watertight Installation | Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress. |
General
| Note 1 | Five (5) terminal block w/400 V rating and 32 A |
|---|
