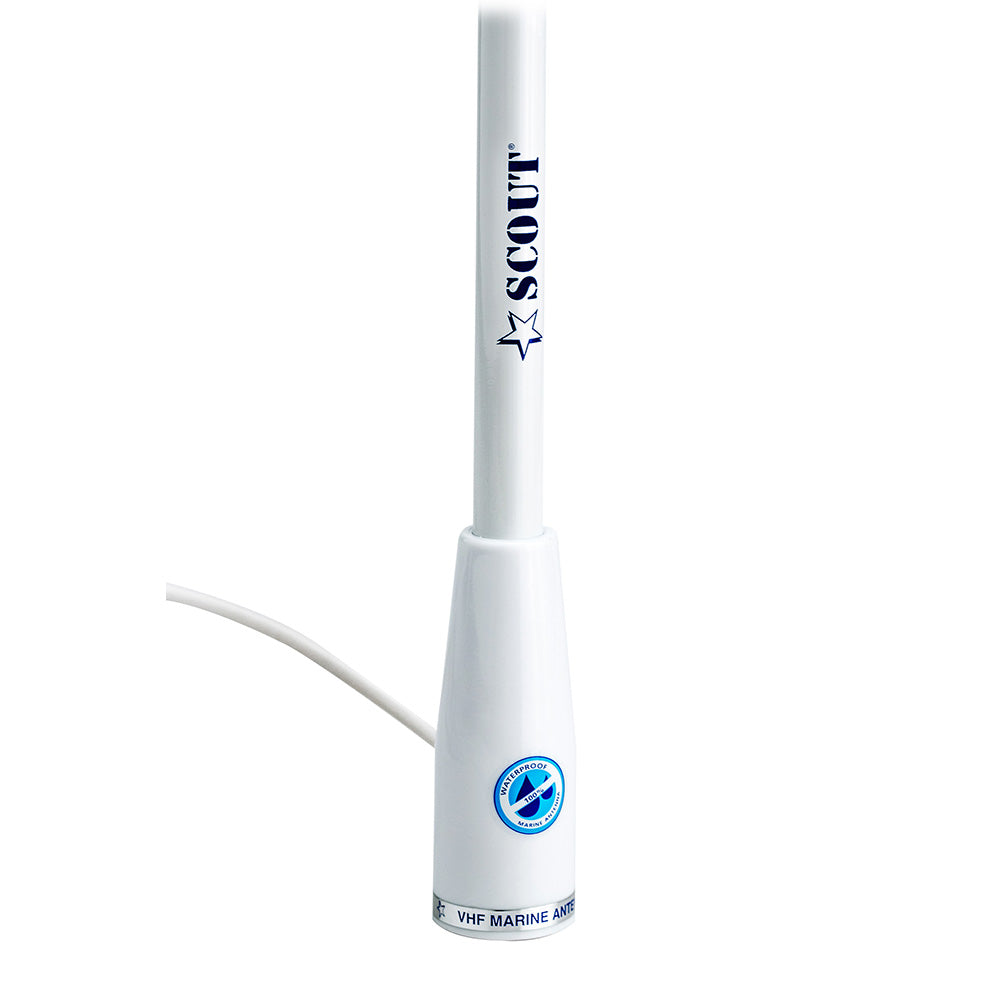

5' White VHF Antenna 3dB Nylon Ferrule with 5M RG-58 Coax KS-22
There’s no need to introduce this classic of marine communication. The antenna that has become a standard for users now meets the excellence of the patent 100% WATERPROOF.
It’s built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with a high gloss anti-UV filter to prevent color deterioration.
The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.
Features:
- Foam injected – 100% WATERPROOF – IP69
- Anti–UV high gloss finish
- 5 m coaxial cable RG 58 CU MIL
Specifications
Specifications
Identification
| MPN | PF AN NVHF00002T |
|---|---|
| Barcode | 8052990121762 |
General
| Frequency | 156-162 MHz |
|---|---|
| Impedance | 50 ohms |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| DC ground | Yes |
| Whip material | Fiberglass |
| Coaxial cable | 5 m (16,4′) RG 58 CU MIL |
Physical
| Electrical length | 1/2 λ |
|---|---|
| Mounting | 1″ x 14 thread |
| Length | 1,5 m (5′) |
| Weight | 0,39 kilo |
Electrical
| Max power input | 50 W |
|---|
