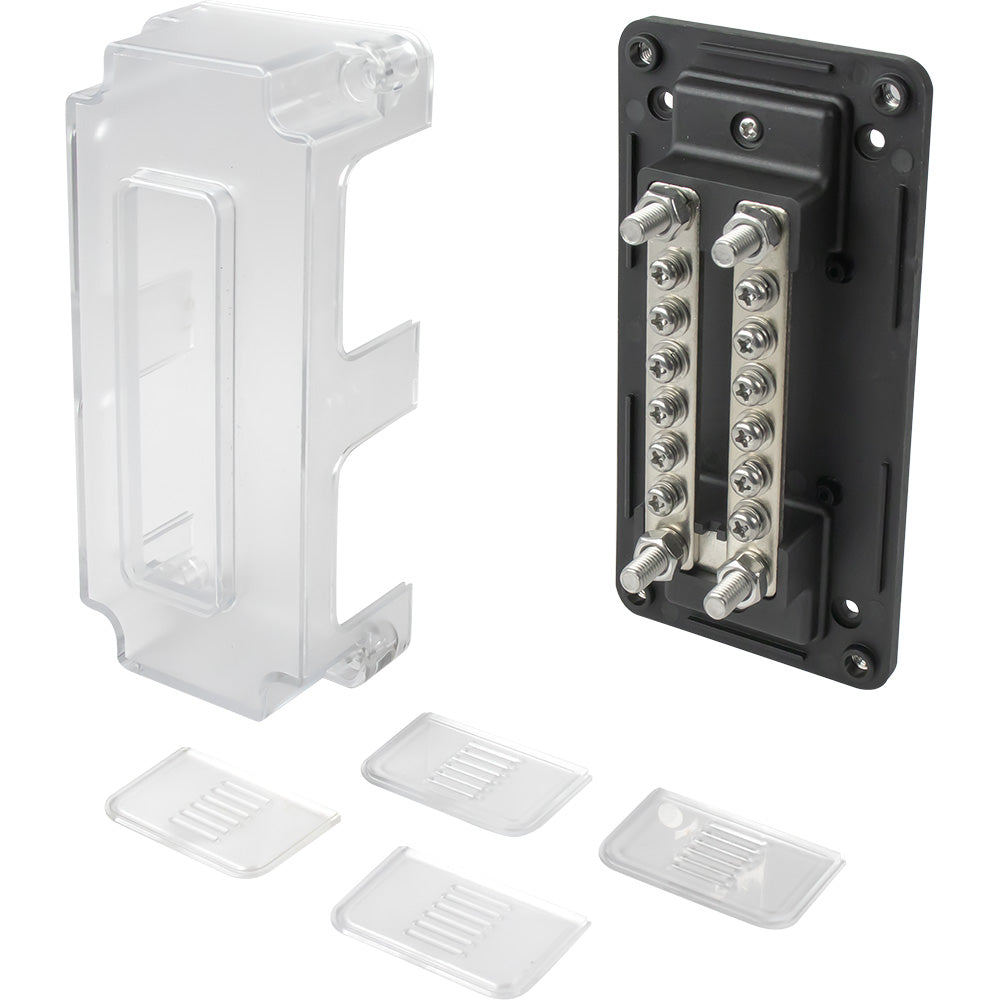

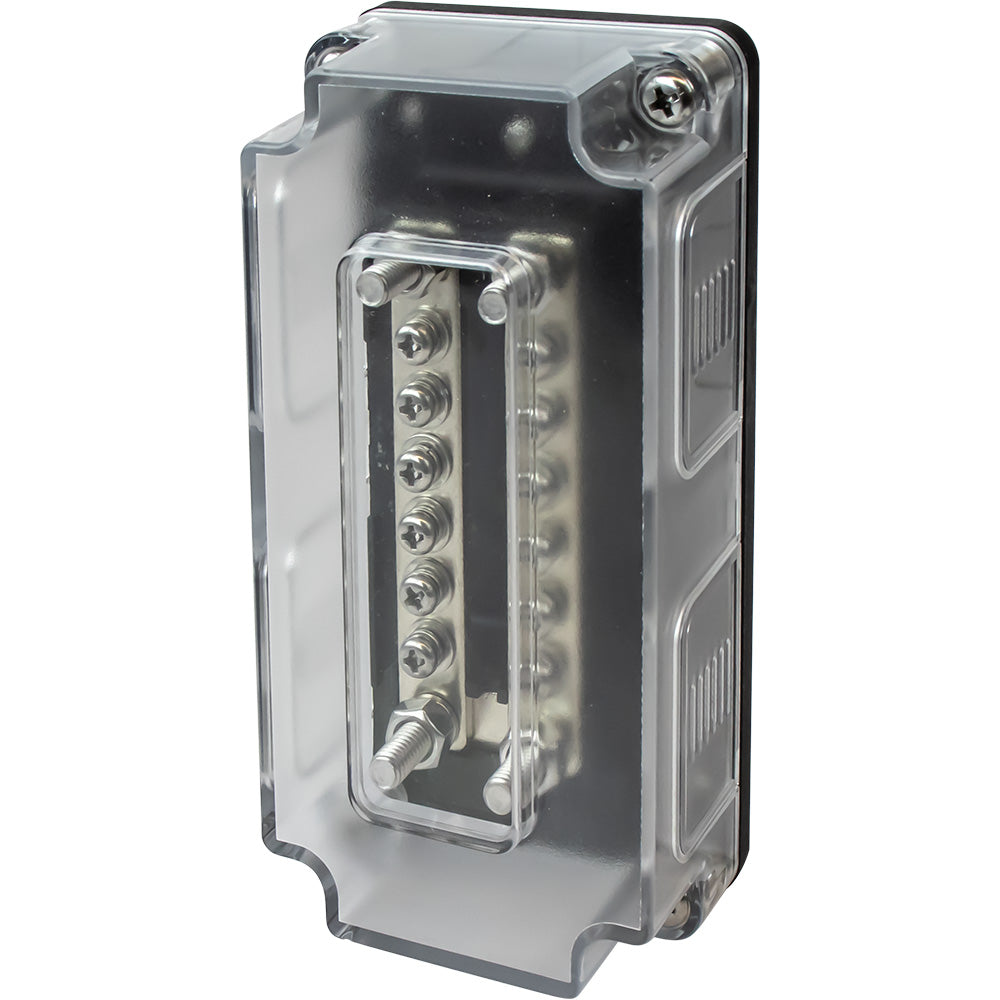

Dual Buss Bar with Cover - 12 Terminals
This dual bus bar is designed for DC positive or negative distribution on one block or AC neutral and safety ground collection on one block. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.
Features:
- Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals per buss
- Installs with four #8 FH fasteners (included)
- 48VDC, 150A per buss; 300VAC, 150A per buss
- CE and RoHS compliant
Specifications
Specifications
Identification
| MPN | 426693-3 |
|---|---|
| Barcode | 035514433198 |
General
| Terminals | 12 |
|---|---|
| Max. Amps | 150 |
| Fastener | #8 FH |
Physical
| Length (inch) | 5-1/2" |
|---|---|
| Width (inch) | 2-3/4" |
| Depth (inch) | 1-11/16" |
| Weight | 0.59 lb. |
