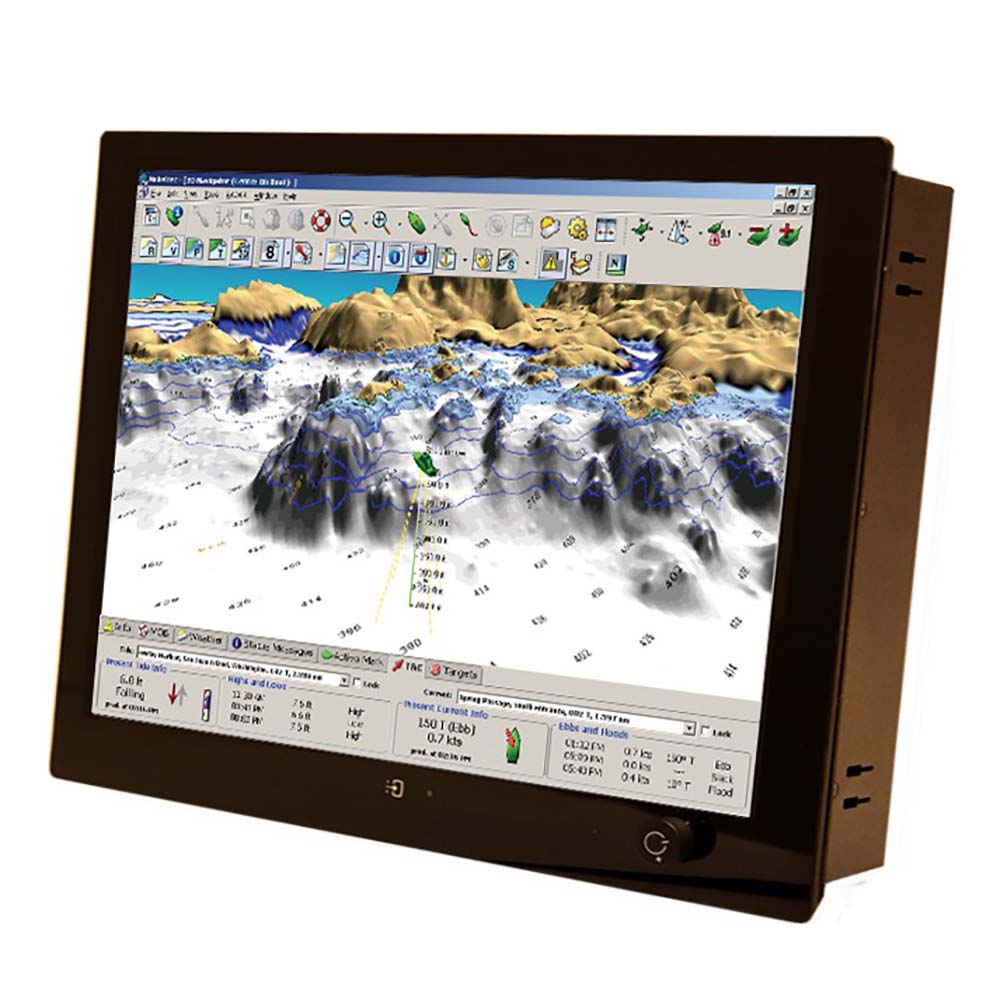

Seatronx 27" Wide Screen Pilothouse Touch Screen Display
Precio normal
$5,69100
Precio unitario
SKU:
STR/PHT-27W
Precio normal
$5,69100
Precio unitario
Descripción
Descripción
27" Wide Screen Pilothouse Touch Screen Display
Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.
The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.
Features:
- Projected Capacitive Touch
- Optical Bonding
- Optional Remote Control
Specifications
Specifications
Identification
| MPN | PHT-27W |
|---|
General
| Diagonal (active area) Inch | 27" |
|---|---|
| Contrast Ratio - 1000 | 1 |
| Backlight Dimming | 0 - max |
| Backlight Lifetime (Hrs) | 50,000 |
| Input terminal x1 HDCP HDMI | HDMI, DVI, VGA, Comp |
| Sealing Front | IP68 with Potentiometer |
Performance
| Native Resolution (Pixels) | 1920x1080 |
|---|---|
| Operating Temperature (°C) | 0 to 50 |
| Storage Temperature (°C) | -20 to 60 |
Lighting
| Brightness | 350 |
|---|---|
| Viewing Angle (left, right) | 89, 89 |
| Viewing Angle (up, down) | 89, 89 |
Electrical
| Power Source | 9-34V + and - |
|---|---|
| Power Consumption (AMPS @ 24VDC) | 3.5 |
| Inlet Plug DC Power | Screw Terminal |
Physical
| Mounting | Panel Mount , Vesa Mount |
|---|---|
| Dimensions | 26.01" x 16.46" x 2.40" |
| Cutout Dimensions | 25.3" x 15.75" x 2.40" |
