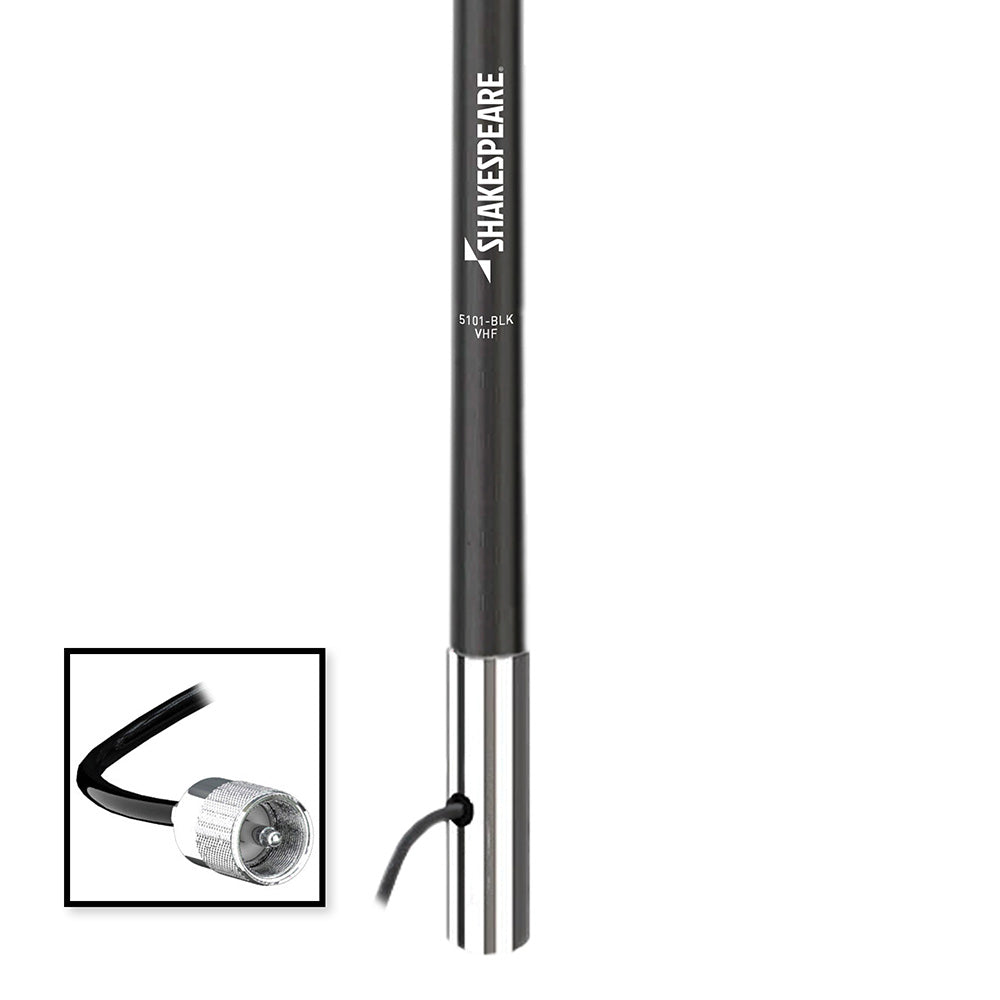

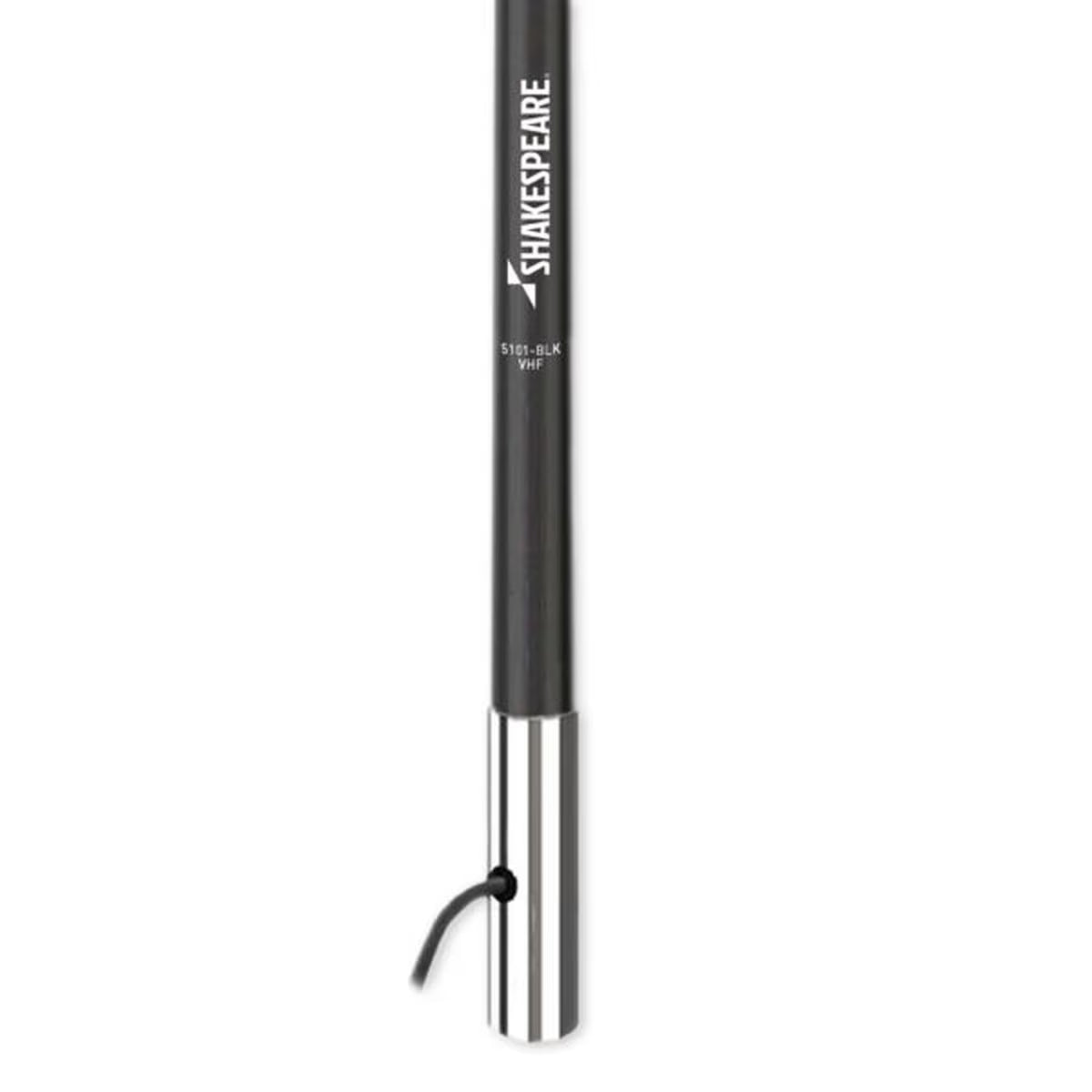

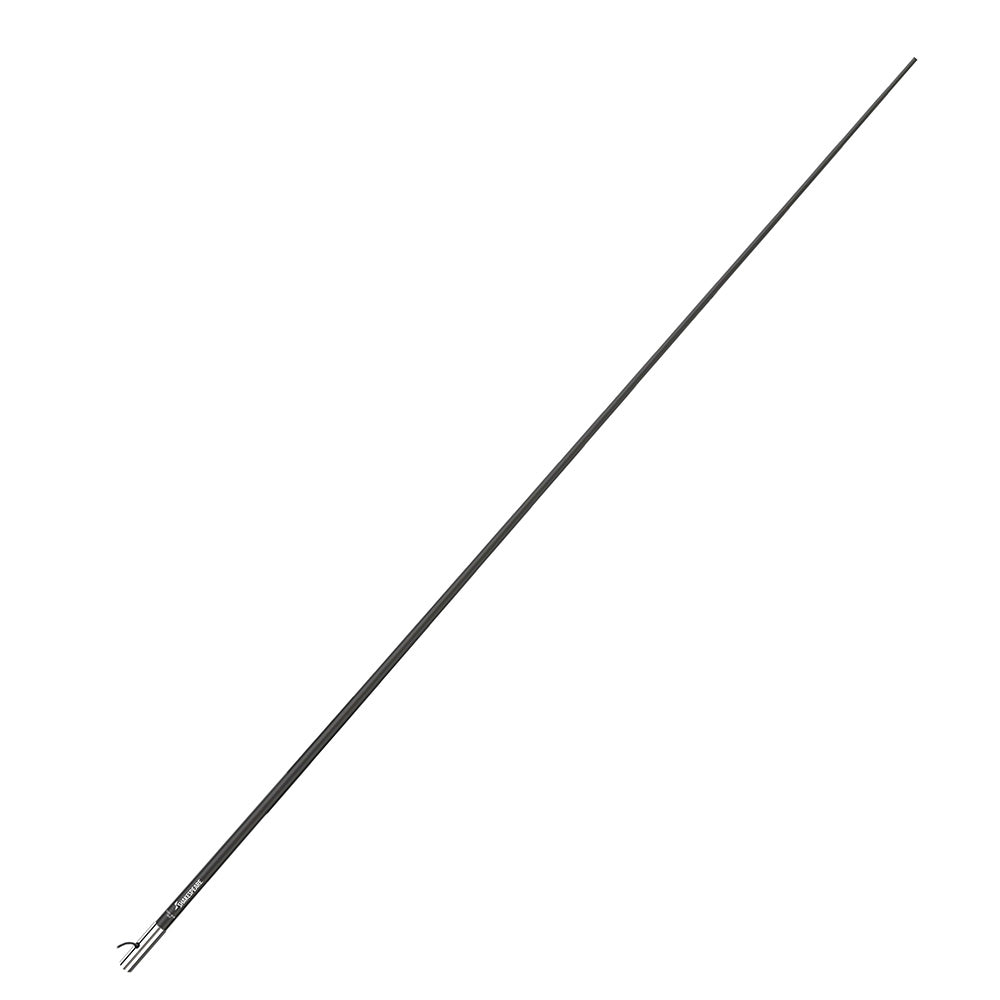

Shakespeare 5101 8’ Classic VHF Antenna w/15' RG-58 Cable - Black
Descripción
Descripción
5101 8’ Classic VHF Antenna with 15' RG-58 Cable - Black
A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance but superb value.
Features:
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- One section
Specifications
Specifications
Identification
| MPN | 5101-BLK |
|---|---|
| Barcode | 719441101107 |
Performance
| Frequency | VHF Marine Band |
|---|---|
| Gain | 6 dB |
Physical
| Bandwidth | (within 2.0 1 SWR): 5 MHz |
|---|---|
| Height (feet) | 8' |
| Suggested mount | Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system |
General
| SWR | 1.5:1 at 156.8 MHz |
|---|---|
| Max. Input (Watts) | 50 |
| DC Ground | YES - however, the antenna will read "open circuit" when tested with ohmeter. |
| Termination | 15' RG-58 cable |
| Polarization | Vertical |
| Radiation pattern | Omni - directional |
Certifications & Protection
| Impedance (Ohms) | 50 |
|---|---|
| Shakespeare Limited Warranty | 2 years |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
