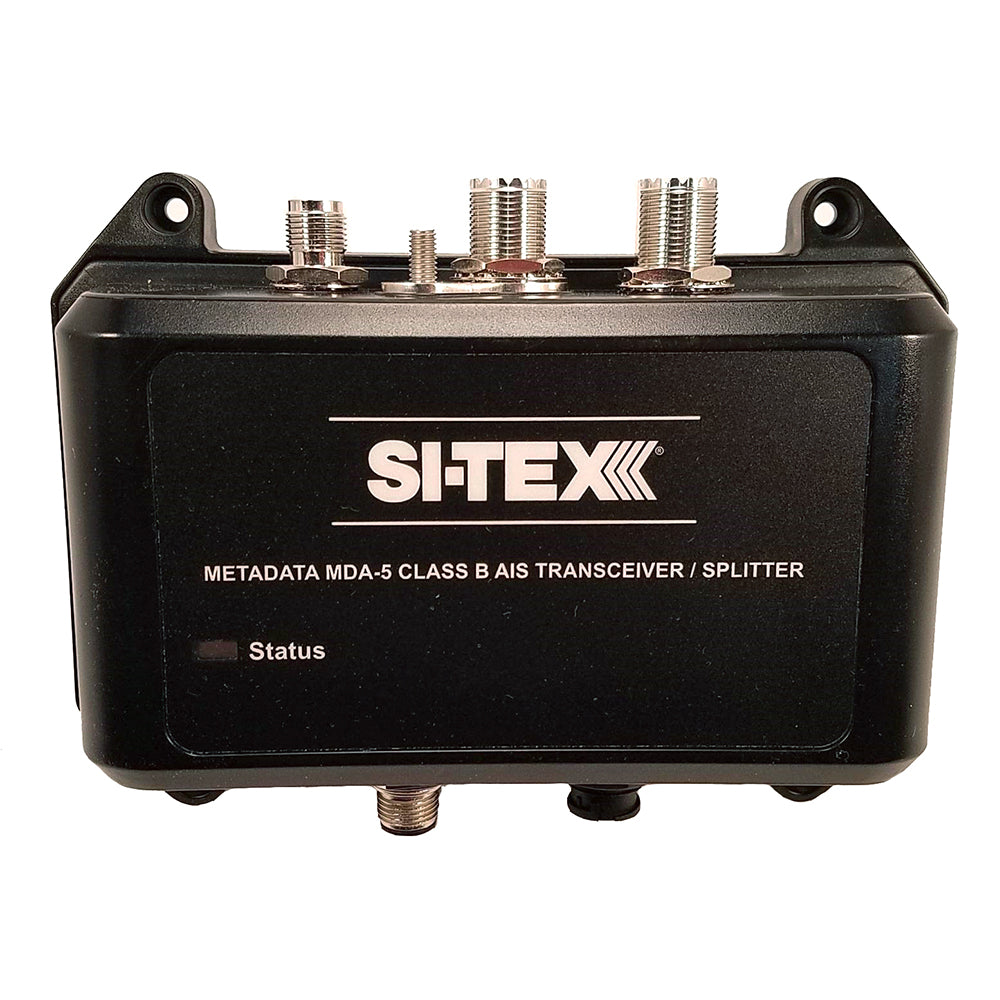

SI-TEX MDA-5H Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter (w/o Wi-Fi)
FCC-Required AIS Programming
The FCC requires all AIS units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.
Complete the AIS Programming Form
Need This Product Installed?
Need This Product Installed?
We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL
SI-TEX MDA-5H Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In...
Descripción
Descripción
MDA-5H Hi-Power 5W SOTDMA Class B AIS Transceiver with Built-In Antenna Splitter (without Wi-Fi)
MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter (Without WiFi)
Features:
- The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Mobile on the market
- 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
- SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don't have network priority.
- NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
- Built-In GPS & GLONASS satellite navigation receiver
- Water Proof certified to IPX7
- Dual Receivers decodes all DSC & AIS messages, including MOB & SART
- Ultra-power efficient
- IEC-62287-2, FCC, and USCG certified
- 2 Year Warranty
Specifications
Specifications
Identification
| MPN | MDA-5H |
|---|---|
| Barcode | 010407510712 |
Electrical
| Transmitter Output Power | 5 Watts |
|---|---|
| Input Voltage | 9.6-31.2 VDC |
| Current Draw | 220mA average power consumption |
General
| Note 1 | VHF Antenna Connector SO-239 UHF |
|---|---|
| Note 2 | GPS Antenna Connector TNC |
| Note 3 | Weight 0.8 lbs. |
| Integrated zero loss VHF antenna splitter | no second antenna needed |
Performance
| Frequency Range | 156.025-162.025 Mhz |
|---|---|
| Operating Temperature Range | -25C to +55xC |
Certifications & Protection
| Ingress Protection | IP67 |
|---|
Physical
| Dimensions (transceiver) | 6.8" W x 5.0" H x 2.0" D |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
