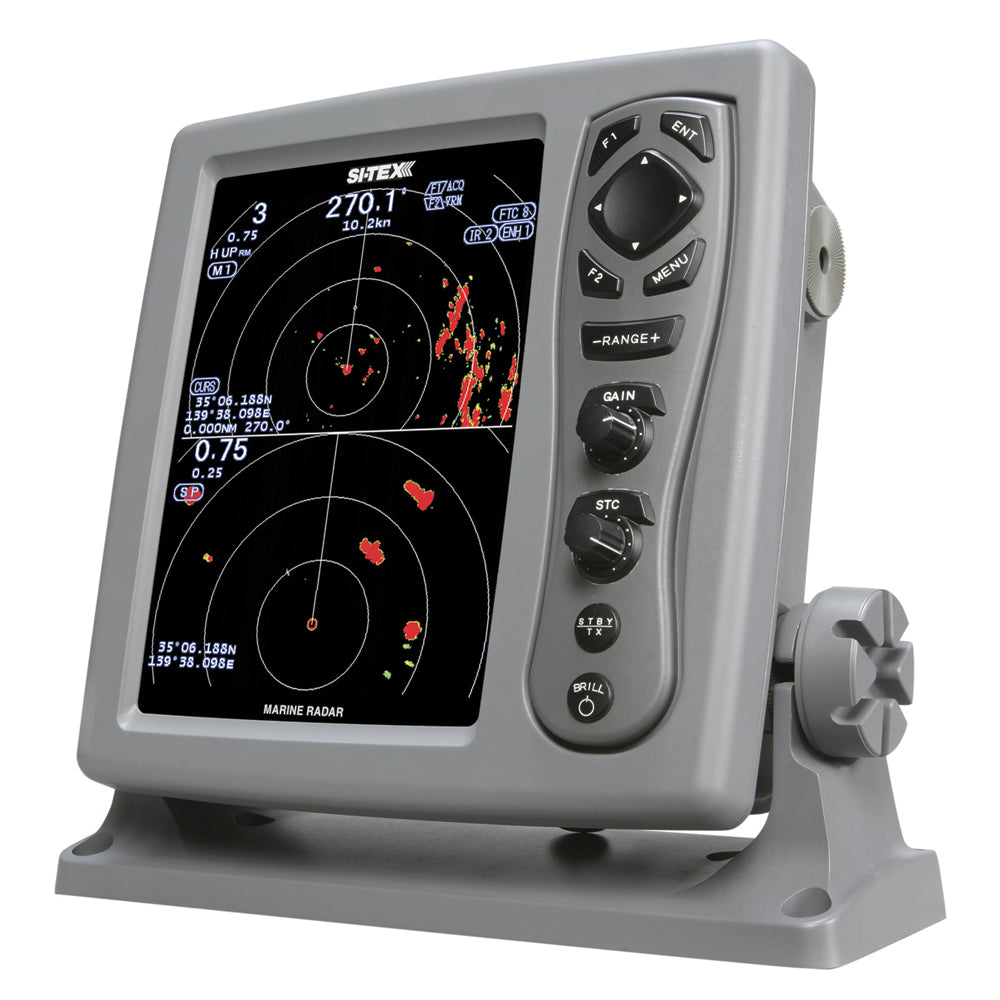

SI-TEX 8.5" Color LCD Radar w/4kW Output - 1/16-36nm Range - 25" Radome

8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" Radome

SI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

• It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets
• Radome: 4kW, 36NM, 25" Display
  • Brilliant 8.4" color LCD daylight viewable display
  • 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
  • True-color radar feature displays echoes in different colors depending on signal strength
  • The real-time presentation offers smooth movement as bearing changes
  • The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets:
    • 48 RPM
    • 24 RPM (Requires 24 Volt DC input)
  • Selectable range scales from 1/16 NM
  • Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
  • Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
  • RGB output for connecting (2) optional external monitors
  • Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC
  • Built-in flush mounting system makes installation easy
  • All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
  • Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
    • Monitor a nearby buoy and a far off island at the same time
  • True Trail function clearly identifies moving targets from stationary targets
  • The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
  • Accepts CCD camera input, to display split-screen Radar and Camera
    • Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
  • Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets
  • Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
  • Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter
    • This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention

In The Box:

Package Dimensions:

27" x 27" x 10"

Available Method: Ground

* ALL WARRANTY IS THROUGH MANUFACTURE *
