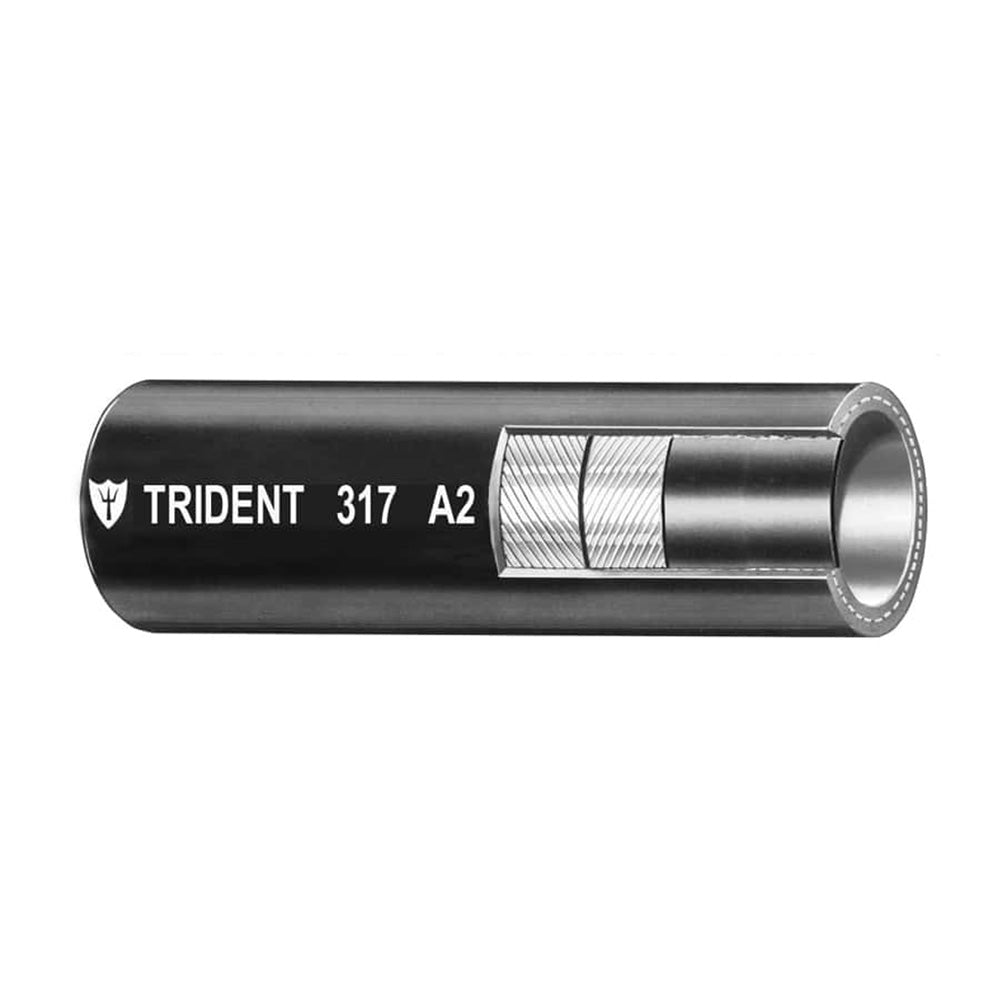

Trident Marine 5/8” A2 Fuel & Vent Line Hose - Black - Sold by the Foot

5/8” A2 Fuel & Vent Line Hose - Black - Sold by the Foot

Trident 5/8” ID A2 Fuel Hose is a gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot
• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for vent and diesel distribution
• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube: NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: Sold by the Foot

Specifications:

• Inner Diameter: (inch) 0.625" / (mm) 15.9
• Outer Diameter: (inch) 0.960" / (mm) 24.4
• Burst Pressure: (psi) 200 / (mpa) 1.38
• Working Pressure: (psi) 50 / (mpa) 0.34
• Bend Radius: (inch) 3" / (mm) 76.2
• Weight: (Lb./100ft.) 25.84 / (Kg/m) 11.72

*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted & CE certified.

In The Box:

Package Dimensions:

6" x 1" x 1"

Available Method: Ground

• Quick Guide

* ALL WARRANTY IS THROUGH MANUFACTURE *
